ASSEMBLY

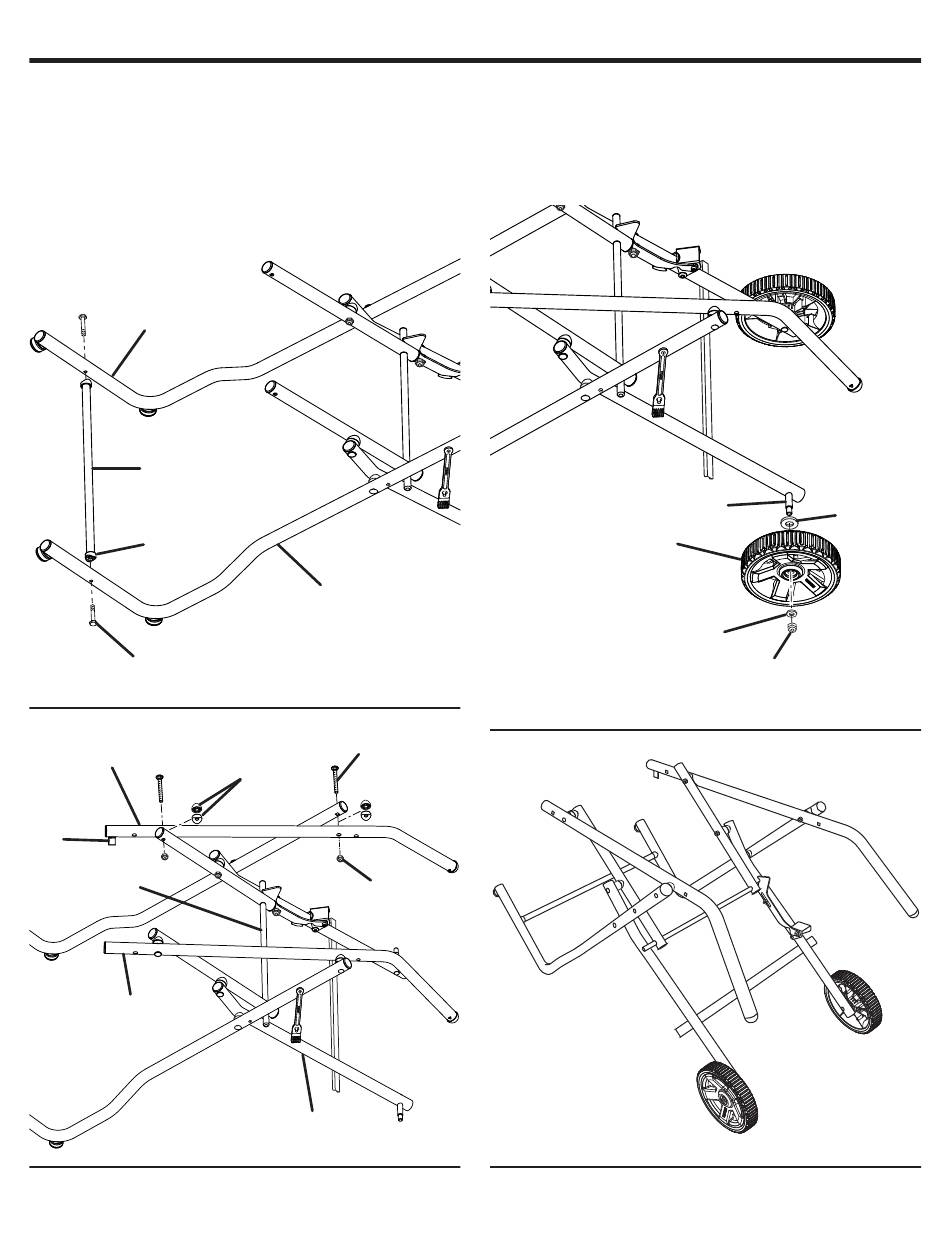

 Place a large spacer over the end of the lower brace.
 Insert a hex bolt through the bottom of the right outer
tube, the large spacer, and into the lower brace. Tighten
securely. Repeat for the other side.
 With the curved ends turned downward, secure the up-
per tubes to the WSUV stand using carriage bolts, small
spacers, and nuts.
RIGHT
OUTER TUBE
LOWER
BRACE
LARGE
SPACER
HEX
BOLT
RIGHT
UPPER TUBE
TAB
CENTER
BRACE
LEFT
UPPER TUBE
LEFT
OUTER TUBE
CARRIAGE
SMALL
BOLT
SPACERS
NUT
INNER LEG
ASSEMBLY
NOTE: The upper tube with the tab should be installed
on the right.
 Slide a large washer, wheel, and small washer onto an
axle. Secure in place using nut. Repeat with the second
wheel.
Fig. 12
Fig. 13
14 — English
AXLE
WHEEL
SMALL
WASHER
NUT
LARGE
WASHER
Fig. 14
