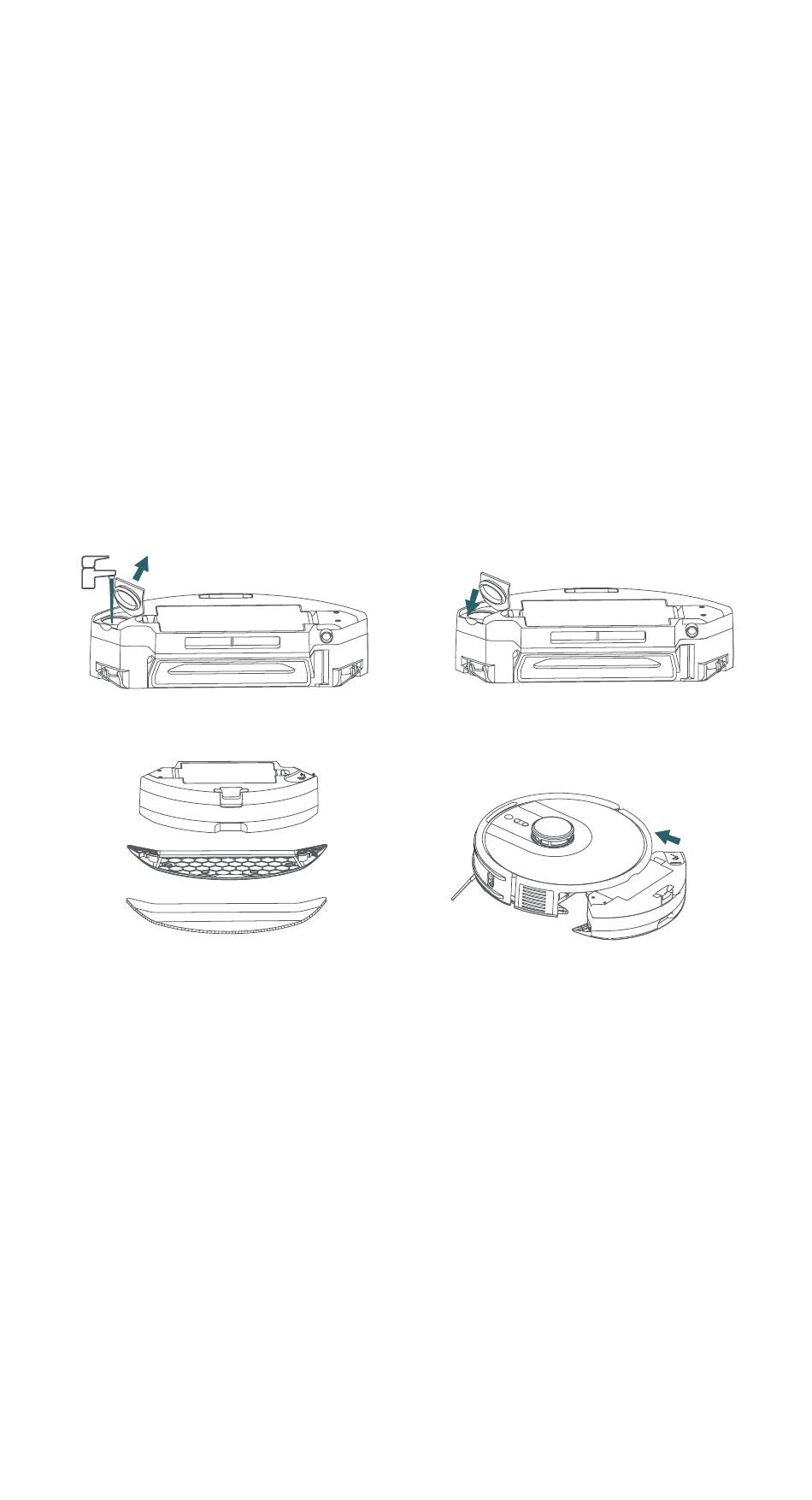

Install integrated water tank
and dust box
Warm tips:
- In order to prolong the service life of the water tank, it is
recommended to use purified water or soft water.
- Do not use the mopping function on the carpet.
- After mopping, please empty the water tank in time and remove
the mop holder.
- After the mop holder is installed, the Robot will work as sweeping
& mopping together. Suction power defaulted to mute level and
can't be adjusted manually.
- When the mop holder is not installed, the Robot will work as
sweeping modes, vacuum and sweep without mopping.
Open the cover and fill with
the water tank with water
Install the mop holder and mop cloth
Use the magnetic strip (optional)
The magnetic strip can be used to set the area
where the Robot is not allowed to enter, such as pet
food plate or bed, and can prevent the robot from
entering some rooms, when necessary, especially
the carpet area when mopping the floor.
Step 1: Select the area where you don't want the
Robot to enter
Step 2: Measure the length and width of the area,
and then cut the magnetic strip to a suitable length.
12
Close the lid of water inlet cover.
(Make sure the lid close well
and no raised parts)
Press & hold the release key and
insert the integrated water tank
& dust box
