Chainsaw ALL-ROUNDER E-100 UC
Please check that the chainsaw and the battery are clean and dry.
Place the battery in the battery compartment and secure it. Check that the battery is properly
inserted in the compartment: if properly placed, it will make a „click" sound. To disconnect the
battery from the chainsaw body, press the two side buttons and pull towards yourself.
Disconnect the power supply before the following operations:

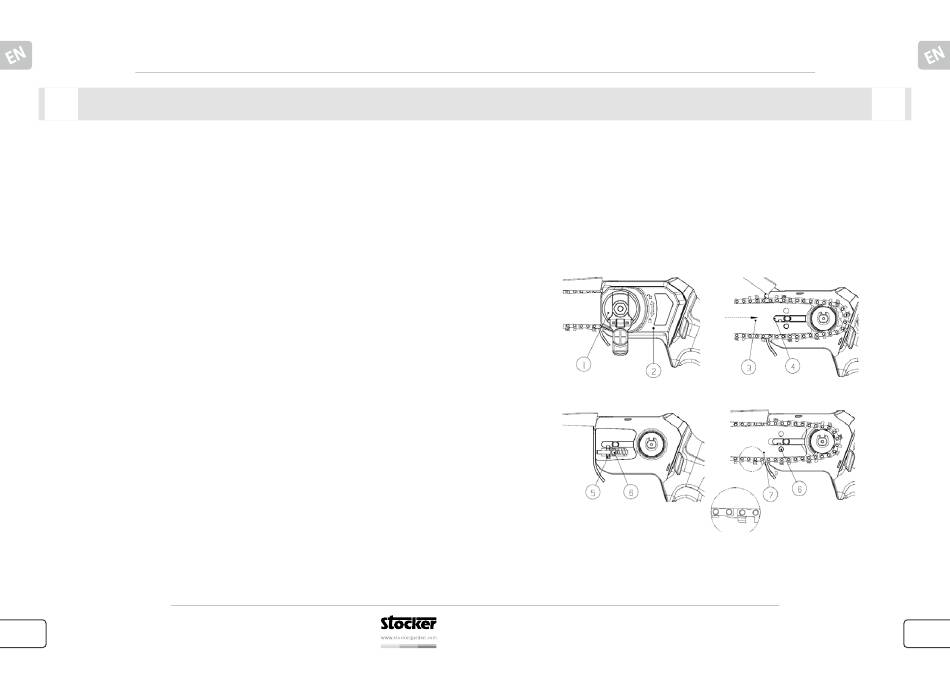

Fitting the chain and bar
1. Turn off the chainsaw and disconnect the battery.
2. Rotate the pinion cover quick release handle „1" anticlockwise until the pinion cover „2"
can be removed.
3. Remove the pinion cover „2"
4. Insert the chain into the groove of the bar. Follow the arrow on the sprocket for inserting
the chain teeth. Then hang the chain on the sprocket by aligning the bar fixing hole with the
locking pin „6".
Note: You can use the front and back of the guide „7" and the marked one can be on the
front or back.
5. Press down on the bar, the button of the locking pin „5" will be pressed down and automa-
tically push „6" the bar to the appropriate position and tension the chain.
6. Cover the pinion cover and lock by turning the handle clockwise.
Removing the chain and bar
1. Rotate the nut „1" anticlockwise until the pinion cover „2" can be removed.
2. Remove the pinion cover.
3. Push the bar in the direction of arrow „3" until it closes the main body „4".
4. Lift the bar and remove it together with the chain. When the button „5" is raised, the
locking pin „6" is fixed.
174
Art. 320
Chainsaw ALL-ROUNDER E-100 UC
Assembly
Art. 320
Chainsaw ALL-ROUNDER E-100 UC
Assembly

Chain tension

The chain may loosen when the chainsaw is working. If necessary, adjust the chain tension
according to the operating specifications.
1. Turn off the chainsaw and disconnect the power supply.
2. Rotate the handle „1" anticlockwise to loosen it.
3. The chain will automatically tighten, then screw the handle „1" back on.
For further information about the product, please contact info@stockergarden.com
