Art. 320
Chainsaw ALL-ROUNDER E-100 UC

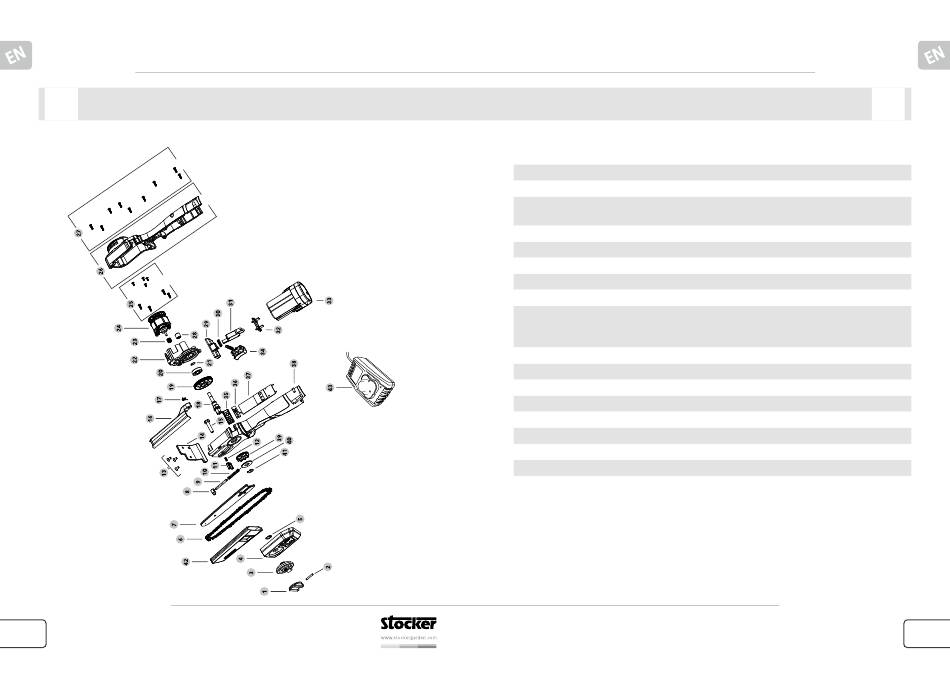

Components and spare parts

Art. 320
Chainsaw ALL-ROUNDER E-100 UC
Components and spare parts
6 320/1 Chain 32 teeth 1/4" 1,1 mm
7 320/2 Guide bar 15,5 cm / 5"
8 + 9 + 10 + 11 + 12 + 26 +
320/3 Cover set for chainsaws
27x9 + 38
8 + 9 + 10 + 11 + 12 320/4 Chain self-tensioning system
1 + 2 + 3 + 4 + 5 320/5 Chain sprocket cover
16 + 17 320/6 Protective cover 15,5 cm / 5"
33
320/7 Li-Ion Battery
43
320/8 Double battery charger
15 + 18 + 19 + 20 + 21 +
22 + 23 + 24 + 25x3 + 320/9 Geared motor with connection for blade
27x4 + 28 + 39 + 40 + 41
29 + 30 + 34 320/10 Trigger with safety botton
31 320/11 Power button
35 +36 320/12 ON/OFF button with LED indicator
32 + 37
320/13 Printed circuit board
32
320/14 Battery contacts
13x3 + 14
320/15 Front impact protection
39 + 40 + 41
320/16 Sprocket with washer
13x3 + 15 + 17 + 27x13 320/17 Complete screws kit
42 320/18 Chain sheath 15,5 cm / 5"
