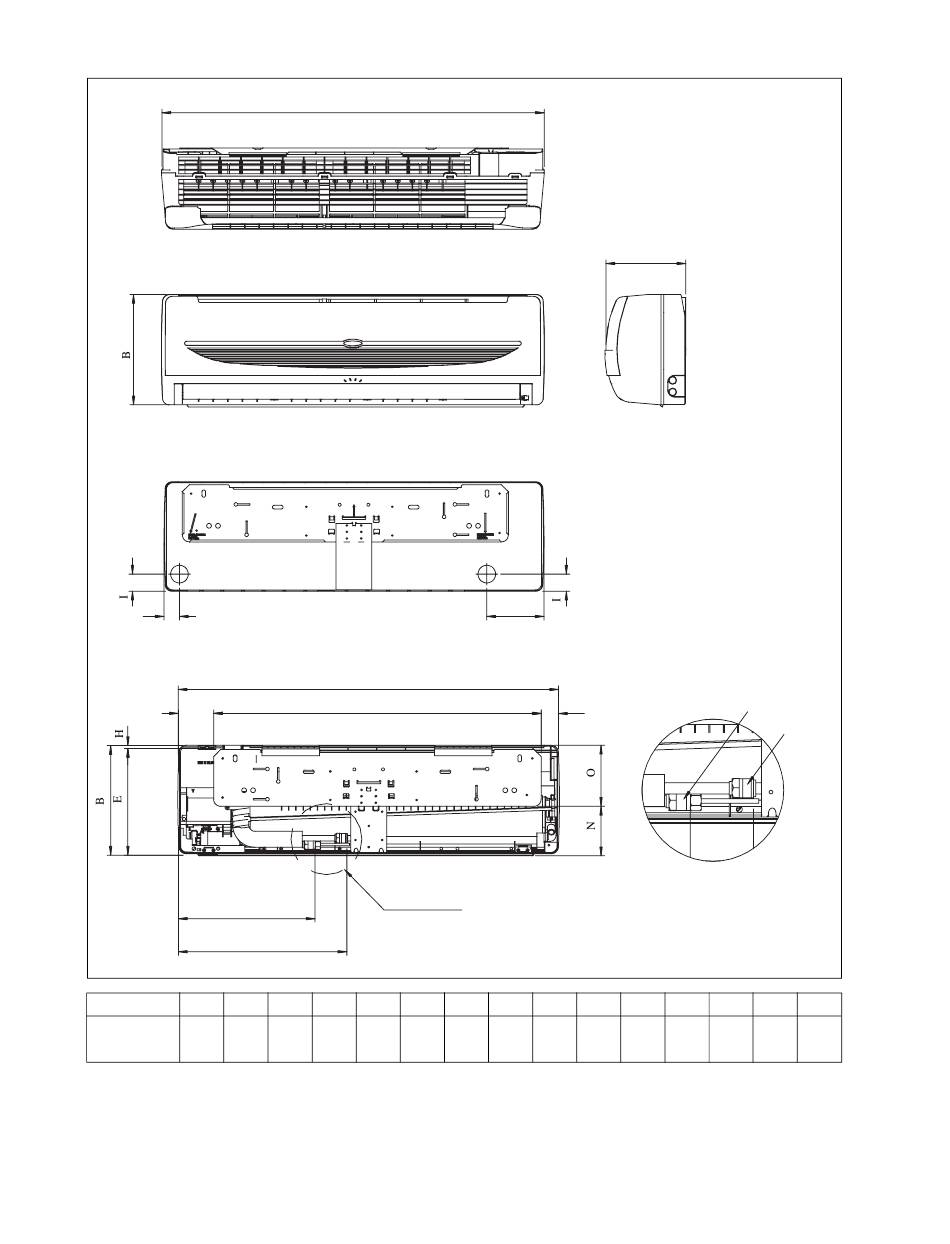

Indoor Unit
A
TOP VIEW
C
SIDE VIEW
FRONT VIEW
CENTER LINE
J M
INSTALLATION PLATE
A
WATER OUTLET
D
G
F
WATER INLET
DETAIL A
SEE DETAIL A
K
L
Dimension A B C D E F G H I J K L M N O
20 / 25GW 1060 310 220 912 294 99 51 8 48 43 369 453 160 138 160
(41.7) (12.2) (8.6) (35.9) (11.6) (3.9) (2.0) (0.3) (1.9) (1.7) (14.5) (17.8) (6.3) (5.4) (6.3)
1-2
