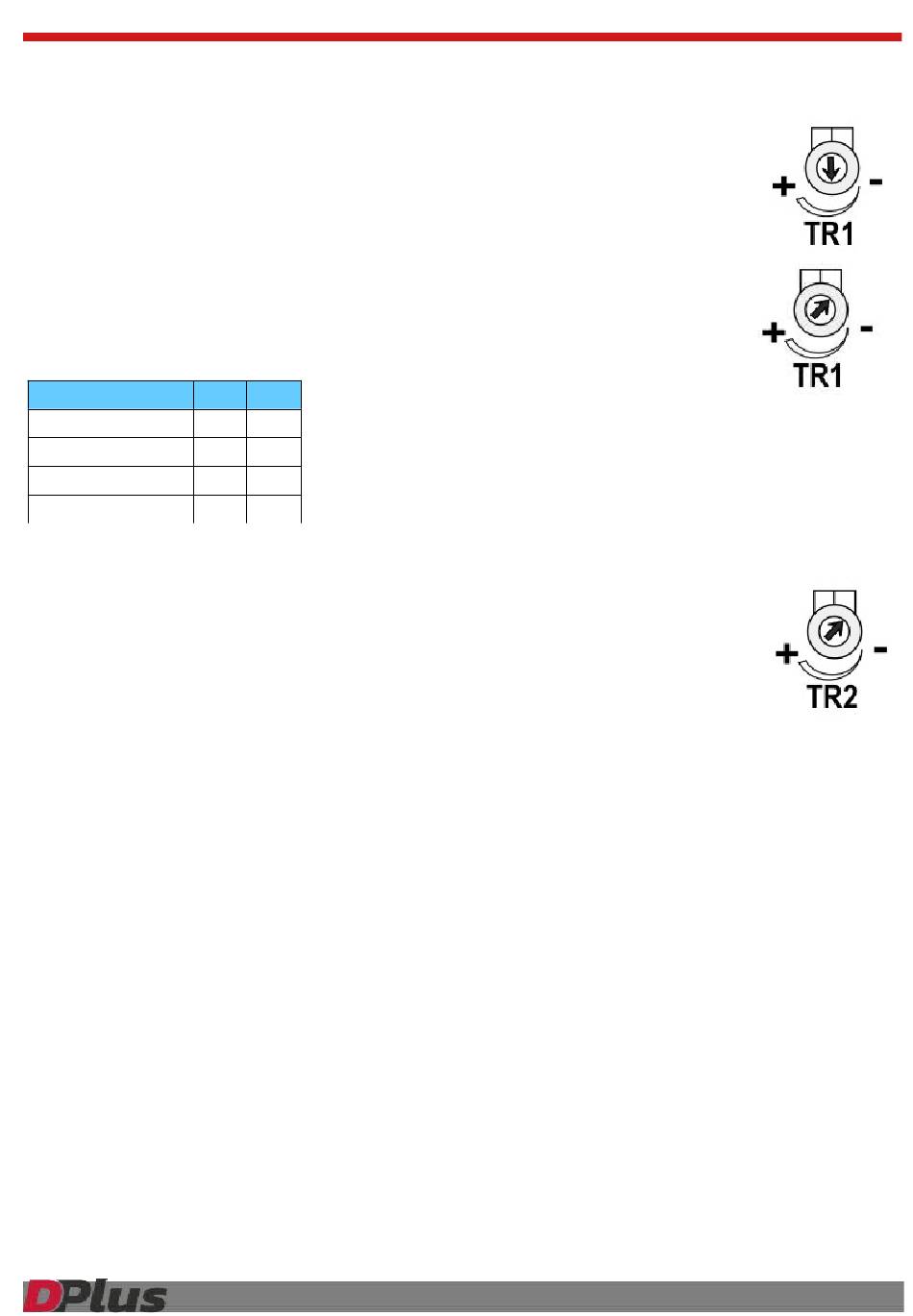

AMPERO-STOP SENSIBILITY SETTING (ANTI CRUSHING)
EN
To adjust the sensibility of the amperostop do the following :
Before programming stroke :
•
◦ Set the dip switch N ° 2-3 (look table)
◦ Adjust the trimmer TR1 in halfway
Program the stroke (see nex paragraph)
•
◦ Adjust trimmer TR1 so that the sensibility of the amperostop is adequate to the proper functioning of
the operator
•
Increase trimmer toward + to provide more strength to the operator and less sensibility to the
intervention of the amperostop
Increase trimmer toward - to provide less strength to the operator and more sensibility to the
•
intervention of the amperostop
Sensibility amperostop
Dip 2
100%
OFF
75%
ON
50%
OFF
25%
ON
SLOWING DOWN ADJUSTMENT
To adjust the slowing down speed :
•
◦ Before programming stroke :
◦ Open the door with OPEN button and adjust trimmer TR2, to have the required speed.
RADIO TRANSMITTERS PROGRAMMING
CODING : This control panel allows the storage rolling code .
•
PROGRAMMING: Press RF-CODE button , LED lights for 10 seconds, press the transmitter button you want to program.
programming is completed.
•
DELETING CODES: To delete all codes in memory hold RF-CODE for 10 seconds until LED begins to blink. the operation is
completed
STROKE PROGRAMMING -
Press OPEN button, bring the door to the desired opening and adjust the opening limit switch.
•
Press CLOSE button, bring the door to the closure. (NOTE : If connected, adjust the closure limit switch)
•
Press PROG button for 2 seconds, LED blinks.
•
Give a START impulse from button or radio transmitter, the door starts opening fast
•
Give a second START imulse when you want to start the slowing down in opening, the door stops once arrived to the opening
•
limit switch.
With automatic closure inserted, wait the desired time with the door open.
•
Give a START impulse, door begins to close in slowing down
•
Give a second START impulse, door begins to close faster.
•
Give a third START impulse when you want to start the slowing down in closing
•
Once arrived in closure the door memorizes the closed position.
•
Dip 3
OFF
OFF
ON
ON
WITH SLOW DOWN IN START CLOSING (DIP SWITCH 7 ON)
