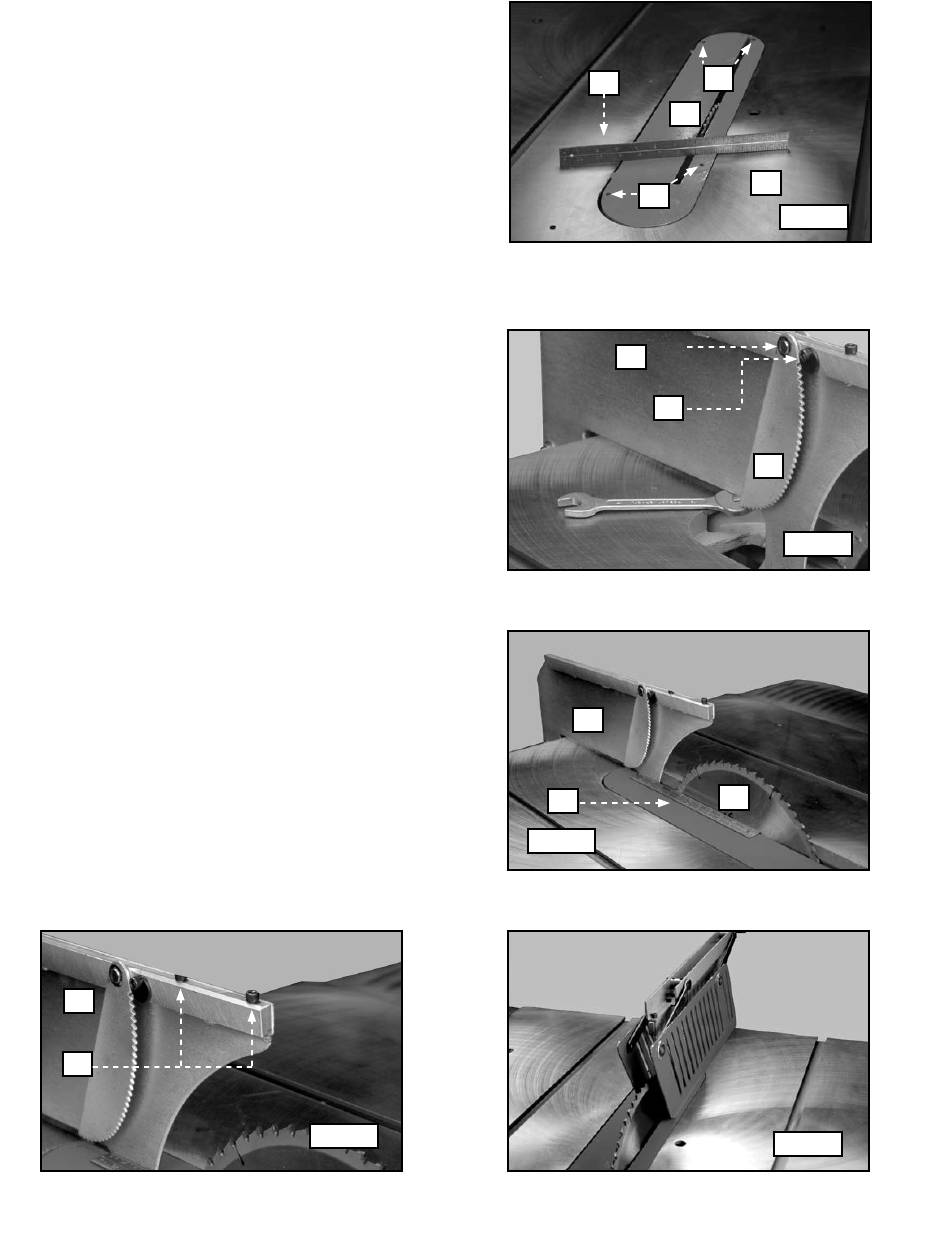

6. Lower the blade and attach the table insert (A) Fig.
16 to the saw table. Use a straight edge (B) to see if
the table insert (A) is level with the table surface (C).
Level the table insert by turning the necessary hex
bolts at (D).
7. Use the arbor wrench as a spacer to adjust the
height of the anti-kickback finger (A) Fig. 17. Place
the wrench under the anti-kickback finger, loosen the
screw (B) and adjust the cam (C) so that the anti-
kickback finger (A) is pointing to the rear and not
touching the table. Adjust the other kickback finger
in the same manner.
IMPORTANT: Rotate the blade-beveling handle until
the blade is at the 45° bevel position. Check the anti-
kickback finger to see that it is not touching the table.
8. Use a straight-edge (A) Fig. 18 to see if the splitter
(B) is aligned with the blade (C). Tighten the mounting
bolts.
9. Remove the two bolts (A) Fig. 19 from the top of the
splitter (B) Attach the guard basket assembly Fig. 20
to the splitter with the two bolts.
B
A
Fig. 19
12
B
A
d
B
C
B
A
Fig. 18
d
C
Fig. 16
A
Fig. 17
C
Fig. 20
