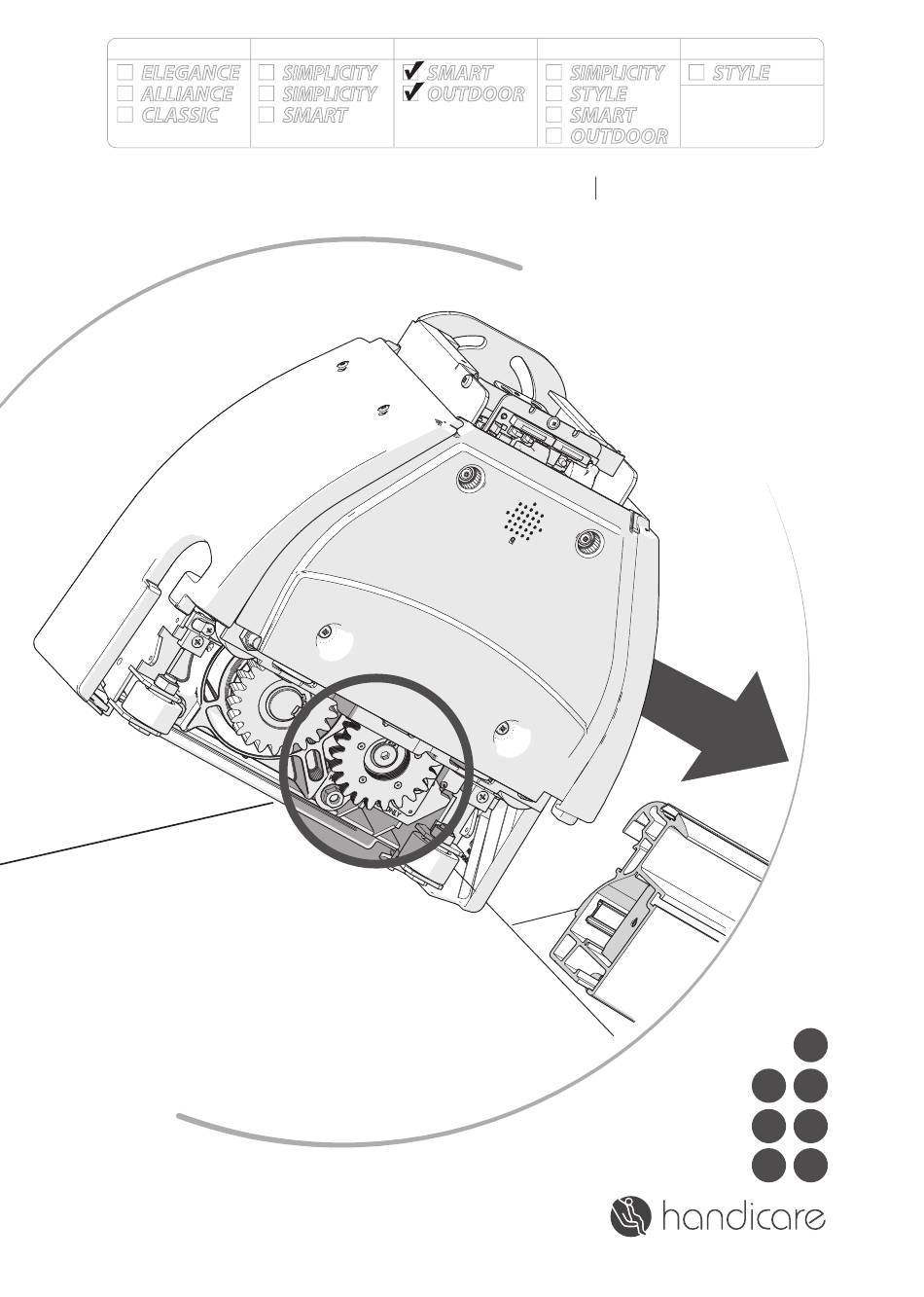

- Página 1 FREECURVE 1000 4000 1100 ELEGANCE SIMPLICITY SMART SIMPLICITY STYLE ALLIANCE SIMPLICITYL OUTDOOR STYLE CLASSIC SMART SMART OUTDOOR HANDICARE 1000 I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE HANDED VERSION INDEPENDENT OSG TEST...
- Página 2 IND_OSG TEST USED TOOLS OSG GEARWHEEL SWITCH 3 mm OSCILLATOR SPRING 1 IND_OSG TEST INSTRUCTION...
- Página 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see attachment of the installation manual). General required knowledge can be found in the 1000 Technical Manual. The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. The OSG assembly is a component of gears, cams, and catchment pockets.
- Página 4 IND_OSG TEST 3 IND_OSG TEST INSTRUCTION...
- Página 5 EXPLANATION [4] Accelerate the rotation of the gear in a counterclockwise direction with your forefinger{A}. The oscillator will engage and lock the OSG gear as shown{B}. [5]Rotate slowly in the opposite direction to free the oscillator. [6]Test with a multi meter both microswitch terminals for continuity{A}. Depress the microswitch while probing continuity and listen for interruption of continuity{B}.
- Página 6 IND_OSG TEST (RE)INSTALL THE LIFT SEE MANUAL AA30068 3 ft 0,9 m 5 IND_OSG TEST INSTRUCTION...
- Página 7 EXPLANATION [7](Re)install the lift (see the installation manual). [8]Disconnect the 9-way seatloom on the HAN125 PCB{A}. Connect the supplied OSG test connector{B}. [9]Turn on the lift{A}. Drive the lift so that it is at least 3 ft(0,9 m) from a boarding point{B}. [10]Remove the lower side cover (for a RH lift: upper side cover) of the power pack.
- Página 8 IND_OSG TEST 7 IND_IND_OSG TEST INSTRUCTION...
- Página 9 EXPLANATION [11]Fit a 3 mm flat screwdriver in the acces hole of the OSG (access RH on top, access LH on bottom of power pack frame). [12]Maintaining a light pressure on the OSG activation lever from underneath the power pack{A}, drive the lift DOWN using the remote control until the OSG is activated{B}.
- Página 10 IND_OSG TEST 9 IND_OSG TEST INSTRUCTION...
- Página 11 EXPLANATION [15]Remove the screwdriver from the OSG assembly and reinstall the side cover. [16]Turn off the lift{A}. Use the hand winder to move the lift up a short distance to release the OSG{B}. [17]Refit{A} and fasten{B} the upper cover from the power pack. [18]Turn on the lift.
