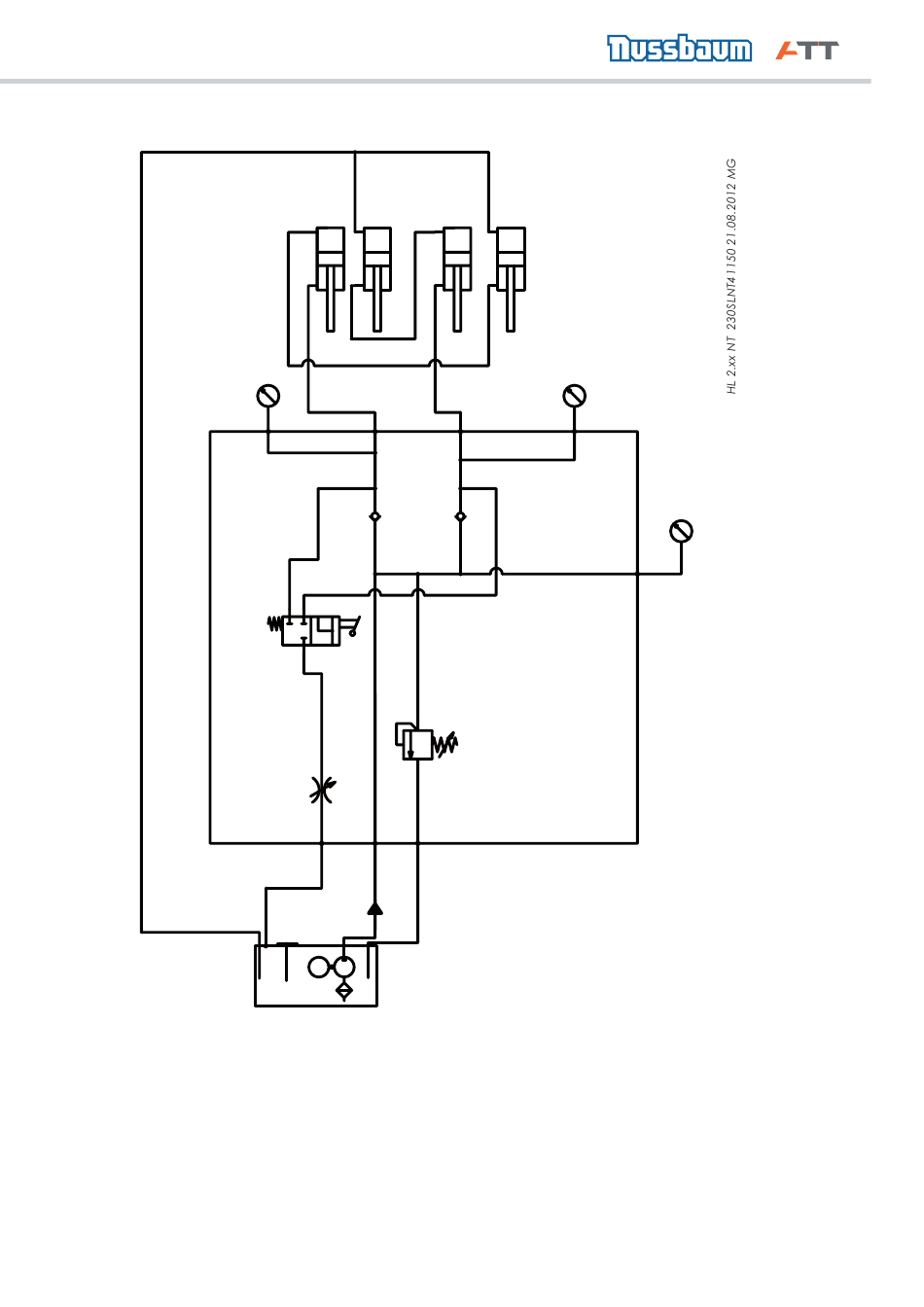

Hydraulic plan

MeA
0.1
0.1 Oil container
0.2 Suction filter
0.3 Mechanical pump 2.7 ccm
0.4 Motor 3 kW
0.5 Oil dipstick
0.6 Check valve
0.7 Hydraulic block
0.8 Pressure relief valve
0.9 Ball valve integrated in 0.7
0.10 Double-acting valve
20110002 POWER LIFT HL 2.50 NT - HYMAX HL 5000 PH OPI
K1
F2
A
B
RV2
RV1
A B
0.9
T
P
T
0.8
SB
T1 P T2
0.5
0.4
0.3
M
P
0.2
240SLH01913
980012
980340
992856
980011
130053
230SLNT41150
155211
230SLNT41150
158641
Version 1.0
K2
F1
MeB
MeP
SB Steering brake 15 l ¼"
F1 / F2 Cylinder, downstream side
K1 Cylinder, command side operating side
K2 Cylinder command side opposite side
Hydraulic hose set, complete
0.7
983629
230HL22351
230HL22301
230HL22301
230HLNT01092
