Assembly - Hanging the Fan (continued)
5

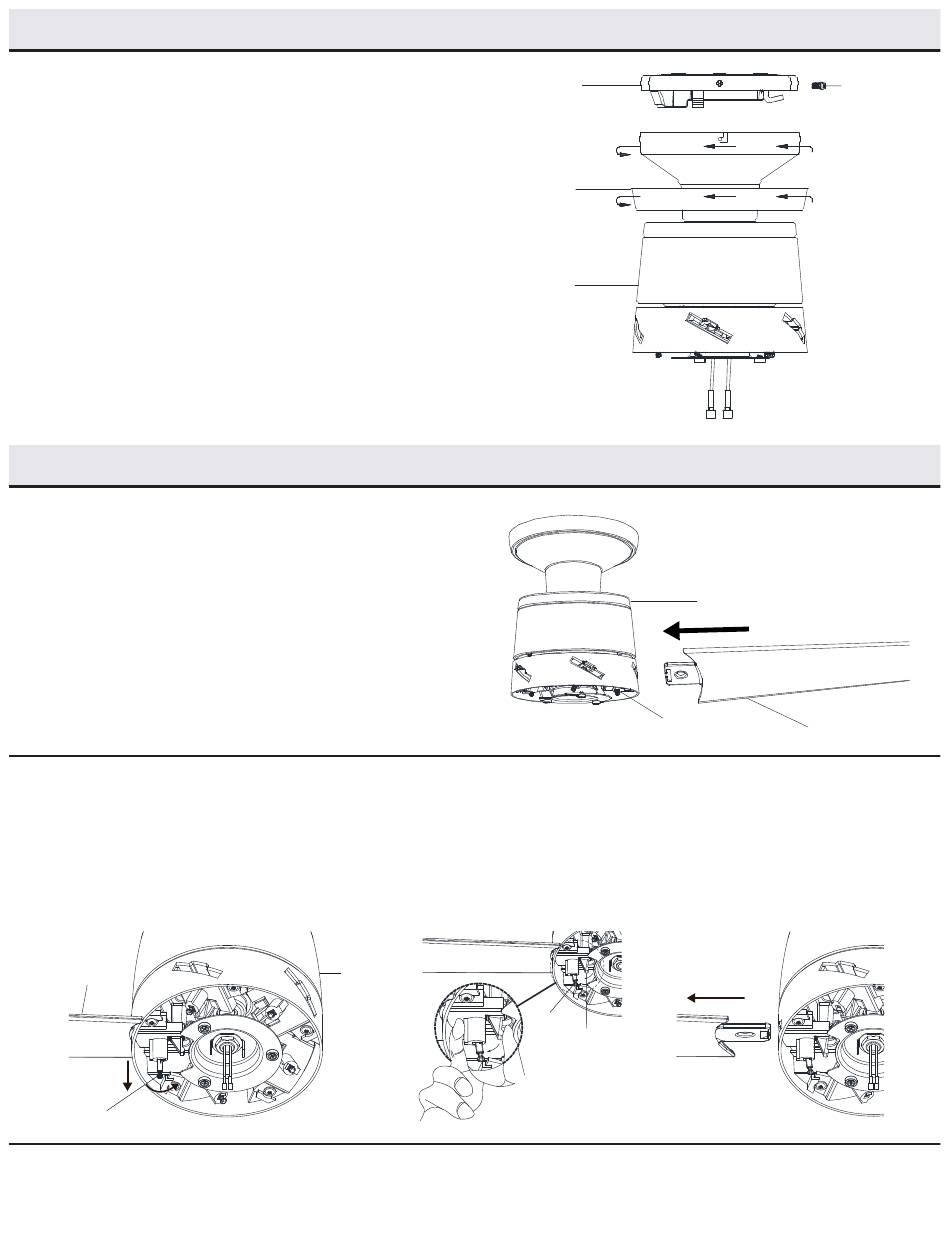

Installing the motor assembly

□
Remove two of the four screws (located diagonally from each
other) (NN) from the top of the mounting plate (A) and loosen
the other two screws (NN).
□
Align the two key slots in the top of the fan motor assembly (C)
with the two loosened screws (NN) on the mounting plate (A).
Push the fan motor assembly (C) up and turn it clockwise to
lock in the mounting plate (A). Tighten the two screws.
□
Install the two screws that were removed at the beginning
of this step into the remaining two holes and tighten the four
screws firmly.
□
Install the trim ring (B) by aligning the ring's slots with the
screws on the mounting plate (A). Rotate the ring clockwise to
lock in place.

Assembly - Attaching the Blades

1
Attaching the blades to
the motor
□
Attach a blade (D) to the fan motor assembly (C) by inserting
the blade (D) into the slot in the side of the fan motor assembly
(C) until it stops. The locking clip (LL) will click when the blade
is correctly installed. Ensure the blade is snapped into locking
clip (LL) completely by pulling the fan blade away from the
motor assembly.
□
Repeat these steps for the remaining blades (D).
2

Removing the blades from the motor

□
Pull the blade locking pin down and turn to the right. Make sure the pin is engaged with the black slot properly.
□
To remove the blade (D) from the fan motor assembly (C), squeeze the tab of the locking clip (LL) towards the direction of blades and pull the
fan blade away from the motor housing.
□
Repeat these steps for the remaining blades (D).
D
Pin
C
9
A
B
C
C
LL
Pin
Clip
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NN
