Assembly - Hanging the Fan
1

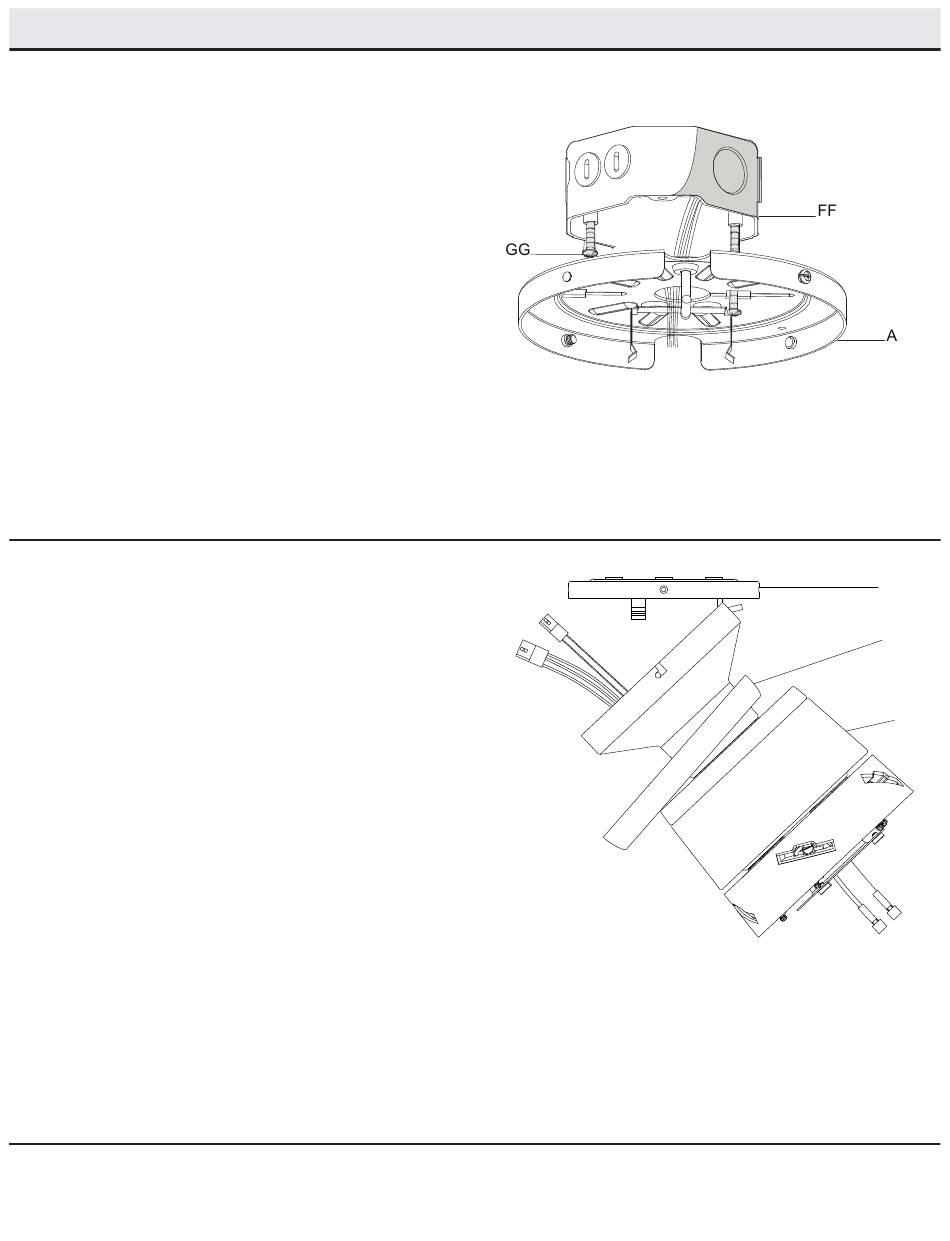

Attaching the mounting plate to the
electrical box
□
Turn the power off.
□
Loosen the two mounting screws (GG) supplied with the
outlet box, but do not remove the screws.
□
Securely attach the mounting plate (A) to the outlet box
by sliding the mounting plate (A) over the two mounting
screws (GG) supplied with the outlet box.
□
Pull the 120-volt supply wires (the black, white and ground
wires) out of the outlet box (FF) and through the hole in the
mounting plate (A) and lay them to the side.
□
Securely tighten the two mounting screws (GG).
2
Hanging the fan motor assembly
□
Attach the trim ring (B) to the fan motor assembly (C) at the
opening of the motor housing. Make sure the slots of trim
ring (B) are on top.
□
Carefully lift the fan motor assembly (C) and hang the fan
motor assembly (C) on the hook of the mounting plate (A)
by utilizing one of the holes at the outer rim of the motor
housing so that it is securely suspended.
□
Connect the wiring to your fan according to step 3 "Making
the Electrical Connections".
7
Please contact 1-800-986-3460 for further assistance.
