Assembly - Hanging the Fan (continued)
3

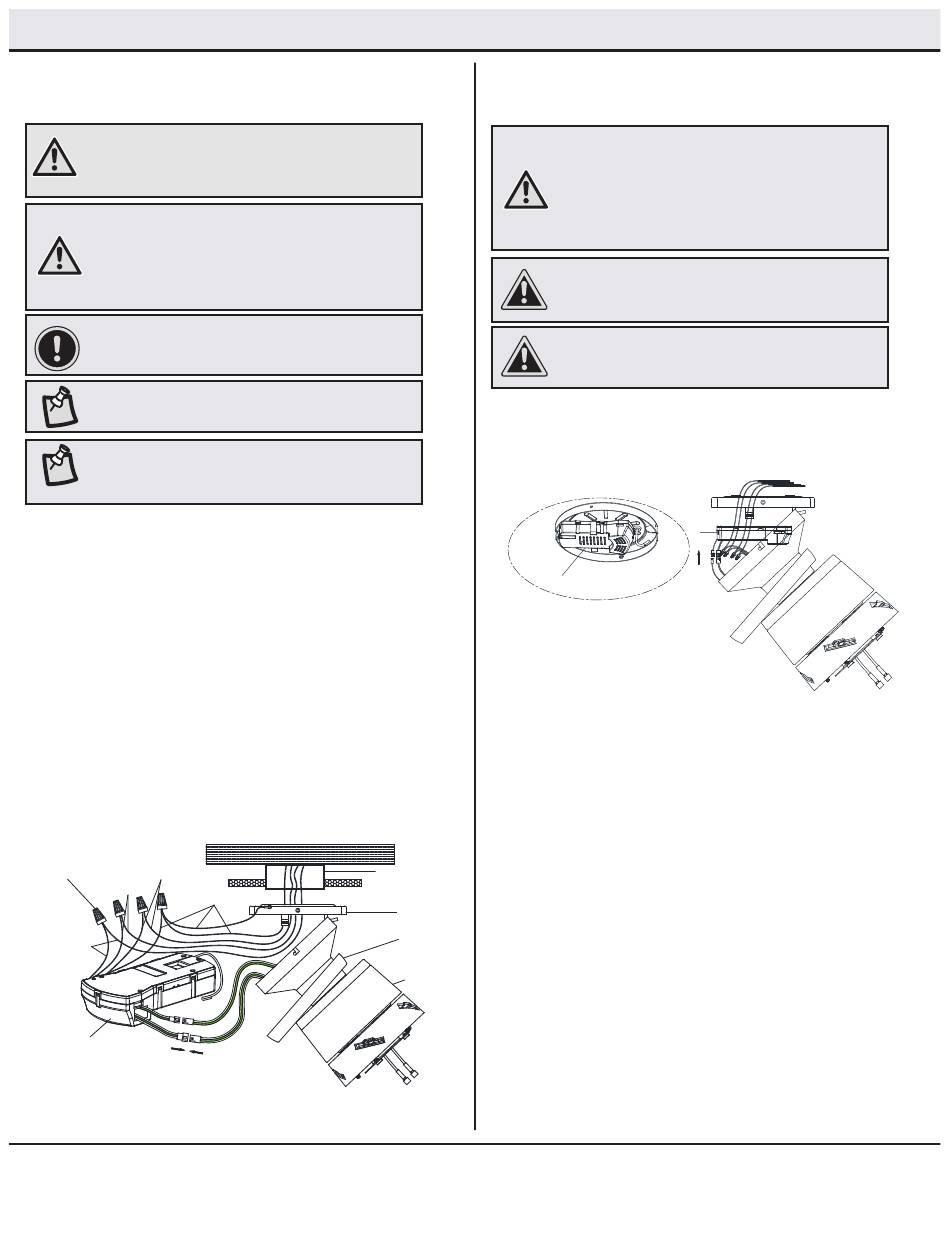

Making the electrical connections

WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge
or experience, contact a licensed electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire
to connect to the fan wiring, consult an electrician for
the proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (AA) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
NOTE: 3-wire receiver will enable independent control
of fan and light at the wall switch if house wiring has
separate household red and black power wires.
NOTE: If your house wiring does not have a red switch
wire, please connect the receiver black wire and receiver
red wire to the house black wire and secure using a
plastic wire nut.
□
Spread the wires apart so that the green and whites are one side
of the outlet box and the black wire is on the other side.
□
Connect the green fan wires to the household ground wire (this
may be a green or bare wire) using a wire connecting nut (AA).
□
Connect the receiver (F) black wire to the household black (hot)
wire using a wire connecting nut (AA).
□
Connect the receiver (F) red wire to the household red wire using
a wire connecting nut (AA).
□
Connect the receiver (F) white wire to the household white
(neutral) wire using a wire connecting nut (AA).
□
Secure each wire connecting nut using electrical tape.
□
Connect the receiver (F) to the fan by connecting the molded
adaptor plug from receiver (F) with molded adaptor from the fan
motor assembly (C) together.
AA
Black
Red
White
F
Outlet box
Green
4

Installing the receiver

WARNING: To reduce the risk of fire or electrical
shock, remember to disconnect power. The electrical
wiring must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volt, 60HZ. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are different color, have this
unit installed by a licensed electrician.
CAUTION: Do not pull on or cut the receiver leads
shorter. Do not drop or bump the unit.
□ Push the receiver (F) into the bracket on the mounting plate (A)
as shown, flat side towards the ceiling.
F
A
B
C
8
F
