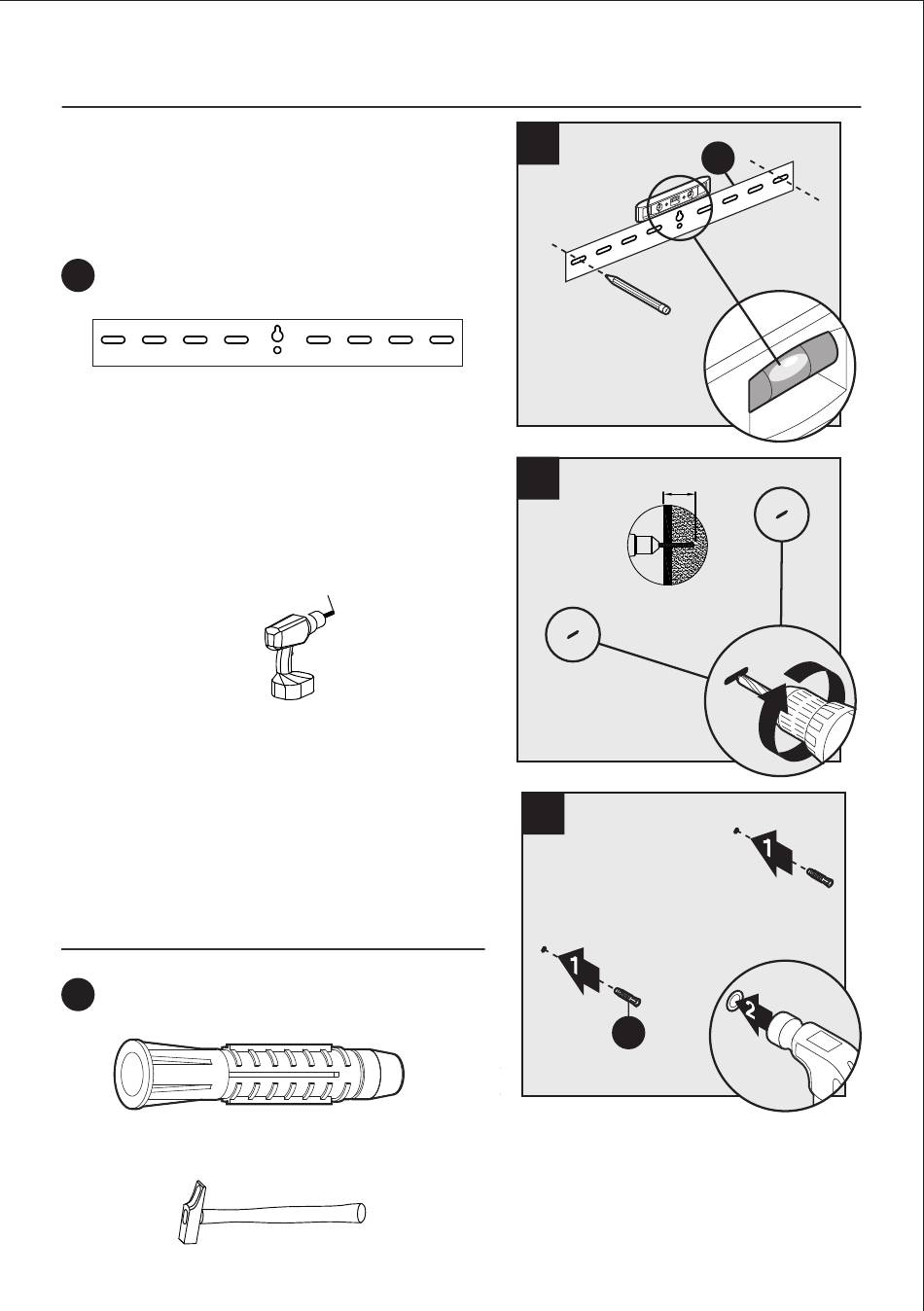

ASSEMBLY INSTRUCTIONS
Concrete Installation
11. Hold the mounting template (C) in the desired position
and use a pencil to mark two hole locations.
Note: Use a bubble level to level the mounting template
(C).
Mounting Template
C
12. Pre-drill marked 2 holes with a 3/8 in. size Masonry
Drill Bit to a depth of 2.36 in.
Masonry Drill Bit
3/8 in. (10 mm)
13. Insert two anchors (EE) into the wall and use a
hammer to lightly tap them into wall.
Hardware Used
EE 10x50 mm Anchors
Hammer (not included)
11
x1
12
2.36 in. (60 mm)
Masonry Drill Bit
3/8 in. (10 mm)
13
x2
EE
12
C
