ASSEMBLY INSTRUCTIONS
Single wood installation

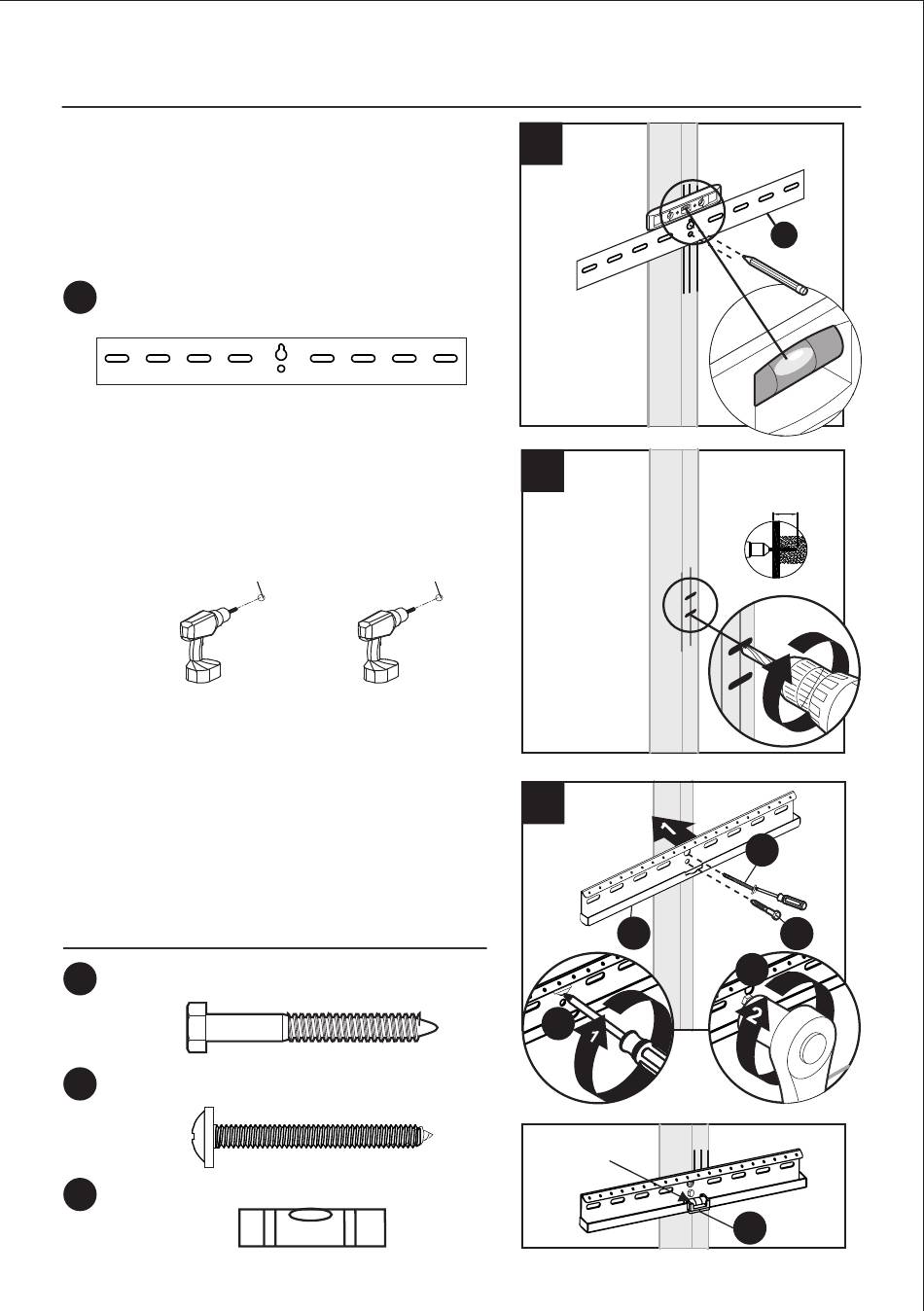

5. Hold the mounting template (C) in the desired position
and use a pencil to mark two hole locations.
Note: See image no. 5.
Note: Use a bubble level to level the mounting template-
(C).
C
6. Pre-drill marked 2 holes with a 5/32 in or 1/8 in wood
drill bit to a depth of 2.36 in.
Wood Drill Bit
1/8 in. (3.18 mm)
7a. Fix the wall plate (A) to the wall with one M7x55 mm
lag bolt (DD) using the 1/2 in. socket wrench
(not included).
7b. Tighten a supporting lag bolt (FF) for the wall plate (A)
using the Phillips screwdriver (not included).
Note: Use a bubble level (SS) to level the wall plate (A).
Hardware Used
M7x55 mm lag bolt
DD
FF
SS
Mounting Template
Wood Drill Bit
5/32 in. (4.0 mm)
Lag bolt
5
x1
6
Wood Drill Bit
1/8 in. (3.18 mm)
Wood Drill Bit
5/32 in. (4.0 mm)
7
A
x1
FF
x1
Bubble level
x1
10
C
Depth
2.36 in (60 mm)
FF
Phillips
Screwdriver
DD
DD
SS
