The WIB Radio Control 433 receiver is the fundamental element of the WIB system: it has the task of receiving the radio signal, transforming it into an electrical
signal and sending it to all the other elements connected to it via the BUS network. In this way you have a single receiver for the whole installed system: each
device will receive the signal in a safe and effective way. The antenna is to be positioned outside the structure in order to limit the interference created by the
metal. The device is compatible with the Master spa remote controls of the 433.42 MHz series.
The product can only be used with Master spa WIB systems. Use of the product other than that provided for in this manual is improper and prohibited and will void
the warranty and any manufacturer's liability. The installation of the product must be done by a qualified technician.

01. TECHNICAL SPECIFICATIONS

- Power supply
- Consumption
- Radio frequency
02. WARNINGS
02.1 Warnings for safety
Keep these instructions for future maintenance work and disposal of the product ● All the product installation, connection, programming and maintenance
operations must be carried out only by a qualified and skilled technician, who must comply with laws, provisions, local regulations and the instructions given in
this manual ● The wiring must comply with current IEC standards. The final electrical system must be created only by the electrician ● Some applications require
hold-to-run operation and can exclude the use of radio controls or require particular safety devices ● To prevent potentially dangerous situations, check the
operating condition of the roller shutter/awning regularly
02.2 Warnings for installation
Check that the package is intact and has not been damaged in transit ● A heavy knock and the use of unsuitable tools can cause the damage of the external or
internal parts of the motor ● Do not pierce or tamper with the device in any way. Do not modify or replace parts without the manufacturer's permission ● Do not
carry the device by the power cable. The product may not be used if the power cable is damaged. Do not try to replace the power cable. If the cable is damaged the
appliance must be scrapped● The power cable must be positioned in such a way that it does not come into contact with moving parts ● The power cable of the
product is suitable for indoor installation only. If installed outside, place the cable in a protective tube
02.3 Warnings for use
The appliance can be used by children under the age of 8 and by people with reduced physical, sensory or mental abilities, or without experience or the
necessary knowledge, as long as they are supervised or after they have received instructions relating to the safe use of the appliance and understanding the
inherent dangers ● Children must not play with the appliance ● Cleaning and maintenance intended for the user must not be carried out by unsupervised children

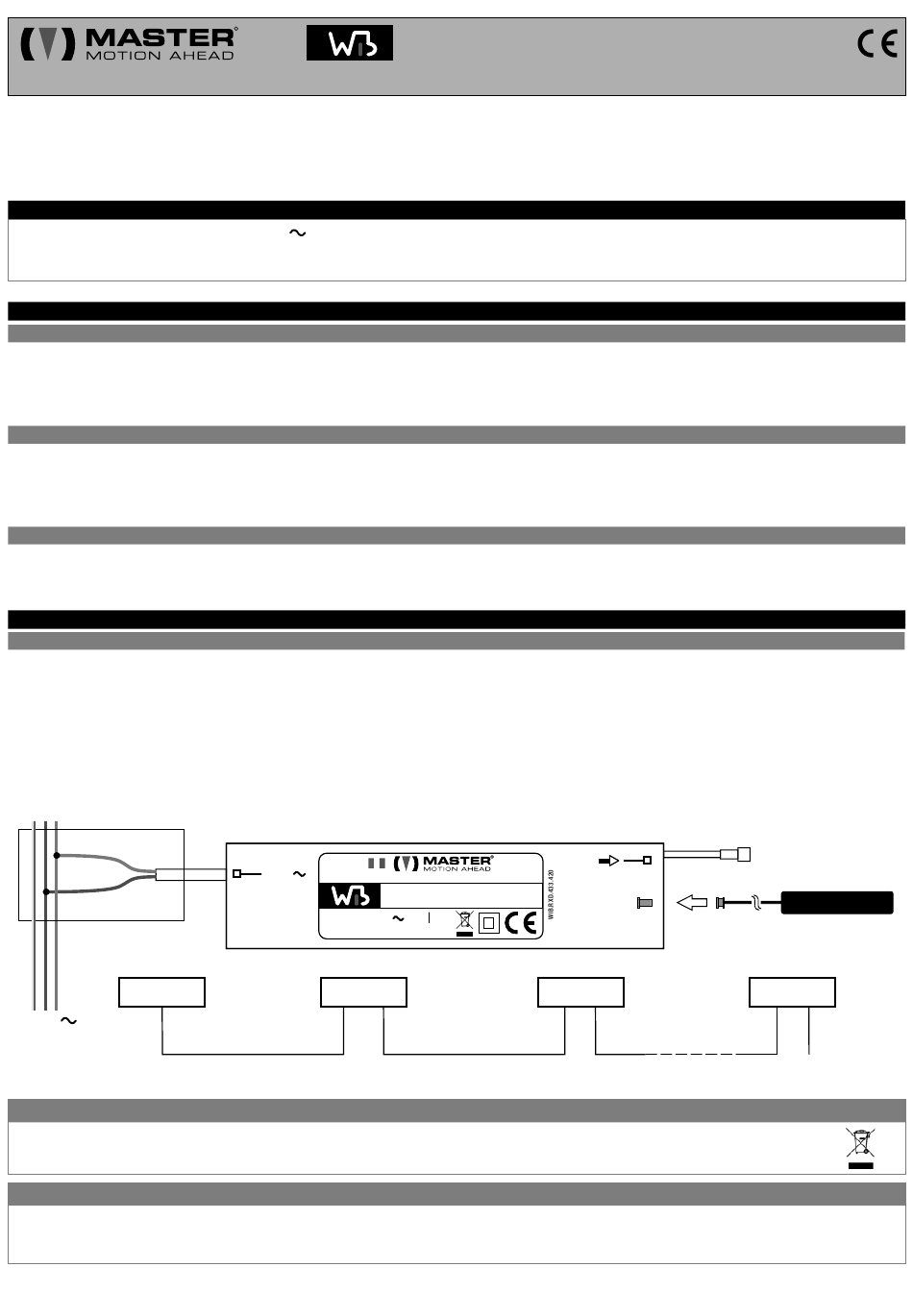

03. ELECTRICAL CONNECTIONS

Warnings
This device has been designed to work with a stable power source ● Make connections with power supply disconnected ●Check that the power supply does not
depend from electrical circuits for lighting ● Install a device upstream of the power supply network of the automation that ensures complete omnipolar
disconnection from the network, with a contact opening distance in each pole of at least 3 mm. These disconnecting devices must be provided in the power supply
network in accordance with the installation rules and must be directly connected to the power supply terminals ● The section of the connecting cables must be
proportionate to their length and to the absorption of the load
- The device must be powered at the mains voltage by connecting the
connection must take place inside a watertight box.
- The supplied antenna must be connected to the SMA connector.
- The DATA OUT cable must be connected to a DATA IN cable of a WIB device.
Neutral
Phase
Watertight box
RX
230V
data OUT
*
WIB series device
Disposal
MASTER uses packaging recyclable materials. Dispose materials on the proper containers, complying with the law in force in your locality.
This product may have substances that are polluting for the environment and dangerous for the health.
At the end of the product life cycle, carefully comply with the waste disposal rules. It is strictly forbidden to dispose the product on the domestic waste.
Notes on radio systems
It is advisable to avoid using radio systems in areas with strong interference
case advisable before installing any radio system in order to identify sources of interference. Radio systems can be used where possible disturbances or malfunctioning of the
transmitter or the receiver do not cause a risk factor, or if the risk factor is cancelled by suitable safety systems. The presence of radio device operating on the same transmission
frequency ( 433,42 MHz ) can interfere with the radio receiver of the motor and so reduce the range of the system and limit the functionality of the installation.
All products and technical specifications given in this document are subject to variation without notice. Unless previously and specifically authorised by the manufacturer, the device must be used exclusively with the
transmitters produced by the manufacturer. The manufacturer shall not be liable for damage resulting from unsuitable, incorrect or unreasonable use. All rights reserved.
