ADJUSTMENTS
DEPTH STOP ADJUSTMENTS

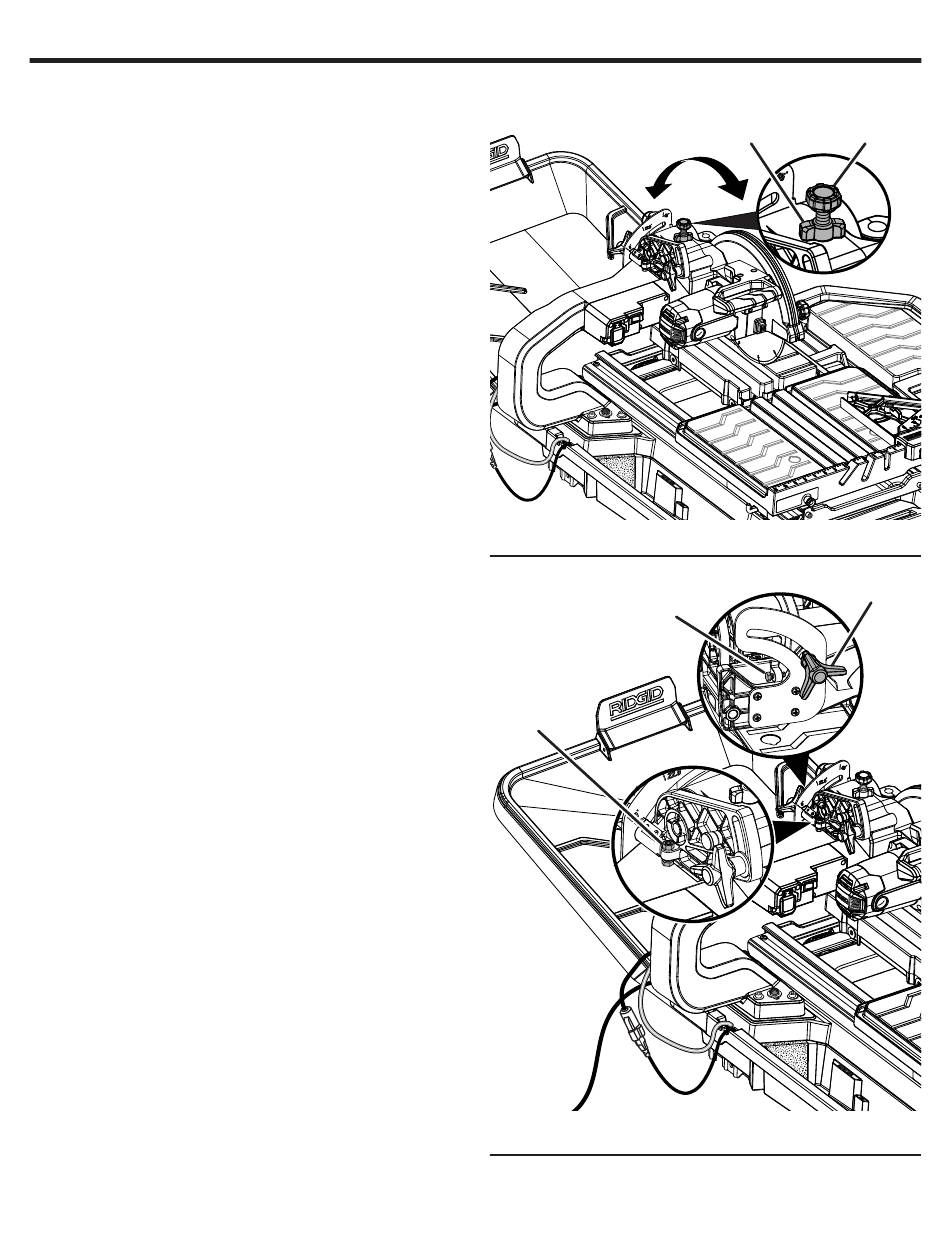

See Figure 57.
The depth stop is factory set to provide maximum cutting
capacity for the wheel provided with the saw. Make
adjustments if desired.
 Unplug the saw.
 To adjust the depth, loosen the wing nut located on the
depth stop.
 Turn the depth stop knob. Set the wheel to the correct
cutting depth (wheel just below the table surface). Lower
the cutting wheel to the table to check wheel clearance.
 Readjust if necessary.
 Tighten the wing nut.
POSITIVE STOP ADJUSTMENTS
See Figure 58.
NOTE: These adjustments were made at the factory and
normally do not require readjustment.
 Unplug the saw.
If the wheel is not perfectly vertical (0°):
 Loosen the bevel lock knob.
 Raise the motor head.
 Place a combination square beside the wheel.
 Using a wrench, turn the 0° hex bolt until the wheel is
square to the table and the hex bolt is resting on the saw
housing.
 Tighten the bevel lock knob.
If the wheel is not an exact 45°:
 Set bevel to 45°.
 Place a combination square against the wheel and set
the motor head at 45°.
 Using a wrench, turn the 45° hex bolt until the hex bolt
is resting on the saw housing.
0° HEX
BOLT
35 — English
WING
NUT
45° HEX
BOLT
DEPTH
STOP
KNOB
Fig. 57
BEVEL LOCK
KNOB
Fig. 58
