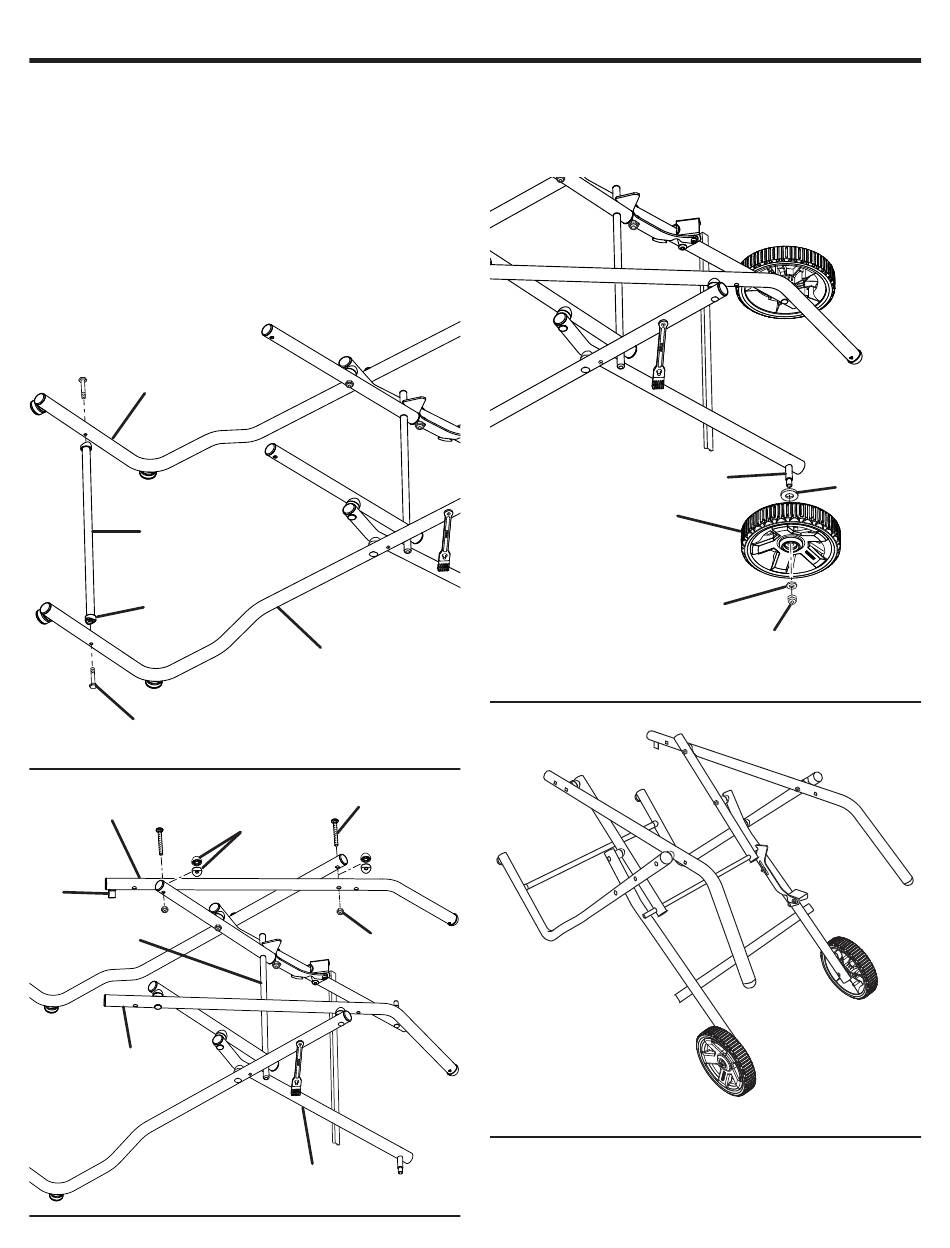

ASSEMBLY
 Place a large spacer over the end of the lower brace.
 Insert a hex bolt through the bottom of the right outer
tube, the large spacer, and into the lower brace. Tighten
securely. Repeat for the other side.
 With the curved ends turned downward, secure the upper
tubes to the WSUV
™
spacers, and nuts.
NOTE: The upper tube with the tab should be installed
on the right.
RIGHT
OUTER TUBE
LOWER
BRACE
LARGE
SPACER
HEX
BOLT
RIGHT
UPPER TUBE
TAB
CENTER
BRACE
LEFT
UPPER TUBE
stand using carriage bolts, small
LEFT
OUTER TUBE
CARRIAGE
SMALL
BOLT
SPACERS
NUT
INNER LEG
ASSEMBLY
 Slide a large washer, wheel, and small washer onto an
axle. Secure in place using nut. Repeat with the second
wheel.
