ASSEMBLY

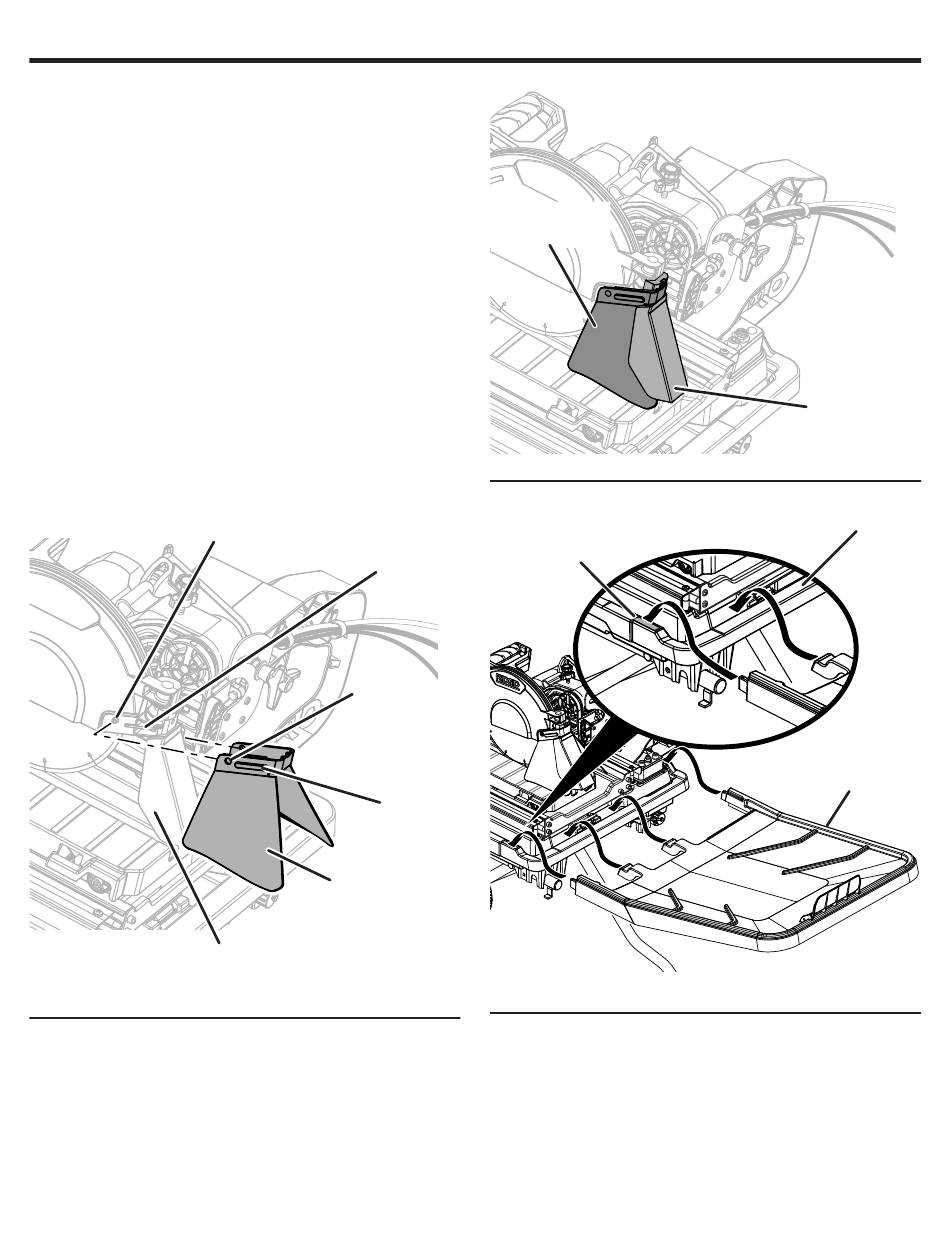

Attaching side splash guard:
 Install side splash guard over the rear splash guard.
 Insert post, located on side of cutting wheel guard,
through hole in side flap of guard.
 Settle splash guard grooves over ridges in cutting wheel
guard.
 Repeat with other side.
 After assembly is complete, pull rear splash guard
outward so flaps rest over side splash guard.
INSTALLING TH E REAR WATER TRAY
EXTENSI ON
See Figure 29.
 Standing at the back of the saw, hold the rear water tray
extension with the tray tabs pointing toward the slots in
the water tray.
 Tilt the tray up and slide the tray tabs into the slots.
 Once the rear water tray extension slides into place, lower
until the tray hooks fit underneath the base.
POST
SPLASH
GUARD
RIDGE
HOLE
GROOVE
SIDE SPLASH
GUARD
REAR
SIDE SPLASH
GUARD
SLOT
Fig. 27
21 — English
REAR SPLASH
GUARD
Fig. 28
WATER TRAY
FRAME
WATER TRAY
EXTENSION
Fig. 29
