MACHINE DESCRIPTION

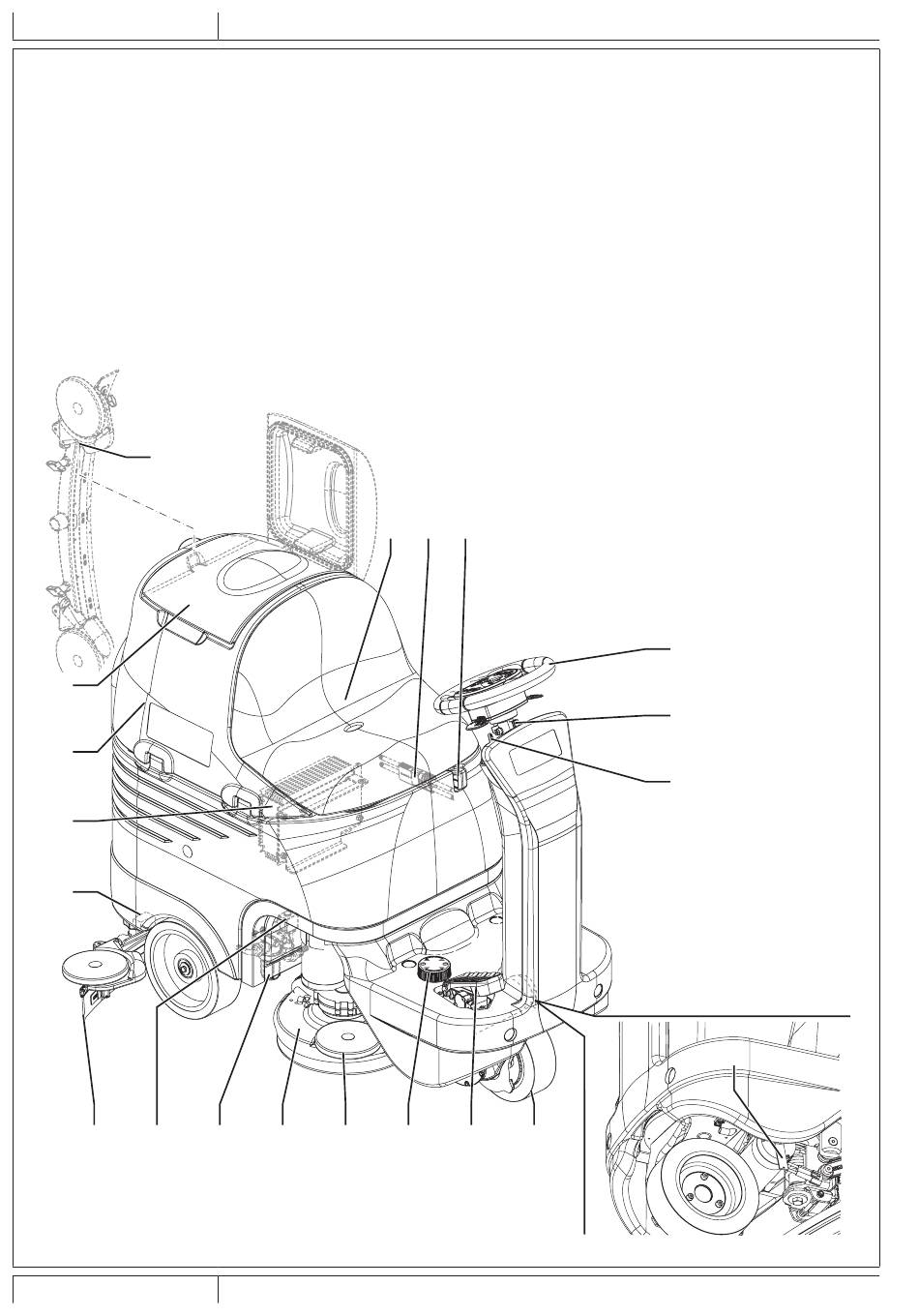

MACHINE STRUCTURE

1. Steering wheel with control panel (see the following
paragraph)
2. Steering wheel height control lever
3. Ignition key
4. Drive pedal
5. Heel support height adjustment
6. Front steering, driving and braking wheel
7. Electromagnetic brake unlocking lever
8. Emergency push-button
9. Battery connector
10. Brush/pad-holder deck
15
20
19
16
14
18 13
6
INSTRUCTIONS FOR USE
17
12 10 11
SC3000 26 D - 9098827000
11. Bumper wheel
12. Solution filter
13. Solenoid valve
14. Solution/clean water tank opening/closing valve
15. Squeegee hook
16. Battery charger
17. Seat
18. Squeegee blades assembly
19. Dumping recovery tank
20. Recovery tank cover
9 8
5 4 6
1
2
3
7
