ENGLISH
4.8 FIRST SELF INSTALLATION MODE
At the first machine start up will be performed a self installtion .The aim
of this procedure is to avoid the manual connections of wires on the boards
after the filling of the Hydraulic cyrcuit.
For Espresso single boiler:
When the distributor is started up the airbreak is filled with water.
When the floater is in the upper position the machine will start loading water
automatically and this will go on until 200cc of water are counted by the fan
(then water will be supplied via a mixer throughout the procedure).
The procedure will be carried out with resistance off.
At the end a date will be shown on the display.
For Espresso Double boiler
When the distributor is started up the airbreak is filled with water.
When the floater is in the upper position the machine will start the automatic
installation process and following loading of both boilers (then water will be
supplied via a mixer and by the 3-way Coffee EV throughout the procedure).
The procedure will be carried out with resistance off.
At the end a date will be shown on the display.
For Instant boiler :
When the distributor is started up the airbreak is filled with water.
When the floater is in the upper position at least for 5 consecutive seconds
the machine will open an instant electrovalve and start a water loading
cycle in the boiler (then water will be supplied via a mixer throughout the
procedure)
The procedure will be carried out
with resistance off.
At the end a date will be shown on
the display.

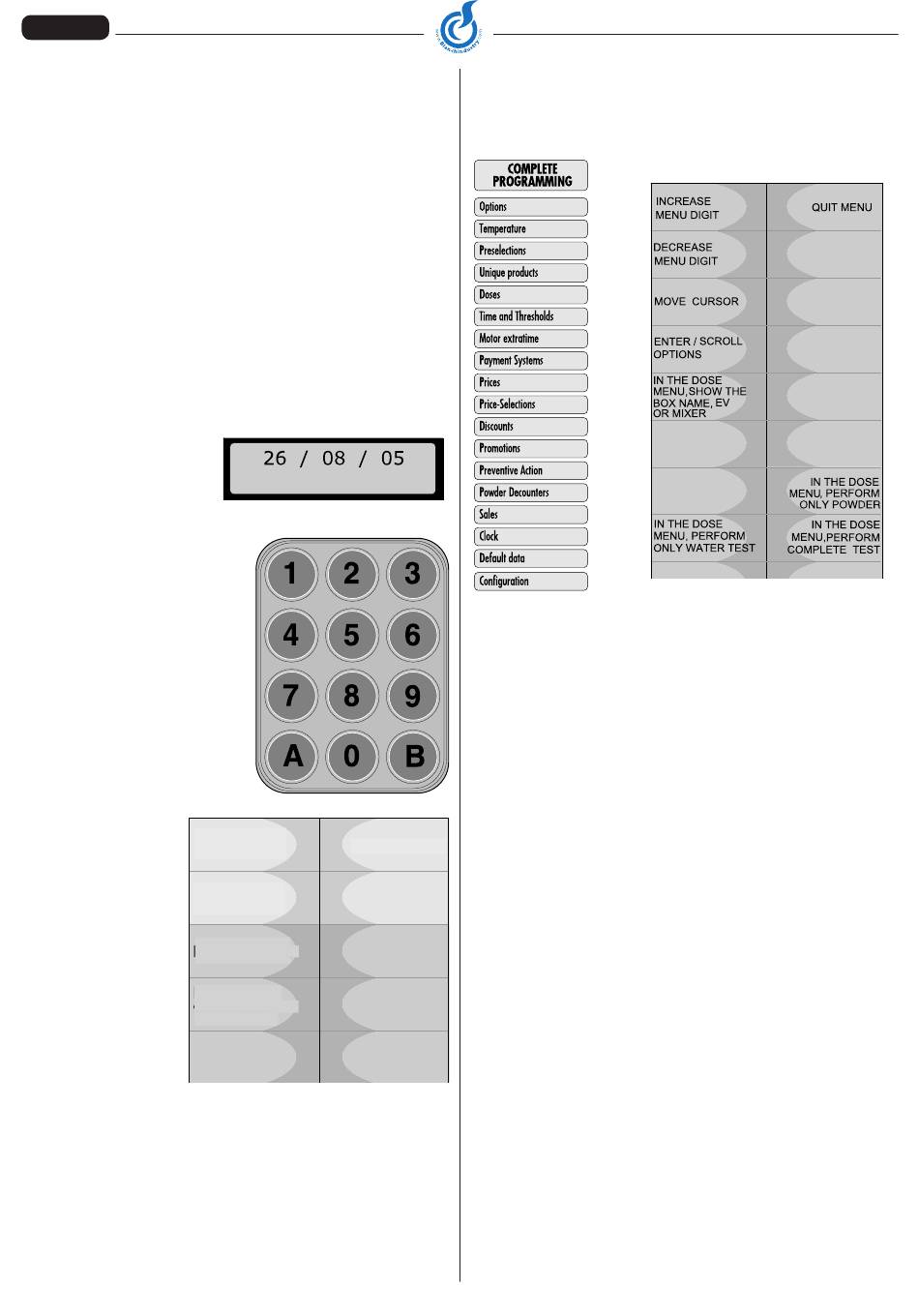

Now we must enter the installation date using the push button panel as
shown below:
For Alphanumeric version
KEY 1 INCREASE VALUE
KEY 3 MOVE CURSOR
KEY 5 ENTER DATE
KEY 7 DECREASE VALUE
KEY 9 MOVE BETWEEN Day/Month/Year
For Push Button Panel version
Pushing the ENTER BUT-
INCREASE
VALUE
TON , the machine will
wait for 10 seconds then
will start to warm up the
DECREASE
boiler.
VALUE
The date will be stored
in a safe place of the
MOVE
board.
CURSOR
To restore the first in-
stallation mode, go to
MOVE
Programming using Pas-
BETWEEN
sword 22933.
Day/Month/Year

5.0 SOFTWARE INSTRUCTIONS

5.1 PASSWORD
The current programming logic requires, when entering by pressing the
PROG key, the insertion of a password allowing to access one programming
menu.
To facilitate and speed up some operations on the field, the password ma-
nagement is subdivided as follows:
PWD 1 - Reduced programming menu
PWD 2 – Complete programming menu
PWD 3 – Sales Menu;
PWD 4 – Subdivided into 2 PWD set: 88000 to test all BVM600 slaves;
Test (managed by Bianchi Vending Group only) to access the test carried
out in the assembly line.
Note: If the password of the reduced menu coincides with the password of
the complete menu, the latter will prevail.
5.2 MACHINE MENUS
PWD 1 allows the access the complete menu of the vending machine. The
menu access procedure is as follows: press PROG key on the master board,
enter the password and press ENTER key. Below is a list of programming
menus of the vending machine.
5.2.1 SOFTWARE MENUS MACHINE
In the programming mode the keys have the following meaning:
1 Increase
2 Show name
3 Move cursor
4 Powder test
5 Go back to previous menu (esc)
6 Only water test
7 Decrease
8 Complete test (Dose menu)
EV or Inst. Test (Drink dose menu)
9 Enter
0 Complete test (Drink dose menu)
5.3 MAINTENANCE
Maintenance is performed by pressing the key 'Service'.
In line 1 "Maintenance xxx" will be displayed , where xxx displays the boiler
temperature, and in line 2 the possible detected alarms.
Pressing twice the key Service, the stand by heating phase will be bypassed,
ENTER DATE
allowing you to perform test selections even on non regimen temperatures.
Pressing a key the slave boiler temperature will be displayed in scroll.
The maintenance panel has the following functions:
In the maintenance mode the keys have the following meaning:
Key 1: Scroll ALARMS (if pressed for 5 seconds appear to display the last
15 alarms)
Key 5: Reset
Code 01:
Code 02:
Code 03:
Code 04:
Code 05:
Code 06:
Code 07:
Code 08:
Code 09:
Code 12:
Code 13:
Code 14:
Code 15:
Code 16:
Code 17:
Code 18:
Code 0A:
Code 0B:
Key+Sugar: Reset
Key–Sugar: Scroll ALARMS (if pressed for 5 seconds appear to display the
last 15 alarms)
In maintenance mode it is necessary to enter in sequence,via the alphanumeric
keyboard, the numbers shown to obtain the desired function
16
Direct selection keyboard
alarms
Group rotation
MDB tube filling
MDB tube depletion
Input test and empty pipes for MDB
Reset alarms (or only 5)
Complete test
Only water test
Nozzle movement
Column rotation
Total entries display
Cup release
Mixer test
Refill
Test without sugar
Spoon
grinder-doser test
Display Temperature last 48 hours Vega A
Display Temperature last 48 hours Vega B
alarms
.
