→ The green LED on the back of the power supply and the green LED on the battery charger
light up (see fig. 3).
→ If the green LED on the power supply and the green LED on the battery charger do not light
up, there is an error (see Page 81).

6.2 Charging the prosthesis battery

6.3 Display of the current charge level

INFORMATION
The charge level cannot be displayed during the charging process.

6.3.1 Display of battery charge level without additional devices

Beep signal
5x short
4x short
3x short
2x short
1x short
1x short
INFORMATION
If the Volume parameter is set to '0' in the Cockpit app, there are no beep signals (see
Page 69).

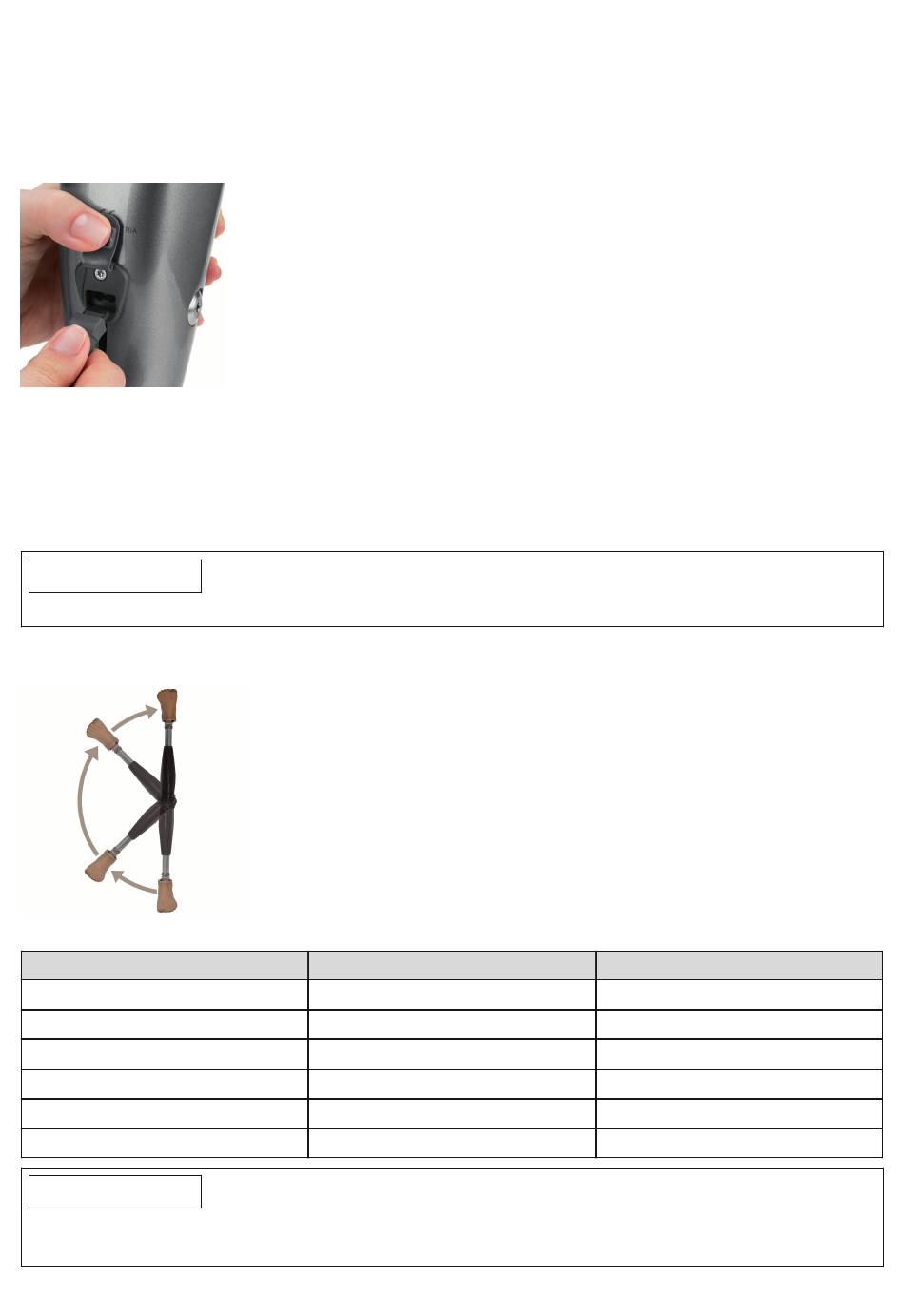

1) Open the charging receptacle cover.
2) Connect the charging plug to the charging receptacle of the
product.
INFORMATION: Take note of the plug direction!
→ The correct connection of the battery charger to the product is
indicated by feedback (see Page 80).
3) The charging process starts.
→ Once the product battery is fully charged, the yellow LED on the
battery charger turns off.
4) Disconnect the product after the charging process is complete.
→ A self-test is performed. The product is operational only after
corresponding feedback (see Page 84).
5) Close the charging receptacle cover.
1) Rotate the prosthesis 180° (the sole of the foot must face up).
2) Hold still for 2 seconds and wait for beeps.
Vibration signal
3x long
5x long
Battery charge level
more than 80%
65% to 80%
50% to 65%
35% to 50%
20% to 35%
less than 20%
