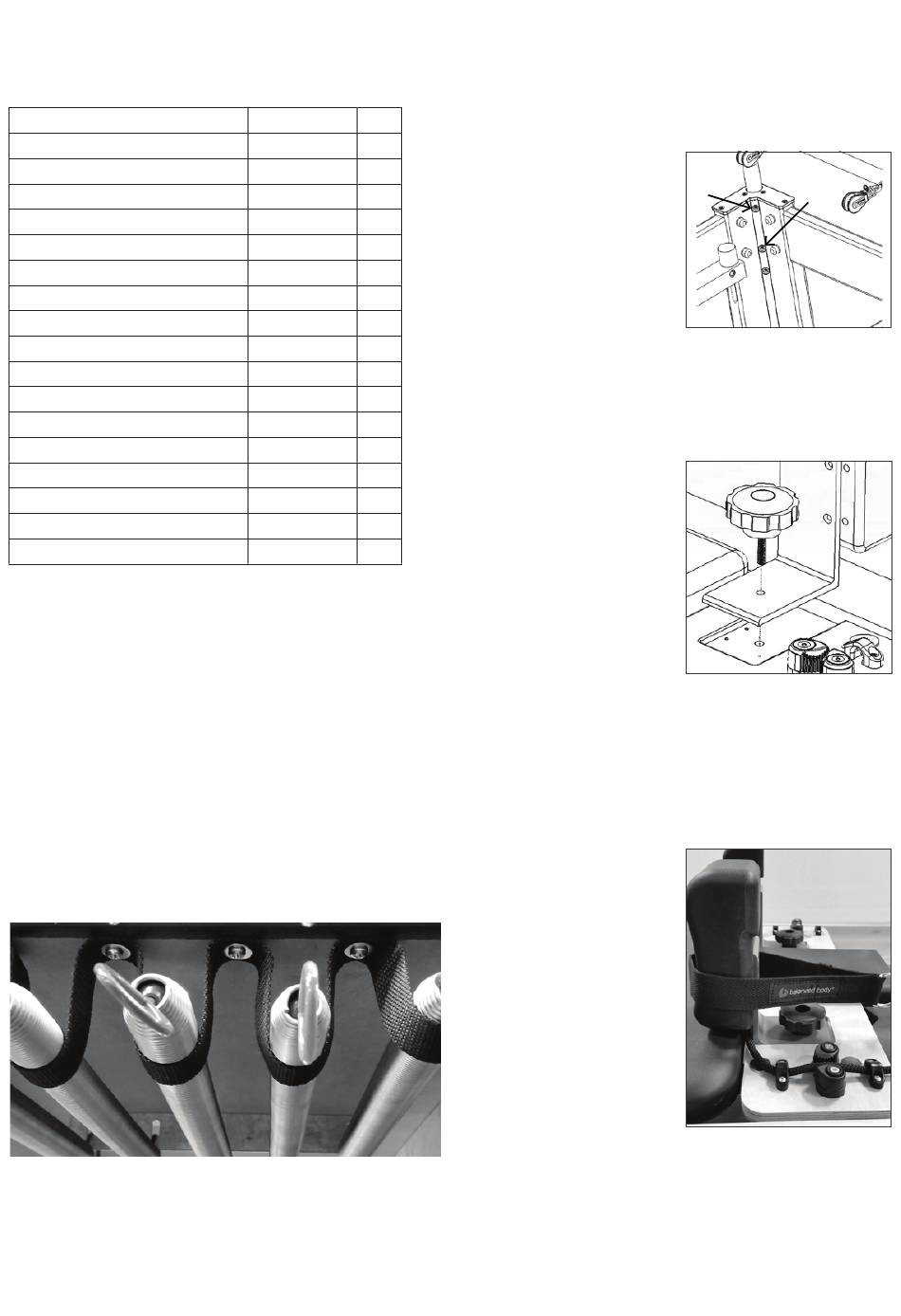

PARTS LIST

DESCRIPTION
Red Springs
Blue Spring
Green Spring
Soft Touch Loops (pair)
Ropes (pair)
Carr Extension Stopper
Sitting Box Lite
Riser Tower
Shoulder Rests Kit with Knobs
Foot Strap
Pulley Assembly
Footbar assembly
Black Spacer
Silver Washer
Shoulder Bolt
5/16" Allen Wrench
5/32" Allen Wrench
INSTALL THE CARRIAGE
1. Turn the carriage over and clean both the wheels and the full
length of the rail surfaces inside the frame. Carefully place the
carriage into the frame with the headrest facing away from
the standing platform end.
ATTACH THE SPRINGS TO THE UNDERSIDE OF
THE CARRIAGE
2. Locate the bracket with five slotted holes beneath the
carriage. Hook the springs onto the slots. The hook should be
facing down. The springs should pass through the loops in the
nylon strap. See Figure A.
Fig A
8
PART NO QTY
SPR9070 3
SPR7071 1
SPR9293 1
101-036 1
210-070 1
200-211 1
108-350 1
620-060 1
620-085 1
101-011 1
620-083 2
620-081 1
620-073 2
GEN9203 2
GEN7541 2
GEN9050 1
GEN9282 1
INSTALL THE RISER TOWER
3. The riser tower comes with
the pulleys preinstalled.
Guide each end of the riser
tower through the hole in
the legs in the head end
of the reformer. The riser
tower should go through
the legs and stop at the
predetermined height. Lock
the riser tower by tightening
the top set screw in each leg
using the provided 5/32"
allen wrench. See Figure B.
INSTALL THE SHOULDER RESTS
4. Shoulder rests get installed
with a threaded black knob.
Place the shoulder rests into
the notch in the carriage
head end and thread the
black knob. See Figure D.
Note: In order for the
shoulder rests to be
completely secure, the knob
has to be tightly threaded.
Note: The shoulder rests can be installed in two positions. One
position is wider and more comfortable for broad shoulders.
Swap the left and right shoulder rests to change between
standard and wide configurations.
ATTACH THE ROPES
5. To attach the ropes,
first engage at least one
carriage spring to the
springbar to hold the
carriage in place. Unroll
and separate the ropes.
Clip a cotton loop onto the
end of each rope and hang
the loops on the shoulder
rests. Thread the other
end of each rope through
a pulley and back into the
cam cleats on the carriage
to adjust the length. Be
sure to go through the
black eyestraps on both
sides of the cam cleats, as shown in Figure C. Always push the
rope firmly down into the cleats to ensure a good grip.
Tighten
this set
Riser tower
screw
stopper
Fig B
Fig D
Fig C
