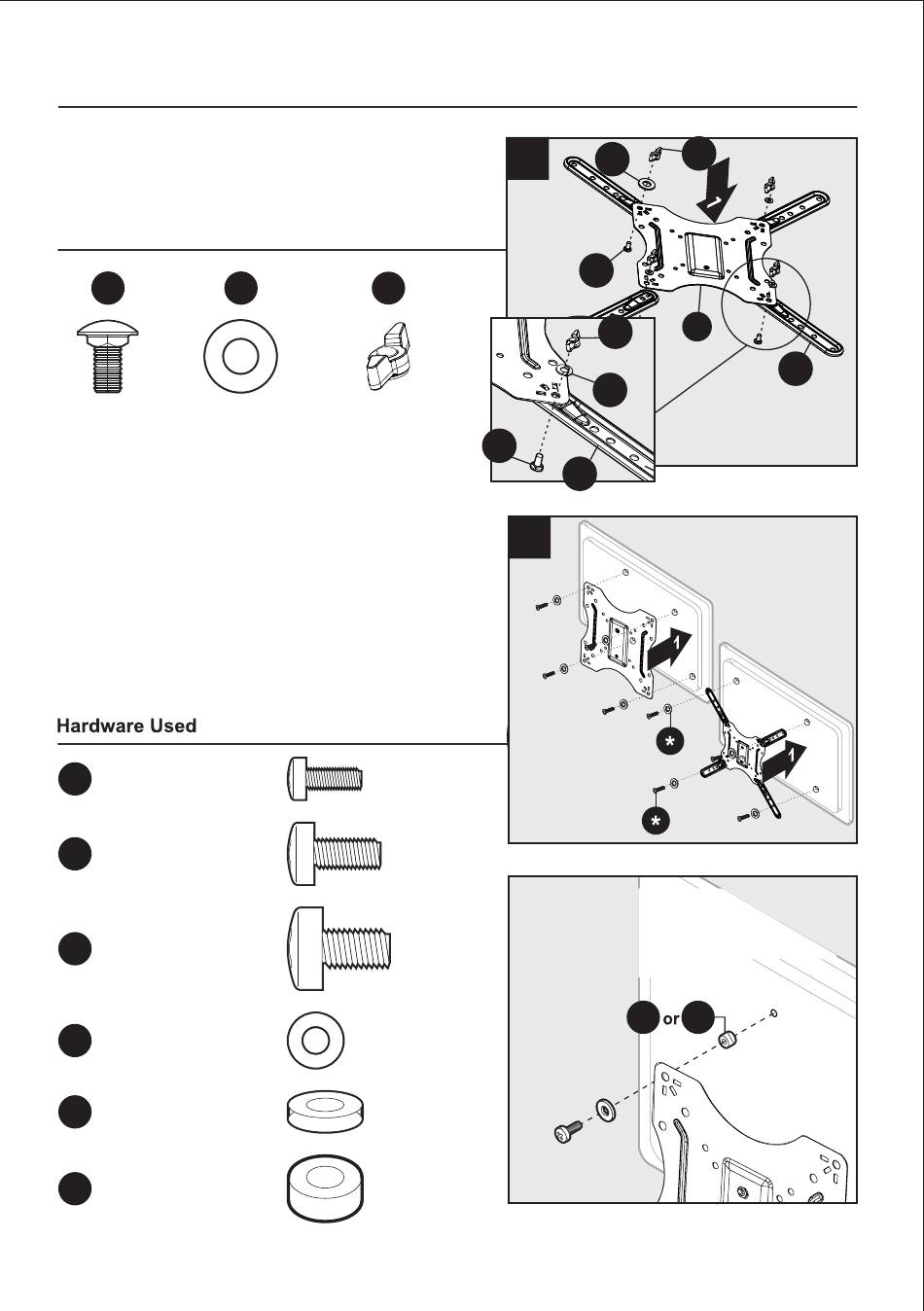

ASSEMBLY INSTRUCTIONS
4. Then use the carriage bolt (GG), washer (HH), and
thumb nut (II) to lock face plate (C) and extension
arms (B) together. Use only one hand for tighten the
thumb nut (II).
Hardware used
GG HH
M6x12 mm
Carriage Bolt M6 Washer
Qty. 4 Qty. 4
5a. For the flat back flat panel: Attach the face plate
(C) with four washers (*) and four screws (*).
*Note: Face plate (C) can be attached to M4x12 screws
(LL) or M6x12 screws (MM), or M8x20 screws (NN),
depending on your TV Washer (RR) only for used
M4 and M6 screws.
LL M4x12 screws
MM M6x12 screws
NN M8x20 screws
RR 5 mm washer
2.5 mm spacer
TT
10 mm spacer
UU
II
M6 Thumb Nut
GG
Qty. 4
x4
x4
x4
x4
x4
x4
8
4
HH
GG
II
HH
B
5a
Without arm
Tip: 2.5 mm spacer (TT) and/or
10 mm Spacers (UU) can also be used.
TT UU
II
C
B
With arm
