ASSEMBLY INSTRUCTIONS
Concrete Installation

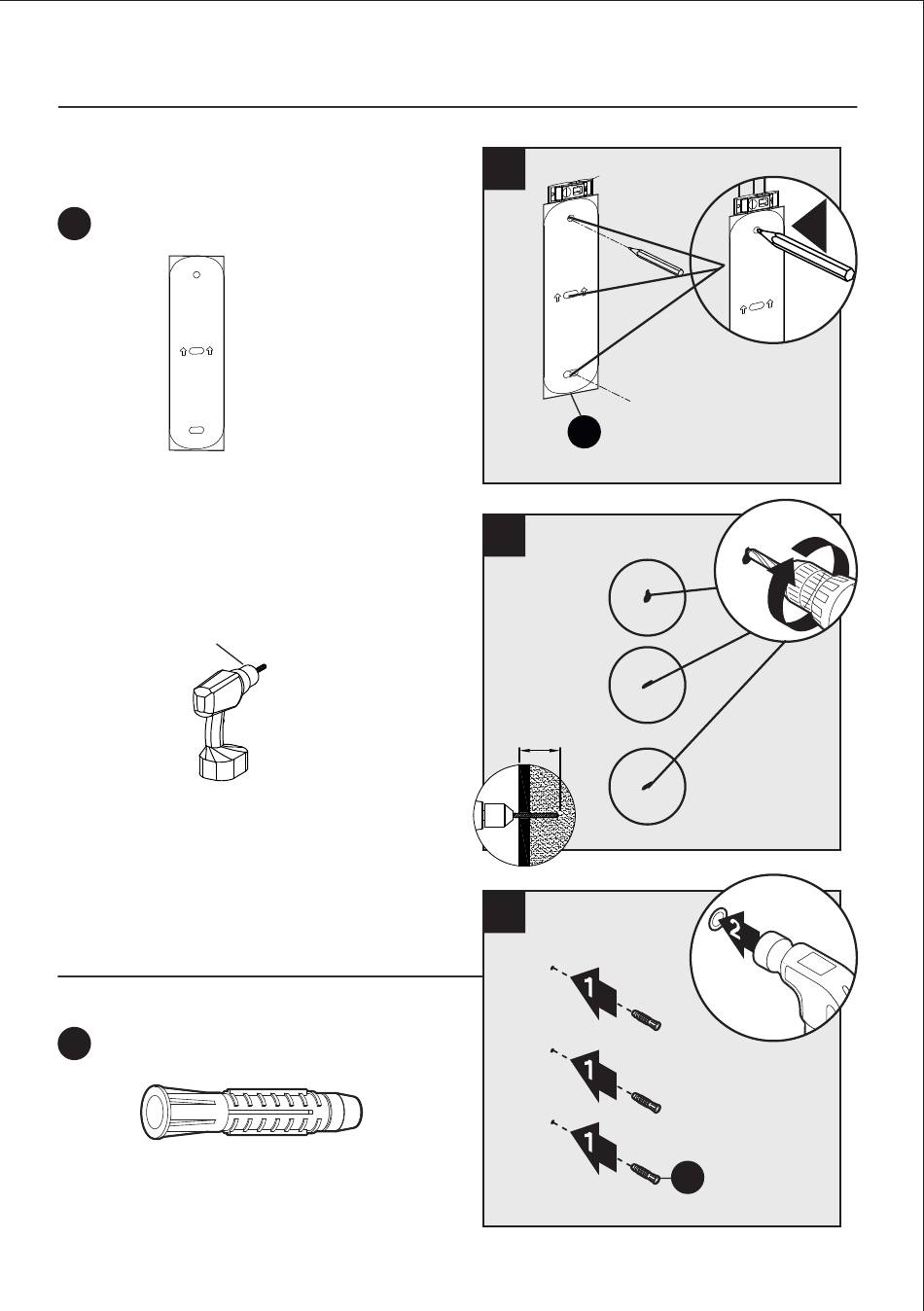

11. Hold the mounting template (E) in the desired
position. Use a pencil to mark 3 hole locations.
Mounting template
E
12. Pre-drill marked 3 holes by 3/8 in. size
Masonry Drill Bit to a depth of 2.36 in.
Masonry Drill Bit
3/8 in. (10 mm)
13. Insert anchors (KK) into the wall and use a
hammer to lightly tap them into the wall.
Hardware Used
KK Anchor
11
x1
12
2.36 in. (60mm)
13
x3
12
Level
E
depth
KK
