ASSEMBLY INSTRUCTIONS

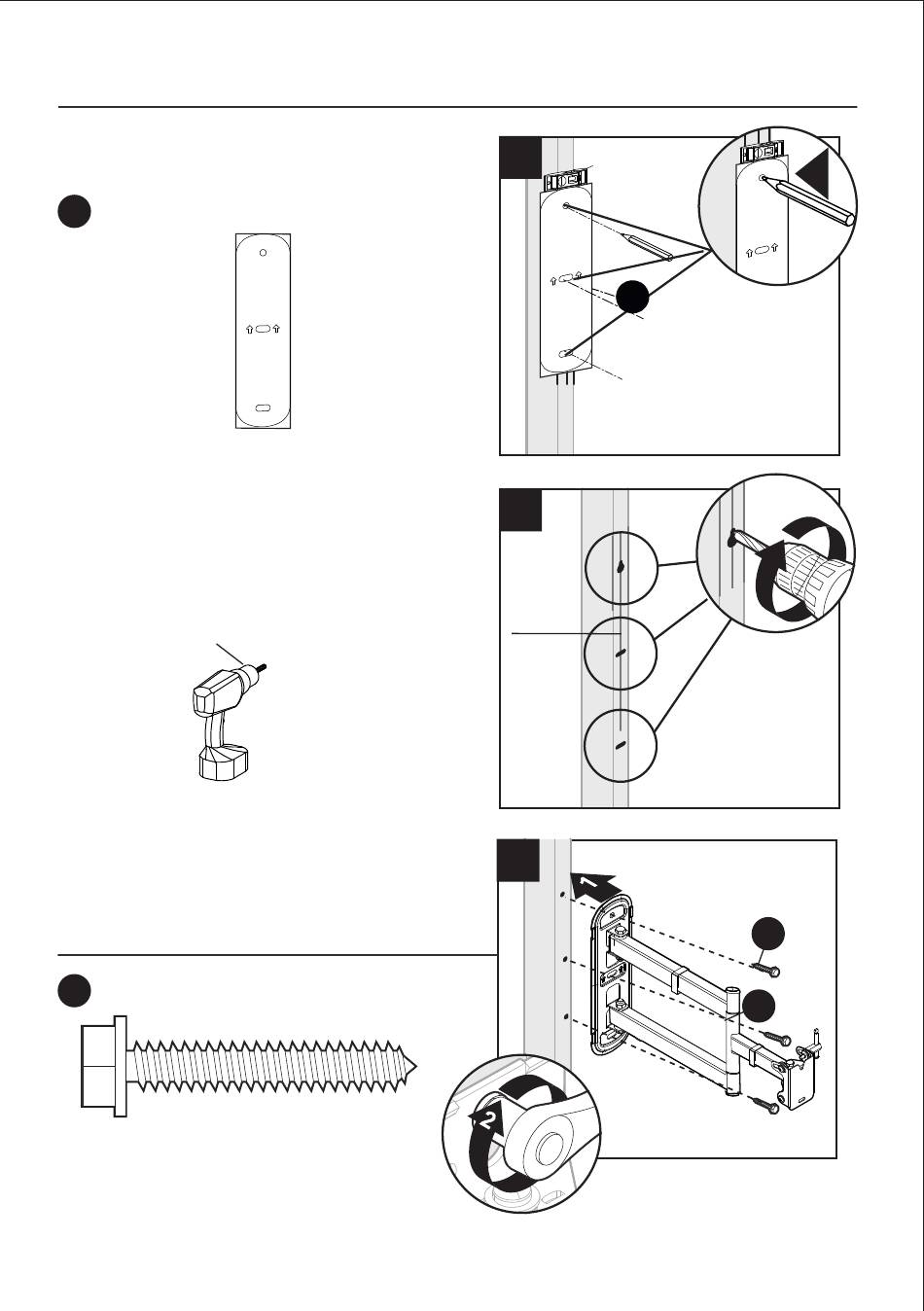

8. Hold the mounting template (E) in the desired
position. Use a pencil to mark 3 holes locations.
Mounting template
E
9. Pre-drill 3 holes with a 5/32 in. wood drill bit to a
depth of 2.36 in.
Masonry Drill Bit
5/32 in. (4 mm)
10. Fix the wall plate assembly (A) to the wall with
M7x55 mm lag bolt (JJ) using the 1/2 in. socket-
wrench (not included).
Hardware Used
M7x55 mm Lag bolt
JJ
8
Level
x1
9
2.36 in.
(60 mm)
depth
10
x3
11
E
Wood Drill Bit
5/32 in. (4.0 mm)
JJ
A
Socket Set
1/2 in. (13 mm)
