ASSEMBLY INSTRUCTIONS

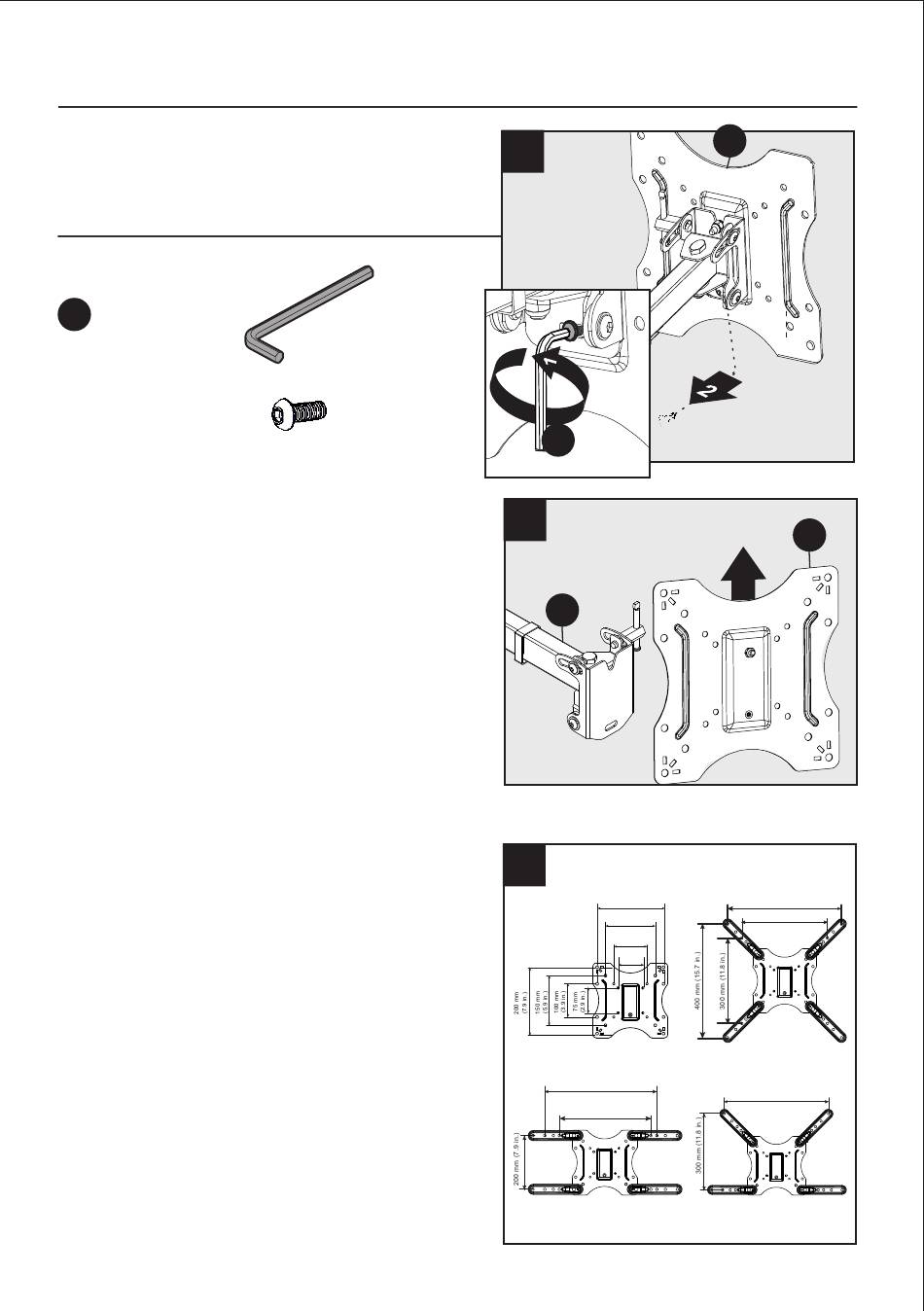

1. Remove one Allen screw with an Allen key (FF) as
shown and keep the allen screw for the later use.
Separate face plate (C) from wall plate assembly (A).
Hardware used
Allen Key
FF
Removed Allen Screw
2. Remove the face plate (C) from the wall plate
assembly (A).
3. Determine the mounting configuration to use based
on the mounting hole pattern on the back of a flat
panel TV (not included).
1
X1
X1
FF
2
A
3
200 mm
(7.9 in.)
150 mm
(5.9 in.)
100 mm
(3.9 in.)
(2.9 in.)
400 mm (15.7 in.)
300 mm (11.8 in.)
7
C
400 mm (15.7 in.)
300 mm (11.8 in.)
75 mm
400 mm (15.7 in.)
C
