8 961 INTERFACE

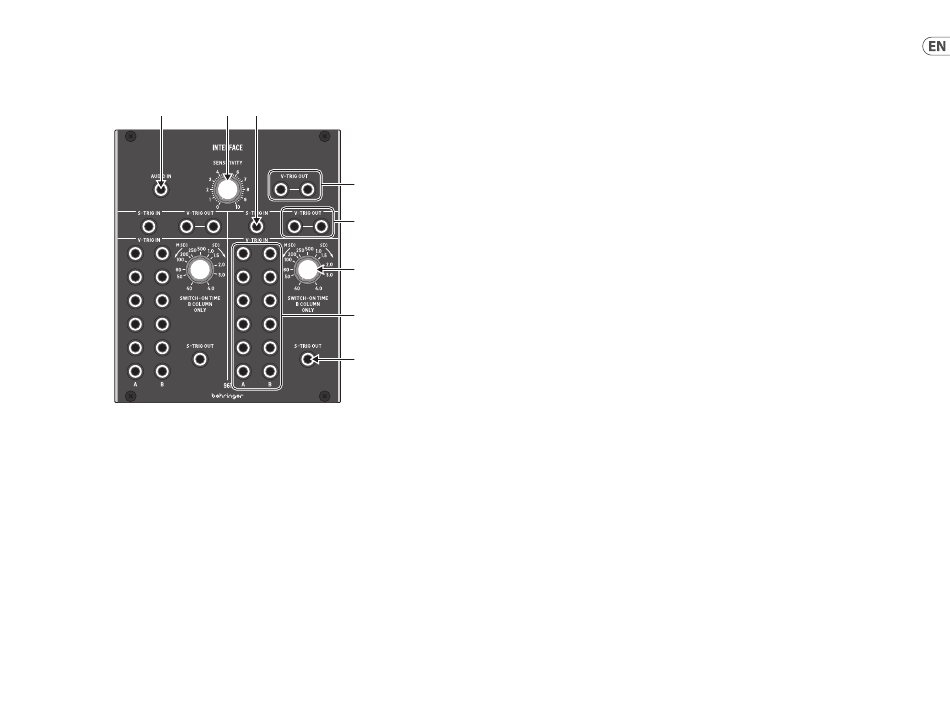

961 INTERFACE Controls
(1) (2) (4)
(3)
(5)
(7)
(6)
(8)
(EN) Controls
AUDIO IN – Use this 3.5 mm jack to route an audio
(1)
signal into the module for conversion to a V-Trig
(voltage trigger) signal. The audio signal passes
through the SENSITIVITY control before being
converted, and the final, converted signal then exits
the module at the V-TRIG OUT parallel connections
immediately to the right of the SENSITIVITY knob.
SENSITIVITY – Use this knob to adjust the gain of
(2)
the audio signal coming into the module through
the AUDIO IN jack. Rotate the knob until you
find a setting that gives you the best audio-to-
voltage conversion.
V-TRIG OUT – Use the parallel jacks to route the
(3)
converted audio-to-voltage V-Trig signal back out
of the module via cables with 3.5 mm TS connectors.
S-TRIG IN – Route S-Trig (switch trigger) control
(4)
signals into the module via cables with 3.5 mm TS
connectors for conversion to V-Trig (voltage trigger)
signals. The converted V-Trig signal comes back
out of the module via the parallel V-TRIG OUT jacks
immediately to the right of the S-TRIG IN jack.
V-TRIG OUT – Use these parallel jacks to send the
(5)
converted V-Trig signal back out of the module via
cables with 3.5 mm TS connectors.
Quick Start Guide
V-TRIG IN A/B – Use these rows of 3.5 mm jacks to
(6)
route in multiple V-Trig (voltage trigger) signals for
conversion to an S-Trig (switch trigger) signal that
exits the module via the S-TRIG OUT jack assigned
to this section of the module. The V-TRIG IN A row
of inputs go straight to conversion and output,
while the V-TRIG IN B row of inputs pass through the
SWITCH-ON TIME control before being combined
with the converted A signal for final output through
the S-TRIG OUT jack. When any valid V-TRIG input
activates the S-TRIG output, any other V-TRIG input
activity will be ignored until the first V-TRIG cycle
has ended.
SWITCH-ON TIME – Use this knob to manually
(7)
limit or extend the "ON" time duration of V-Trig
signals coming in through the V-TRIG IN B row
of input jacks. The "ON" time can be varied from
40 milliseconds to a full 4 seconds.
S-TRIG OUT – This jack routes the final S-Trig signal
(8)
from the V-TRIG IN A/B jacks back out of the module
via cables with 3.5 mm TS connectors.
9
