5. INDOOR UNIT INSTALLATION

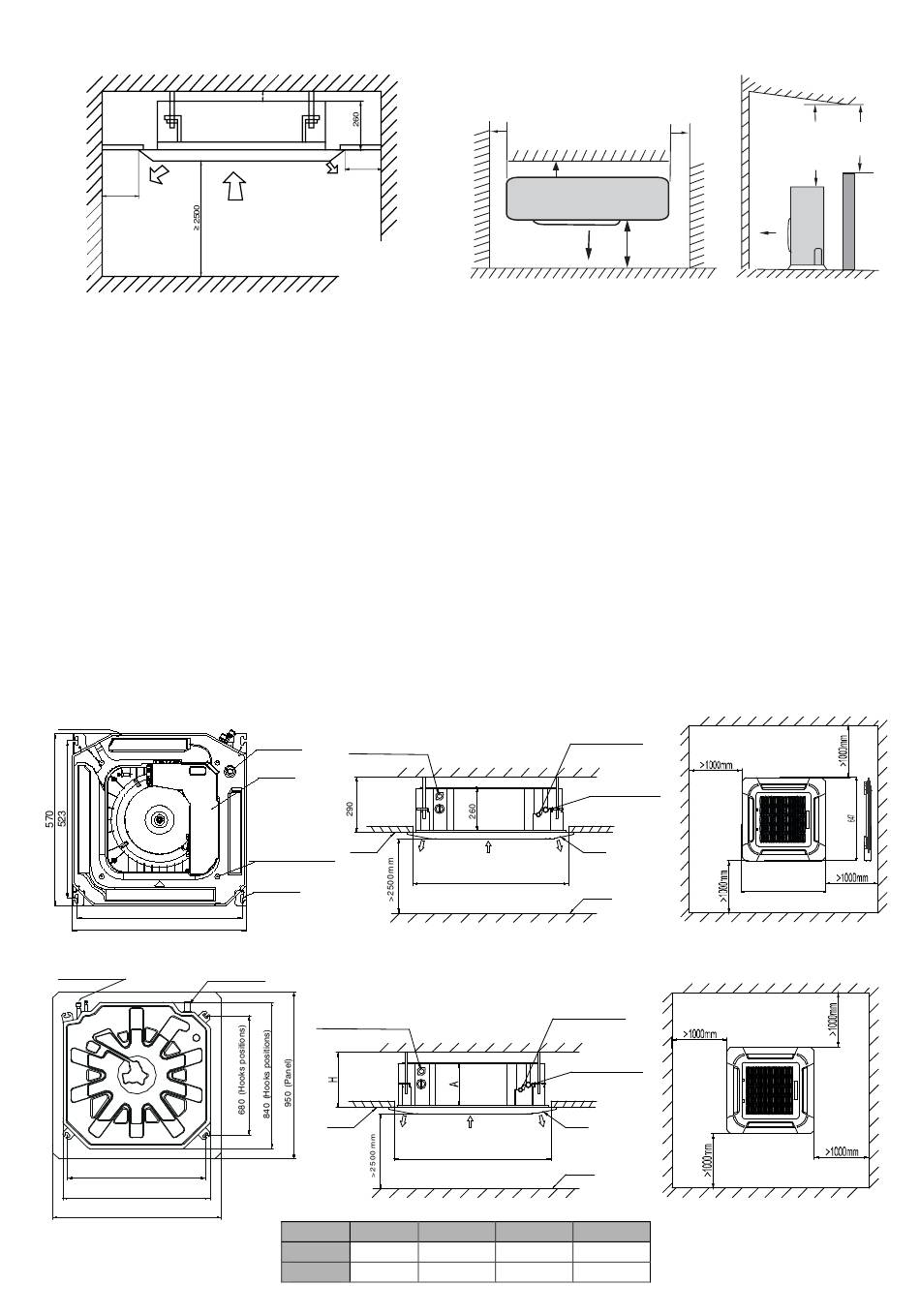

♦ INSTALLATION DRAWING
≥1000
Un it: m m

♦ INSTALLATION SITE

◊ Indoor unit installation site
* Place the unit well away from heat or steam sources and where the air intake and the delivery parts are not obstructed.
* Do not install the unit in rooms where inflammable gas or acid or alkaline substances are present since these could
irreparably damage the copper-alluminium heat exchangers or the plastic components.
* Do not expose the indoor unit to direct sunlight.
* Place the unit in a place where condensate can be easily discharged and from whence the pipes can be easily
connected to the outdoor unit.
* Position the unit in compliance with a minimum distance from walls, furniture or other as shown below.
* Do not install the unit in workshops or kitchens where oil vapours mixed with the treated air could settle on the heat
exchanger batteries, thus reducing their performances, or on the interior parts of the unit, causing them damage.
* Place the unit in a place where the treated air can distribute throughout the room.
* Place the unit at least one meter from televisions, radios, appliances with remote controls and fluorescent lamps.
♦ DIMENSIONS INDOOR UNIT INSTALLATION
Mod. 3500 W, 5300 W
Indoor unit body
545
570
Mod. 7100 W, 10500 W, 14000 W, 17600 W
Refrigerant pipe
Draining side
780 (Hooks positions)
840 (Indoor unit body)
950 (Panel)
≥20
≥1000
Indoor unit
Drain hole
( for service)
Draining pipe connection Ø 32
E-parts box
Ceiling
4-Screw hole
(for install panel)
4-install hanger
Draining pipe connection
Ceiling
Air outlet
Unit : mm
MOD. 7100W
A 245
H
>275
≥500mm
≥300mm
Uscita aria
Liquid pipe connection
Attaco tubo gas
Panel
Air outlet Air inlet Air outlet
(ceiling hole)
600mm
Floor
Liquid pipe connection
Gas pipe connection
Panel
Air inlet Air outlet
8 8 0 m m (ceiling hole)
Floor
10500W 14000W 17600W
245 287
>275 >317
53
≥500mm
≥2000mm
≥2000mm
Outdoor unit
287
>317
≥1000mm
≥1000mm
50
647
