2. INSTALLATION INFORMATION

- To install properly, please read this "installation manual" at first.
- The air conditioner must be installed by qualified persons.
- When installing the indoor unit or its tubing, please follow this manual as strictly as possible.
- If the air conditioner is installed on a metal part of the building, it must be electrically insulated according to the
relevant standards to electrical appliances.
- When all the installation work is finished, please turn on the power only after a thorough check.
- Regret for no further announcement if there is any change of this manual caused by product improvement.

3. INSTALLATION ORDER

- Select the location;
- Install the indoor unit;
- Install the outdoor unit;
- Install the connecting pipe;
- Connect the drainpipe,
- Wiring;
- Test operation.

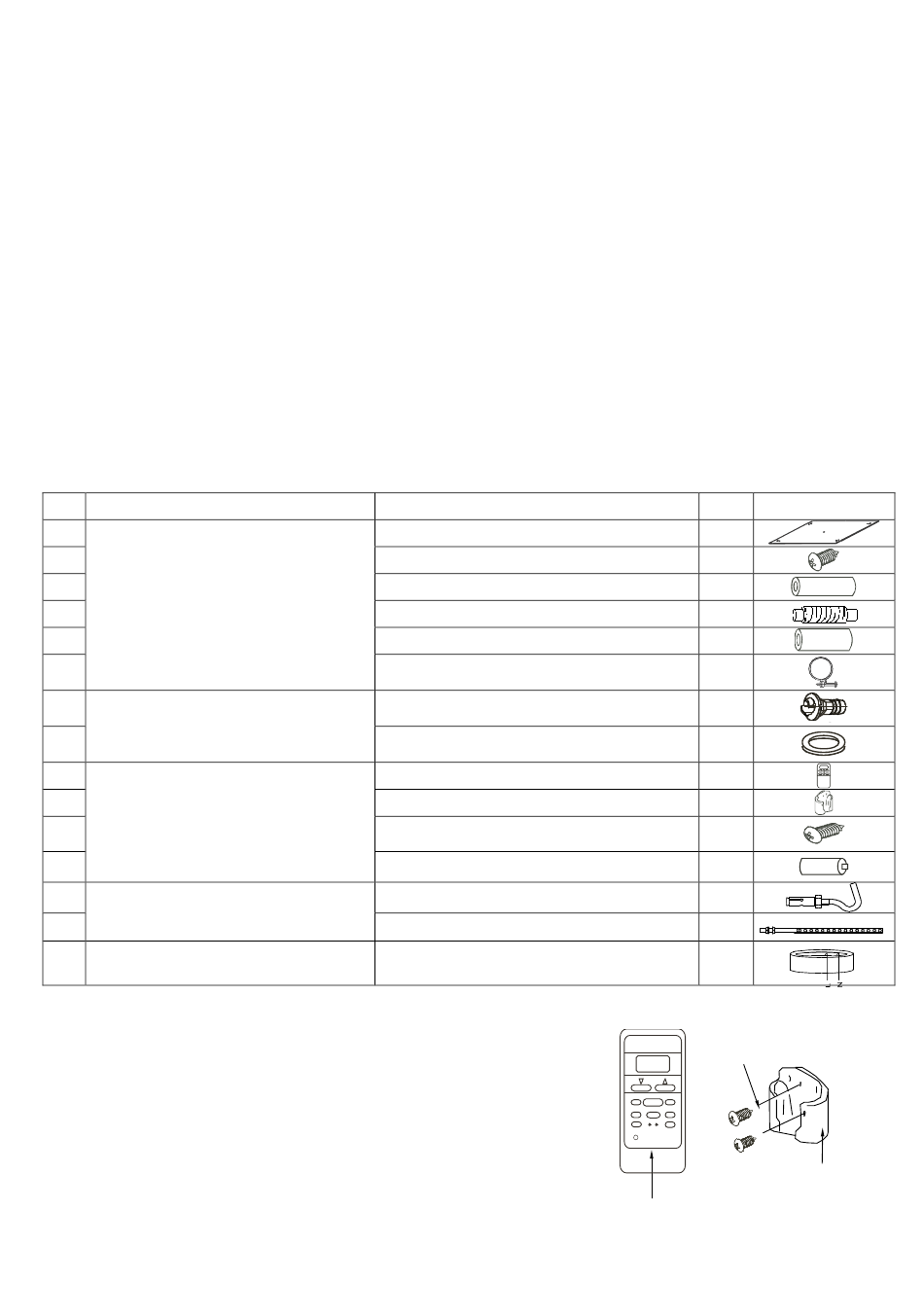

4. ACCESSORIES

Check whether the following fittings are of full scope. If there are some spare fittings, please restore them carefully.
No
1
2
3
Tubing & Fittings
4 (on some models)
5
6
5
Drainpipe Fittings
(on some models)
6
7
8
Remote controller & Its Frame
(Match with remote controller)
9
10
Installation accessory (The product you
11
have might not be provided the foll
12
owing accessory) (on some models)
13 EMC & Its Fitting (for some models)
Cautions on remote controller installation:
■ Never throw or beat the controller.
■ Before installation, operate the remote controller to determine its location in
a reception range.
■ Keep the remote controller at least 1m apart from the nearest TV set or
stereo equipment. (it is necessary to prevent image disturbances or noise
interferences.)
■ Do not install the remote controller in a place exposed to direct sunlight or
close to a heating source, such as a stove.
■ The positive and negative poles are right positions when loading batteries.
Name
Paper pattern for installation
Bolt M6
Soundproof / insulation sheath
Out-let pipe
Out-let pipe sheath
Out-let pipe clasp
Drain joint
Seal ring
Remote controller
Remote controller holder (on some models)
Mounting screw (ST2.9×10-C-H)
Alkaline dry batteries (AM4)
Expansible hook
Installation hook
Magnetic ring (twist the electirc wires L and
N around the magnetic ring to five circles)
52
Qty.
1
4
2
1
1
1
1
1
1
1
2
2
4
4
1
M ounting screw B
SET TEMPERATURE(°C)
ST2.9x10-C-H
AUTO FAN
COOL HIGH
DRY MED
HEAT LOW
TEMP
FAN
O N/O FF
MO DE SPEED
SWING ↔ ECO NO MIC
TIMER O N
SWING ↕
TIMER O FF
RESET LO CK
AIR
DIRECTIO N ↕
R em ote controller
R em ote controller
Shape
holder
