COMBINED CUT

1. Loosen the inclination knob (P).
2. Position the arm at the desired inclination angle and tighten the inclination knob.
3. Loosen the base rotation knob and turn the base at the desired angle; tighten the base rotation knob
again.
4. Stand in line with the new position of the operation handle to cut.

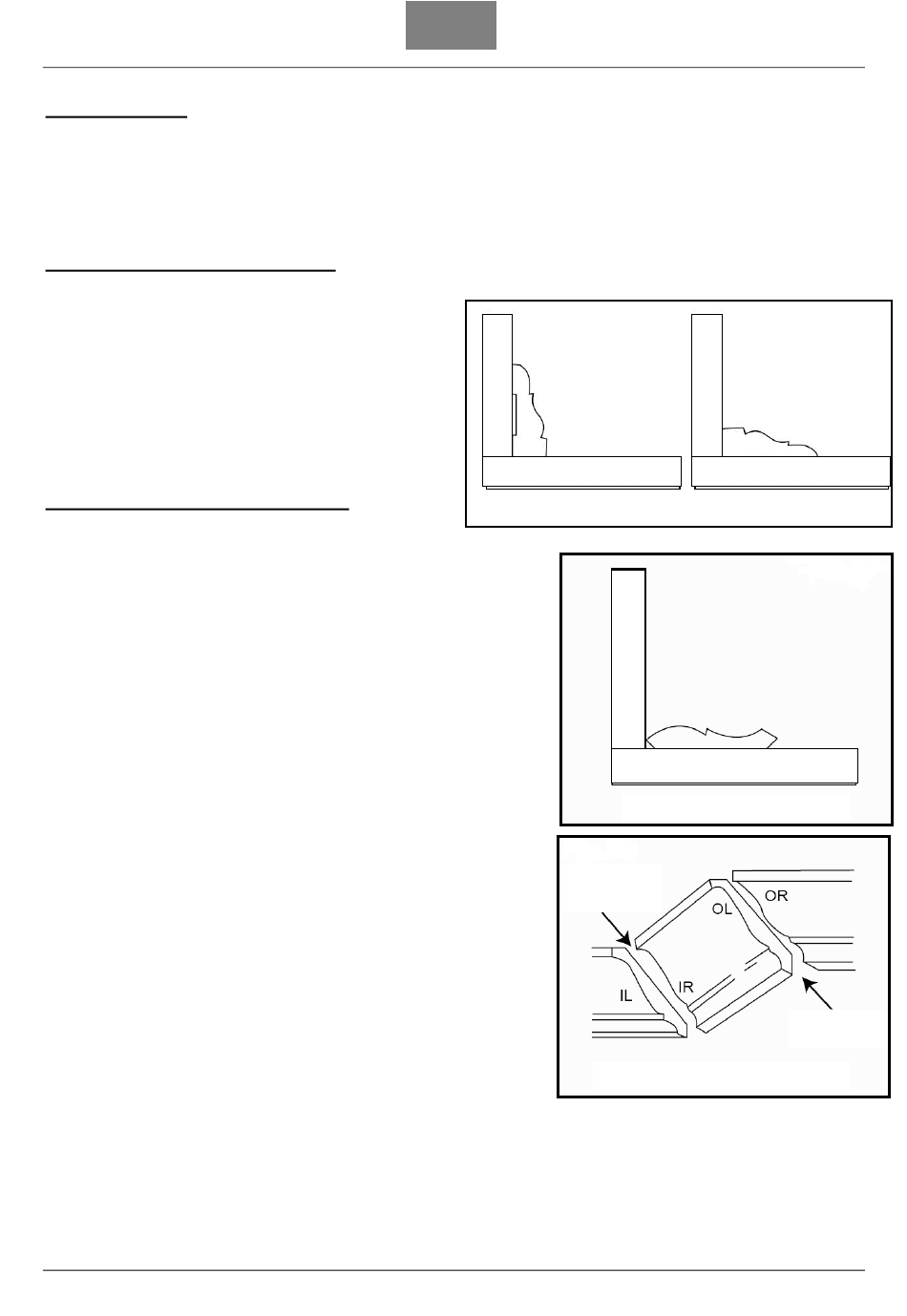

PROFILE (MOPBOARD) CUTTING

You can cut profiles and mopboards.
1. Use a clamp whenever possible. Protect the
surface in contact with the clamp, using a wood-
piece.
2. Select the preferred cut direction, to prevent
cutting from scraping the mopboard.
3. Do as many test-cuts as reasonable before
cutting definitely.
Note : particular thicknesses or wrong types of disk
can cause the break of the mopboard.

CUTTING FRAMES AND PROFILES

One of the unique features of your saw is the ease of
cutting frames and profiles. Frames and profiles must be cut in the
most precise way. The two surfaces of the frames must adapt
themselves to the wall or the ceiling. The following is an example of
cutting both inside and outside corners on 52/38 degree wall angle
frame. NOTE: when cutting 45 degree wall angle frame the
following procedure for inside and outside sorners is the same, with
the exception that the bevel position will always be at 30 degrees
and the mitre position will be 35 1/4 degrees to the right or the left.
1. Set the rotating table to the 31.62 degrees right mitre position.
A positive stop is provided to set the rotating table at this angle
quickly. Tilt the saw blade to the 33.9 degree bevel position.
2. Place the frame on the saw blade with ceiling edge of the
frame against the fence and make the cut. Note that we are
using the wok clamp to hold the work piece firmly against the
table. The piece of frame used for the outside corner will
always be on the right hand side of the blade. The piece of
crown moulding used for the outside corner will always be on
the left side of the blade.
3. To make the matching halves of the inside and outside corners
simply set the rotating table to the 31.62 degree left mitre
position. A positive stop is provided to set the rotating table at
this angle quickly. The saw blade is already tilted to the 33.9
degree bevel angle from the previous cut.
4. Place the frame on the saw table with the wall edge of the
frame against the fence and make the cut. Again note that we
are using the work clamp to hold the work piece firmly against
the table. The piece of frame used for the outside corner will
always be on the right side of the blade. The piece of frame
used for the inside corner will always be on the left side of the
blade.
EN
f
e
n
c
e
Base
Internal
angle
48
f
e
n
c
e
Base
f
e
n
c
e
Base
Position of the piece to be cut
Composite moulding out
External
angle
