VULCAN actuator
Blinker
Aerial
Key or digital selector
Safety edge (EN 12978)

EMERGENCY UNBLOCKING

In the case of a power failure, the gate can be unblocked
mechanically by operating the motor.
Insert the supplied unblocking lever and rotate 180° clockwise.
Automation will be automatically restored the first time the
motor is operated.

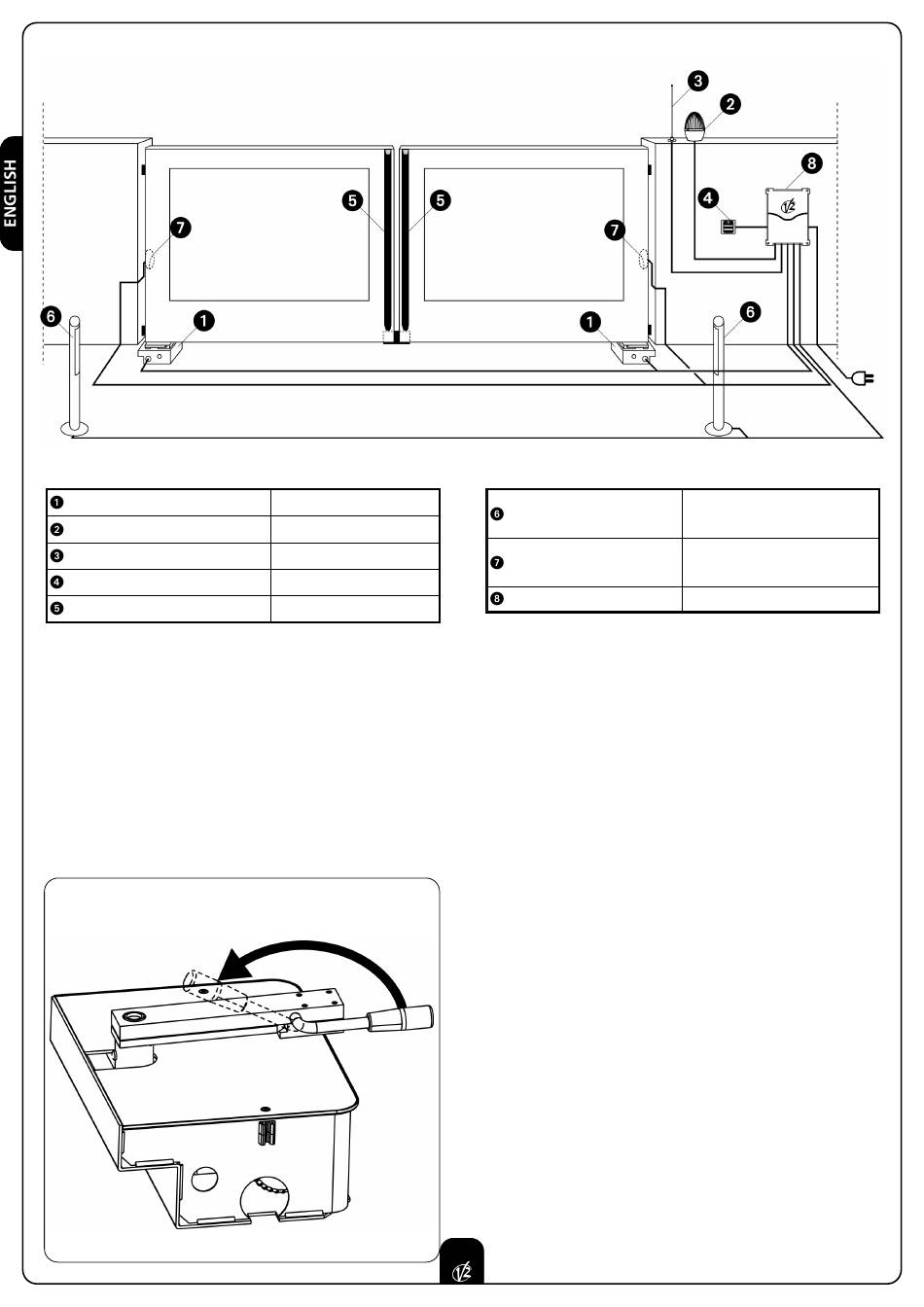

INSTALLATION LAYOUT

cable 4 x 1 mm 2
cable 2 x 1,5 mm 2
cable RG-58
cable 2 x 1 mm 2
-
Internal photocells
External photocells
Control unit
12
cable 4 x 1 mm 2 (RX)
cable 2 x 1 mm 2 (TX)
cable 4 x 1 mm 2 (RX)
cable 2 x 1 mm 2 (TX)
cable 3 x 1,5 mm 2
