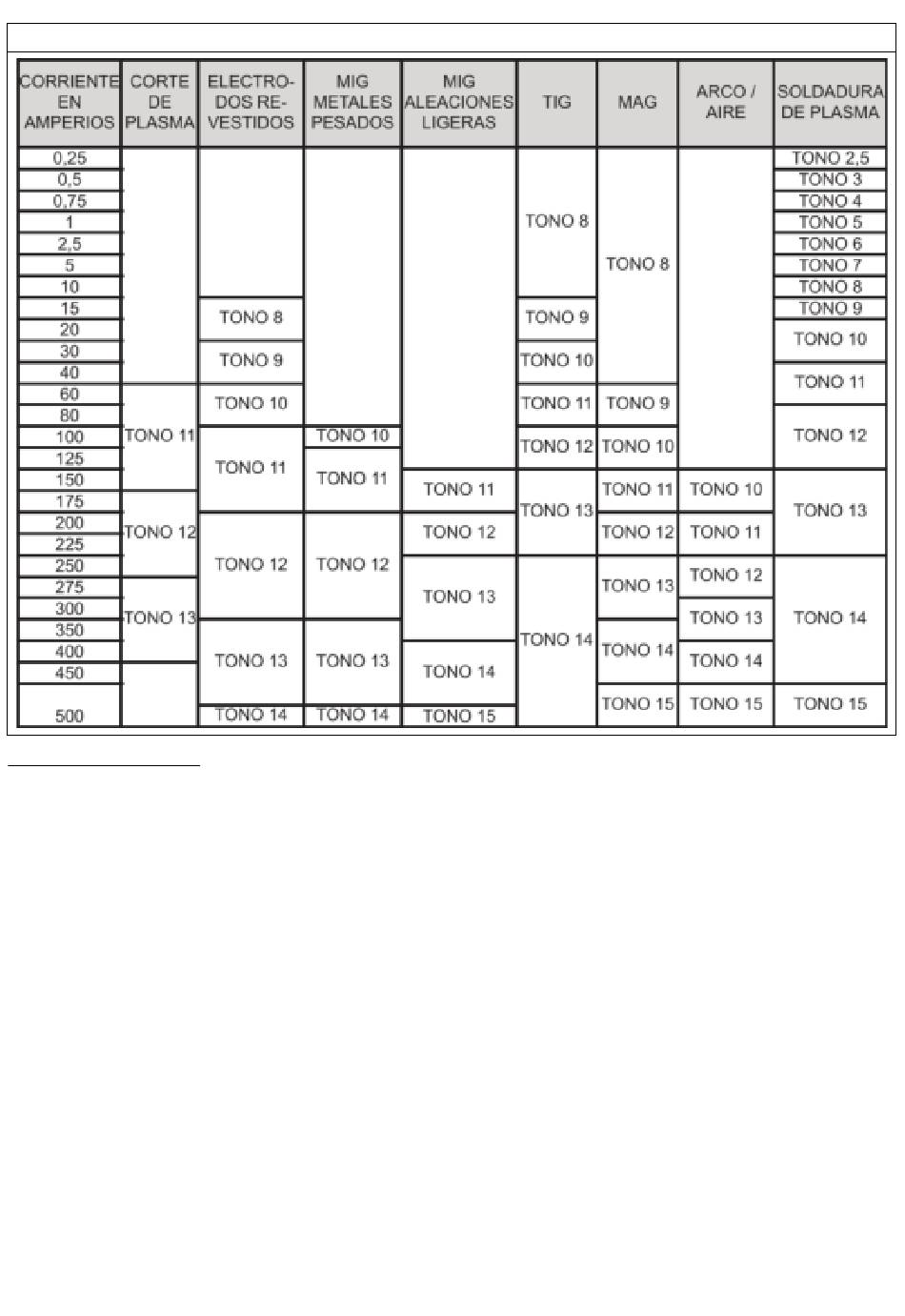

TABLE FOR FILTERS ACCORDING TO APPLICATION
CHOOSING HARNESS
Harness height (Position W)
Adjust the harness to the appropriate depth on the head to ensure correct and stable balance.
Tighten the harness (Position Y)
Press the adjustment button on the back of the harness and turn it to the right or left to the appropriate
position.
Adjust Distance (Z Position)
Adjust the distance between the face and the lens by loosening the two outer nuts equally and press inward to
release it from the adjustment slots.
Angle Adjustment (X Position)
Four bolts on the upper right side of the harness provide an adjustment for future helmet lean. To adjust,
loosen the adjustment knob on the right side, then lift the tab on the control arm and move it to the desired
position and finally retighten the adjustment knob.
