ABB RT8LUGKIT Instrucciones De Instalación Y Mantenimiento página 2

5. For Top-feed only. If bottom feed, skip this step
- Install two 200 mm phase barriers
- Install terminal cover with screws provided
6. Install conductors as required
- 1/0AWG to 750 MCM
- Torque to 500 in-lbf"
7. Use the provided plugs to close any unused termi-
nal ports.
Installation of lug on Neutral assembly
8. Use the four M12 × 60 mm hex-socket bolts, Bel-
leville, flat-washer and hex-nut provided
9. Torque to 437 in-lbf
—
ABB Inc.
305 Gregson Drive
Cary, NC 27511
United States
electrification.us.abb.com

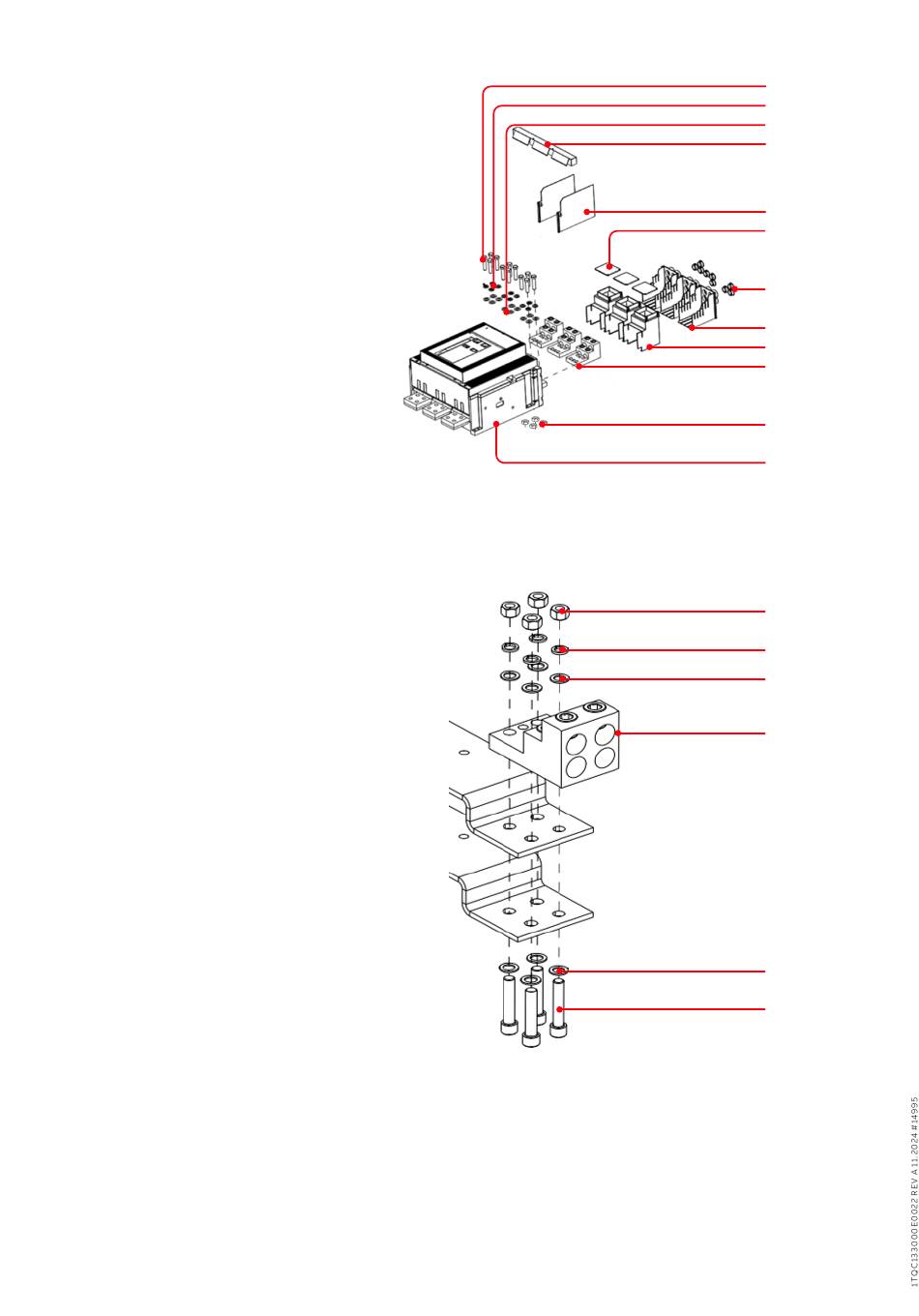

Top feed
Step 8–9
—
We reserve the right to make technical
changes or modify the contents of this
document without prior notice. With
regard to purchase orders, the agreed
particulars shall prevail. ABB AG does
not accept any responsibility whatsoever
for potential errors or possible lack of
information in this document.
We reserve all rights in this document
and in the subject matter and illustrations
contained therein. Any reproduction,
disclosure to third parties or utilization
of its contents – in whole or in parts –
is forbidden without prior written
consent of ABB AG. Copyright© 2024 ABB
All rights reserved
Hex-Bolt
Belleville Washer
Flat-Washer
Terminal Cover
Phase Barriers 200 mm
Barrier Flip-Cover
Port Plug
Barrie Base P35B
Barrier Cover P36B
Lugs
Nut-Plates
Breaker
M12 Hex Nut
M12 Belleville
M12 Flat Washer
Lug
M12 Flat Washer
M12 Bolts
