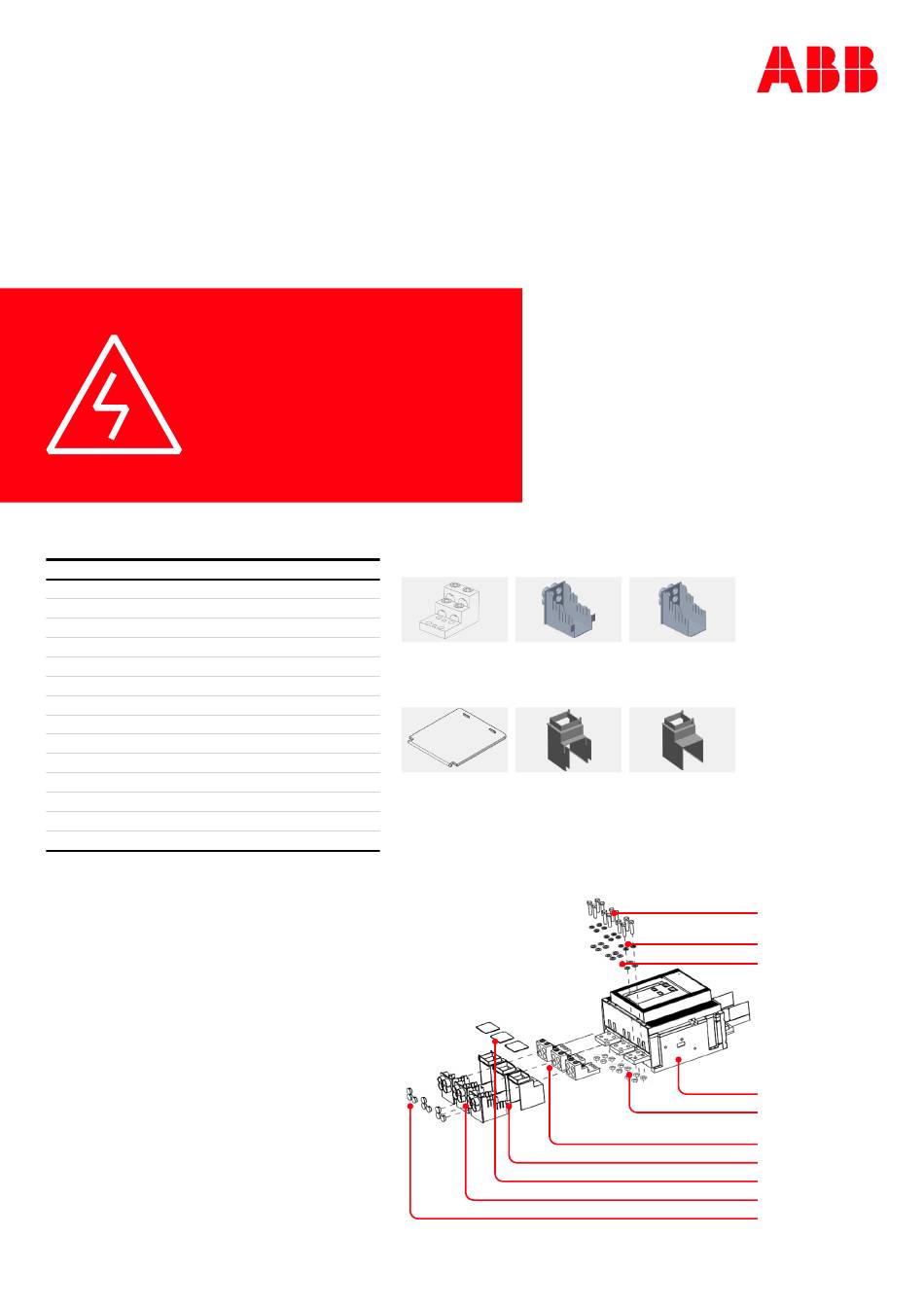

I N S TA L L AT I O N A N D M A I N TA N A N C E I N S T R U C T I O N S
RT8LUGKIT
H A Z A R DOUS VO LTAG E .
W I LL C AUS E S E V ER E
I N J U RY O R D E ATH .
Turn OFF power supplying this
equipment before working inside.
Kit Contains
T8 Mech lugs (4 × 750 MCM)
Finger-Safe Barrier Base Bottom-Feed P35A
Finger-Safe Barrier Cover Bottom-Feed P36A
Finger-Safe Barrier Base Top-Feed P35B
Finger-Safe Barrier Cover Top-Feed P36B
Finger-Safe Barrier Flip-Cover
Terminal cover with 2 screws
M12 × 55 mm Hex-socket bolt
M12 × 60 mm hex-socket bolt
M12 Belleville Washers
M12 flat washers
M12 Hex-Nuts
Terminal Port plugs
Phase-barriers 200 mm
Instruction
1. Turn OFF power supplying the meter-module.
Installation of lugs on T8 Breaker
2. Install the finger-safe barriers to the lugs that will
be installed on line-side of the breaker
- For Bottom-Feed use parts P35A/P36A
- For Top-Feed use parts P35B/36B
Clip barrier base to the lug.
Secondly clip barrier cover to the barrier base.
3. Install the barrier flip-cover to the barrier cover
4. Install the lugs assembly to the breaker. Use four
M12 × 55 mm Hex-socket bolts, four M12 Belleville
washer, eight M12 flat washer, and four M12 hex-
nut for each lug. Torque to 500 in-lbf.
Lug Barrier Bases
4
3
3
3
3
3
Flip-Cover Barrier Covers
1
12
4
16
32
16
9
2
Bottom feed
Please read these instructions
completely before installing
or removing device. Improper
installation could be hazardous
to personnel and/or equipment.
P35A P35B
P36A P36B
M12 x 55 mm
Hex-socket Bolt
M12 Belleville Washer
M12 Flat-Washer
Breaker
M12 Flat-Washer
and Hex-Nuts
Lugs
Barrier Cover P36A
Barrier Flip-Cover
Barrie Base P35A
Port Plug
