7. Canopy Assembly.

Locate 2 screws on underside of hanging
bracket and remove screw closest to the open
end of the hanging bracket. Partially loosen
the other screw. Lift canopy to hanging
bracket. Place rounded part of slotted hole in
canopy over loosened screw in hanging
bracket and push up. Twist canopy to lock.
Re-insert screw that was removed and then
tighten both screws securely.
Slide canopy cover up to canopy, aligning
rounded part of slotted holes in canopy cover
with screwheads in bottom of canopy. Turn
canopy cover to the right (clockwise) until it
stops.
8. Assembly of Handheld Remote Control.
IN ORDER TO USE THE HANDHELD REMOTE CONTROL,
PLEASE CONTINUE WITH SECTION 8 for remote control
assembly instructions. If you have already installed the
wall control but do not wish to use the handheld
remote control, please proceed to Section 9 on the
following page.
Gently pull on remote control cover to separate top
and bottom parts. [Refer to diagram 1.]
In order to use wall control as a handheld remote
control, cut each wire on wall control (that was not
previously used)--use wire cutters to cut off each wire
as close to the wall control as possible. [Refer to
diagram 2.]
Install one 12-volt battery (included) in wall control.
[Refer to diagram 2.]
WARNING: Battery is to be inserted with the
correct polarity.
["Assembly of Handheld Remote Control"
continued on next page.]

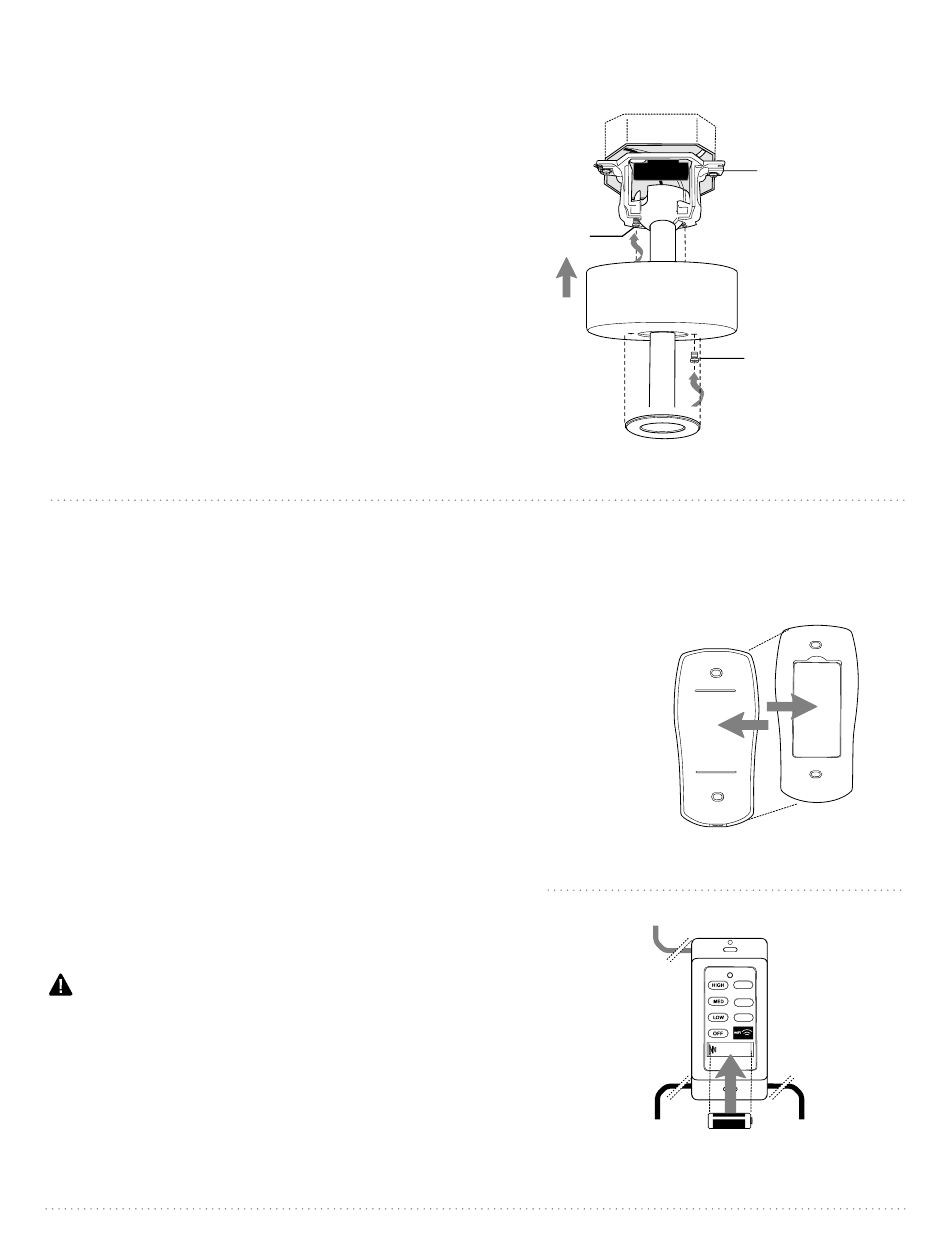

screw
canopy
diagram 1
diagram 2
page 9
hanging bracket
screw
canopy cover
remote control
cover
(top)
(bottom)
wall control
wire
LIGHT LIGHT
CCT CCT
wire
wire
12V battery
