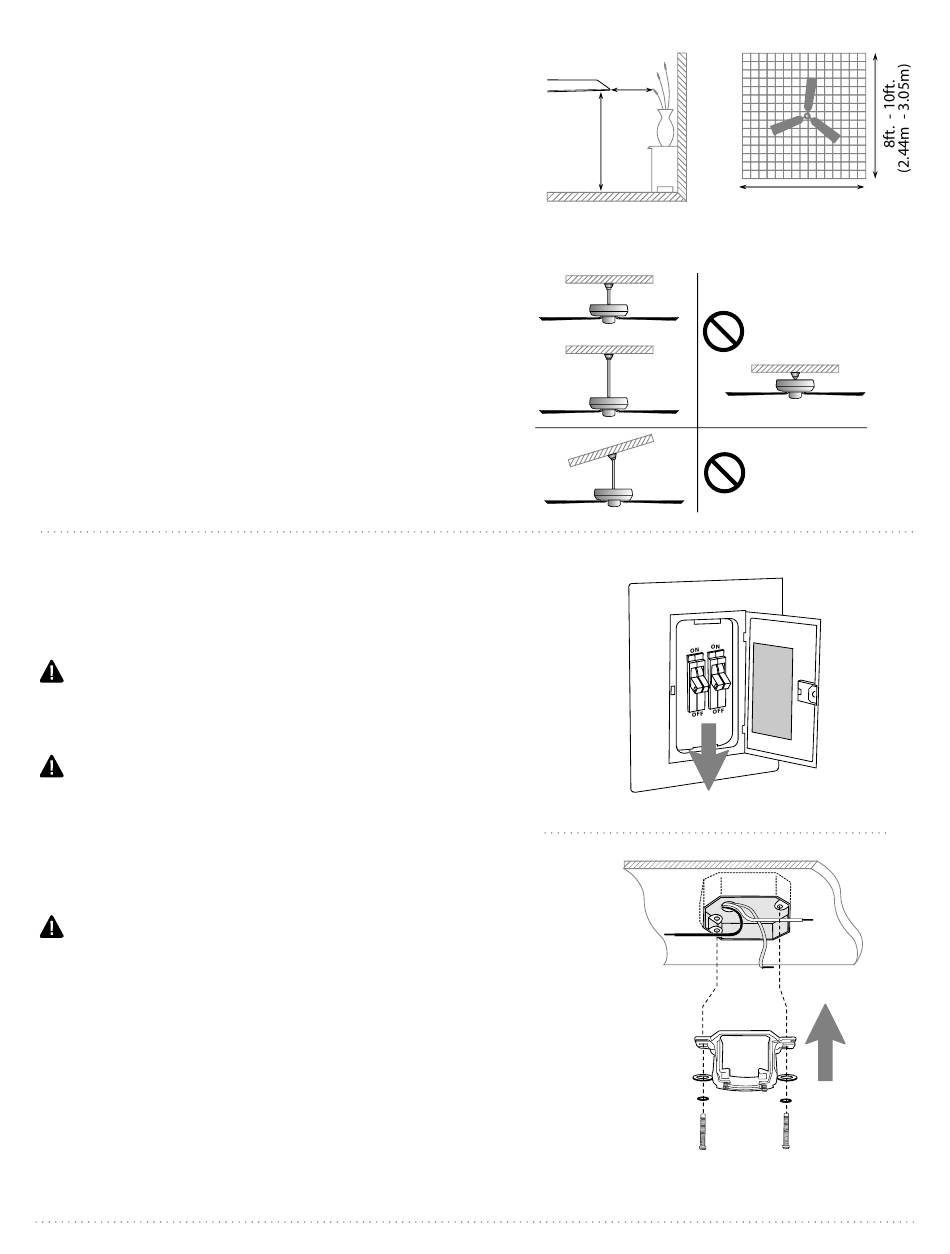

3. Installation Preparation.

To prevent personal injury and damage, ensure that
the hanging location allows the blades a clearance
of 7 feet (2.13m) from the floor and 30in. (76cm)
from any wall or obstruction.
This fan is suitable for room sizes up to 100 square
feet (9.3 square meters).
This fan can be mounted with a downrod on a
regular (no-slope) or vaulted ceiling. The hanging
length can be extended by purchasing a longer
downrod (0.5in./1.27cm diameter). Other
installation, such as flushmount, is NOT available for
this fan.
Installation requires these tools:
Phillips screwdriver, flathead screwdriver, adjustable
pliers or wrench, stepladder, wire cutters, and rated
electrical tape

4. Hanging Bracket Installation.

Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch is
turned to the OFF position.
WARNING: Failure to disconnect power supply
prior to installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be
sure the outlet box is securely attached to the building
structure and can support the full weight of the fan.
Ensure outlet box is clearly marked "Suitable for Fan
Support." If not, it must be replaced with an approved
outlet box. Failure to do so can result in serious injury.
CAUTION: Be sure outlet box is grounded properly
and that a ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided
with new or original outlet box.* Arrange electrical
wiring around the back of the hanging bracket and
away from the hanging bracket opening.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as this
will support the fan.
blade edge
30
inches
(76 cm)
7 feet
(2.13 m)
downrod
installation
hanging bracket
flat washers
spring washers
outlet box screws
page 5
8ft. - 10ft.
(2.44 m - 3.05m)
flushmount
installation
Vaulted ceiling
angle is not to
exceed 25 degrees.
