6. Wiring.

WARNING: Turn off circuit breakers to current
fixture from breaker panel and be sure switch is
turned to the OFF position.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code
(or Canadian Electrical Code). If you are unfamiliar
with electrical wiring or if the house/building wires are
different colors than those referred to in the diagram
to the right, please use a qualified electrician.

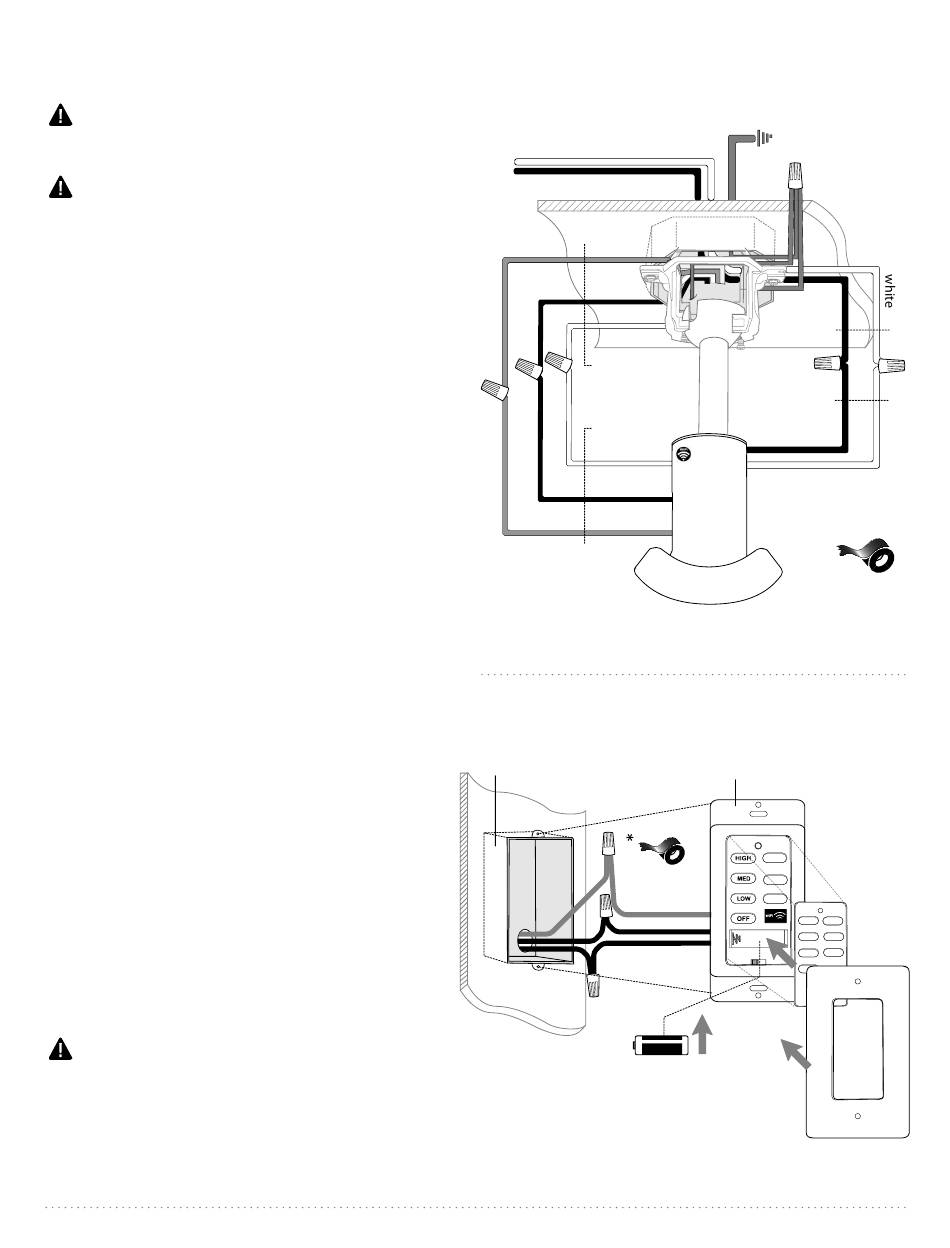

When downrod is secured in place on the hanging
bracket, wire the RECEIVER with wire connectors
provided as shown in diagram at right.
Tip: While you are wiring, keep in mind that wires
must not obstruct receiver from sliding into
hanging bracket.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
Gently insert receiver (flat side up) into hanging
bracket and carefully push wires and taped wire
connectors into outlet box. Let antenna rest outside
of hanging bracket.
[PLEASE NOTE: Wall and/or handheld remote
control must be used for fan to operate. If you do
not wish to use the wall control, please proceed to
Section 7 on the following page to continue with fan
installation.]
To install wall control, remove existing wall
switch. Wire one of the wall controls with wire
connectors provided as shown in diagram at
right.
*Wrap each wire connector separately with
electrical tape as an extra safety measure. Gently
push wires and taped wire connectors into outlet
box.
Install one 12-volt battery (included) in wall
control.
IMPORTANT: Wall control will not function unless
battery is installed.
WARNING: Battery is to be inserted with the
correct polarity.
Select a faceplate (almond or white) and press firmly
onto front of wall control. Attach wall control to
outlet box and secure with screws from original wall
switch. Attach wall plate (included) to wall control
using 2 screws provided with the wall control.
white supply wire
black supply wire
blue
black
white
from fan
from receiver
white
black
blue
(wiring for receiver)
outlet box
green/ green/ green/
bare bare bare
ground ground
ground
black (OUT to fan)
black
black
(TO POWER supply)
black
(AC IN from
breaker box)
12V battery
(wiring for wall control)
page 8
ground (green
or bare)
ground (green
black
from ceiling
from receiver
black
AC IN L
white
AC IN N
receiver
wall control
LIGHT LIGHT
CCT CCT
green
or bare)
*
face-
plate
wall plate
