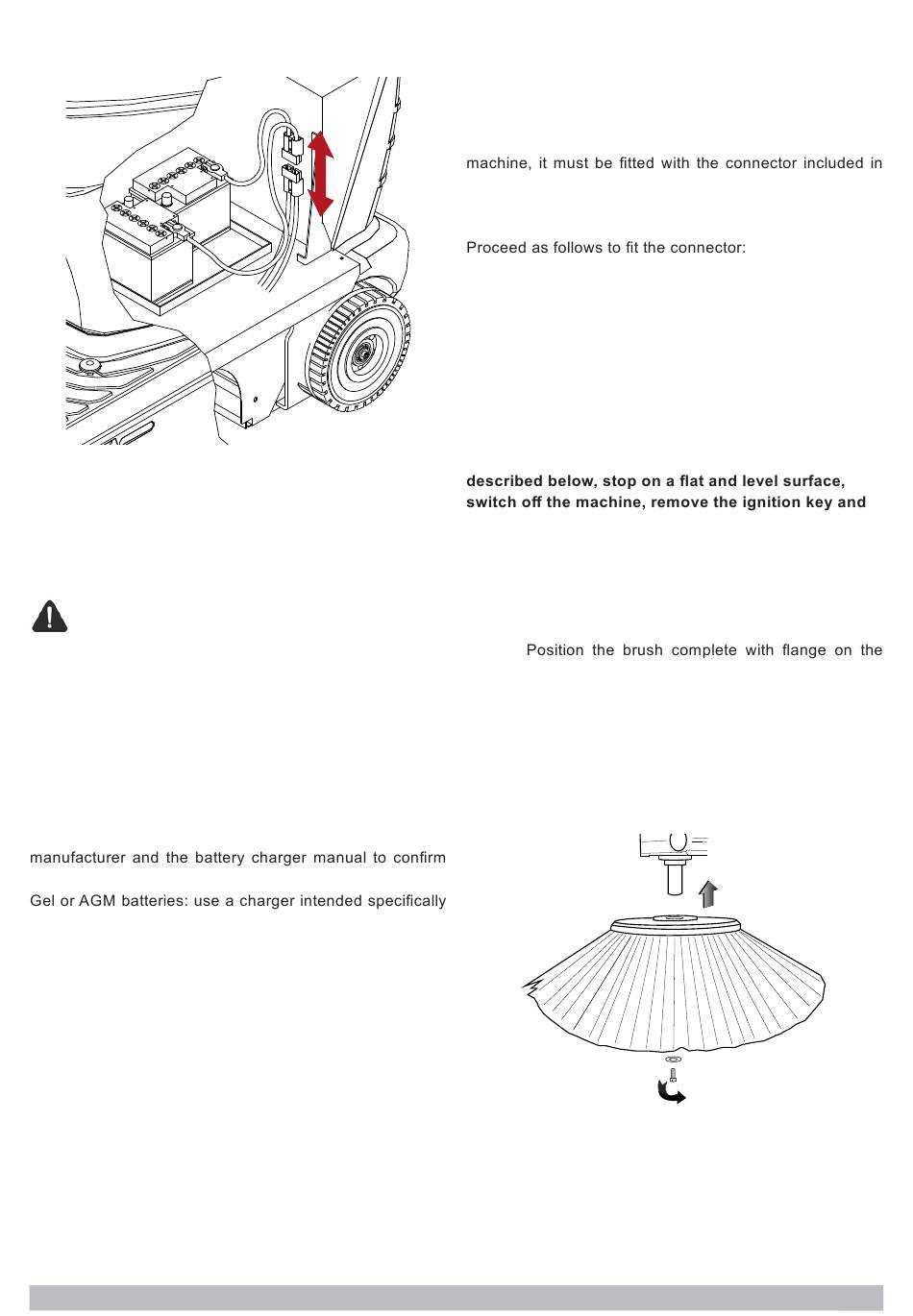

Plug the battery connector into the machine
Return the seat cowling to the working position.
When using the machine, follow the instructions below.
Choosing OFF-BOARD battery charger
! DANGER: use a battery charger with CE
marking that is in compliance with product
standard (EN 60335-2-29), equipped with
double insulation or reinforced insulation
between input and output and with SELV type
output circuit.
! ATTENTION: check that the battery charger is
compatible with the batteries being charged.
Tubular lead acid (WET) batteries: the use of an electronic
battery charger is recommended; in any event, consult the
the suitability of the external battery charger.
for the type of battery.
Preparation of OFF-BOARD battery charger
! ATTENTION: authorized service technician required
to perform this procedure.
When using a battery charger not provided with the
the machine equipment package.
The connector supplied for the external battery charger is
compatible with cables of maximum cross-section 16mm
Remove around 13 mm of the protective sheath from the
red and black conductors of the battery charger cable;
Attach the ends to the contacts of the connector and
squeeze forcibly with suitable crimping pliers;
Make certain the polarity is correct (red + black –) when
attaching the wires to the connector.
Fitting the side brush
! ATTENTION: before carrying out the operations
apply the parking brake.
Assembly:
- Undo the screw on the motor shaft.
- Check that the drive key is located in the keyway
of the motor shaft.
-
motor shaft.
- Retighten the clamp screw.
Disassembly:
- Repeat the steps described above in reverse
order.
