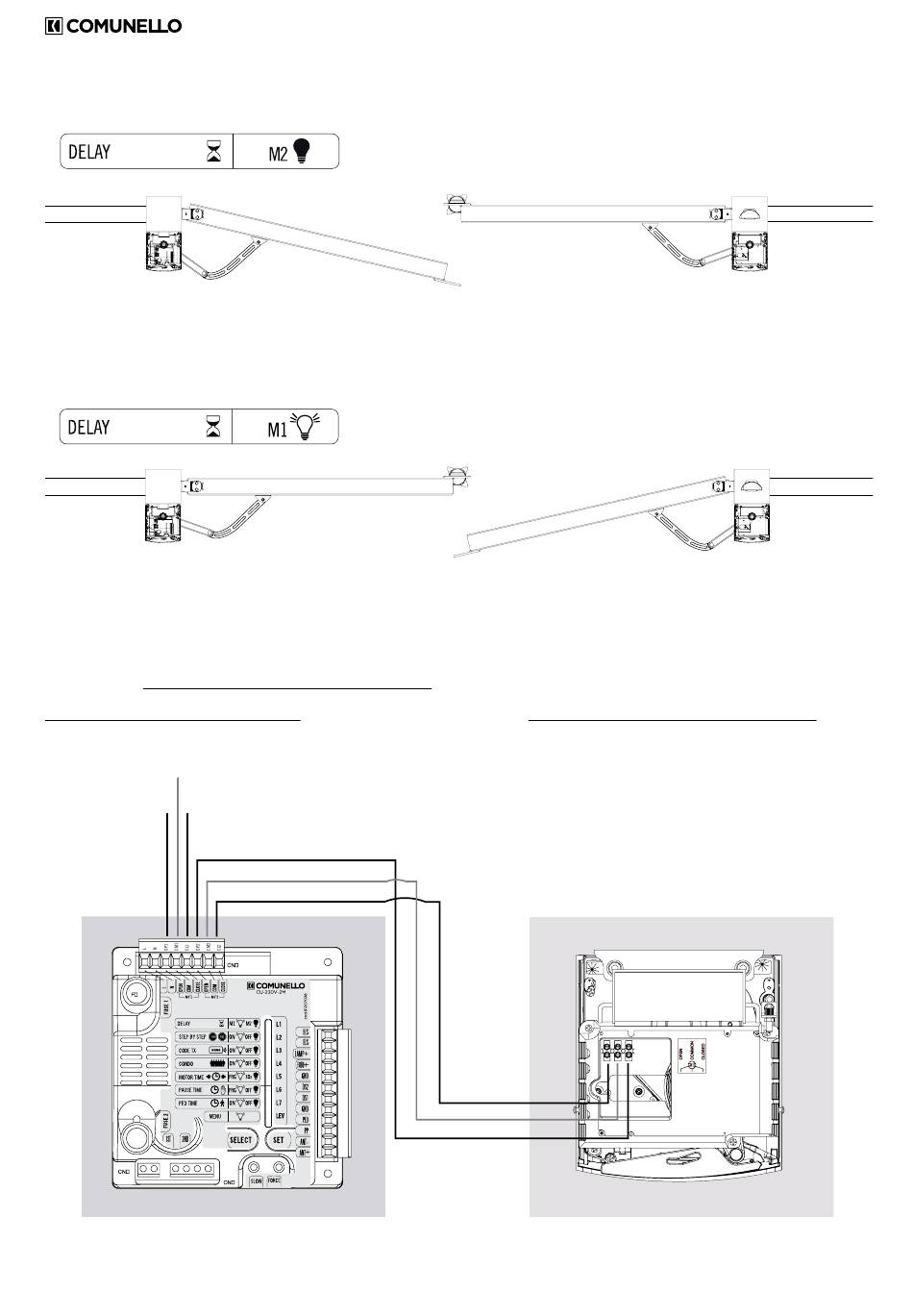

CONDOR - connection diagram of the motors [1/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
• DELAY LED ON = DELAY OF THE MOTOR n.1
1
Configuration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 WITH CONTROL UNIT (on the left)
BLACK with OP1

COMMON with CM1

BROWN with CL1
Blue
Black Brown
F2
8
COMUNELLO ®Copyright 2014 - All right reserved
CN2
ELS
ELS
LAMP
FOT+
GND
DS2
DS1
GND
PED
PP
SEL SET
ANT-
ANT+
MOTOR n.2 WITHOUT CONTROL UNIT (on the right)
OPEN with CL2

COMMON with CM2

CLOSED with OP2
2
2
