ASSEMBLY

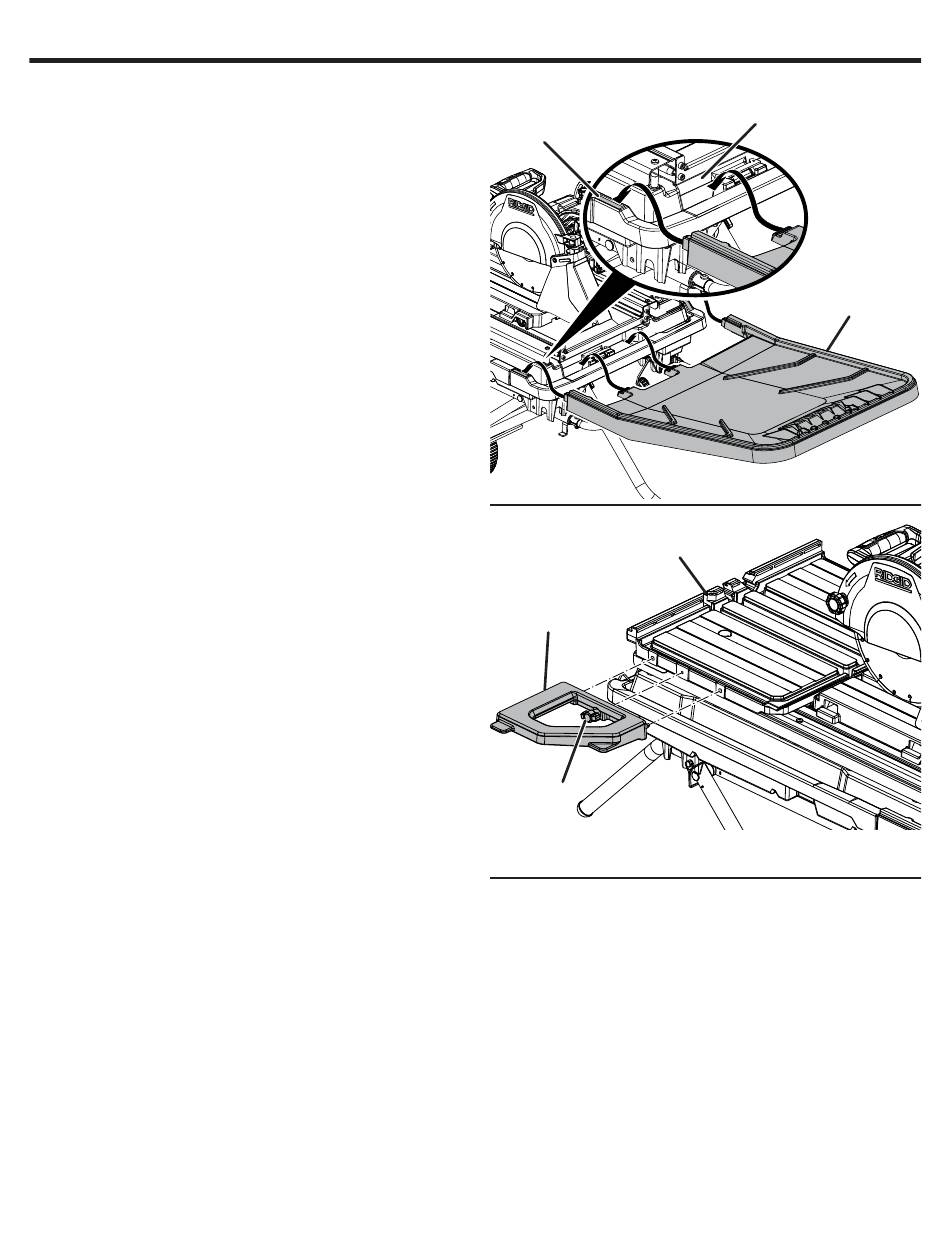

INSTALLING THE REAR WATER TRAY
EXTENSION
See Figure 29.
 Standing at the back of the saw, hold the rear water tray
extension with the tray tabs pointing toward the slots in
the water tray.
 Tilt the tray up and slide the tray tabs into the slots.
 Once the rear water tray extension slides into place, lower
until the tray hooks fit underneath the base.
INSTALLING SLIDING TABLE EXTENSION
See Figure 30.
 From the side of the saw, align the pins on the sliding
table extension with the holes in the frame.
 Secure in place by turning the table extension lock knob
underneath the extension clockwise.
SLOT
SLIDING TABLE
EXTENSION
TABLE
EXTENSION
LOCK KNOB
19 — English
WATER TRAY
FRAME
SLIDING TABLE
WATER TRAY
EXTENSION
Fig. 29
Fig. 30
