Torch Body Maintenance

• Inspect O-rings daily and replace if damaged or worn.
• Apply a thin coat of silicone grease to O-rings before assembling torch. This facilitates easy future
assembly and disassembly for service.
• O-ring [1.61" (41mm) I.D. x .07" (1.8mm) BUNA-70A] p/n 996528.
WARNING
• Keep electrical contract ring contact points free of grease and dirt.
• Inspect ring when changing nozzle.
• Clean with cotton swab dipped in isopropyl alcohol.
156
Maintenance/troubleshooting
ELECTRIC SHOCk CAN kILL!
BEFORE PERFORMING TORCH MAINTENANCE:
• Turn power switch of the Plasma Console console to the OFF position.
• Disconnect primary input power.

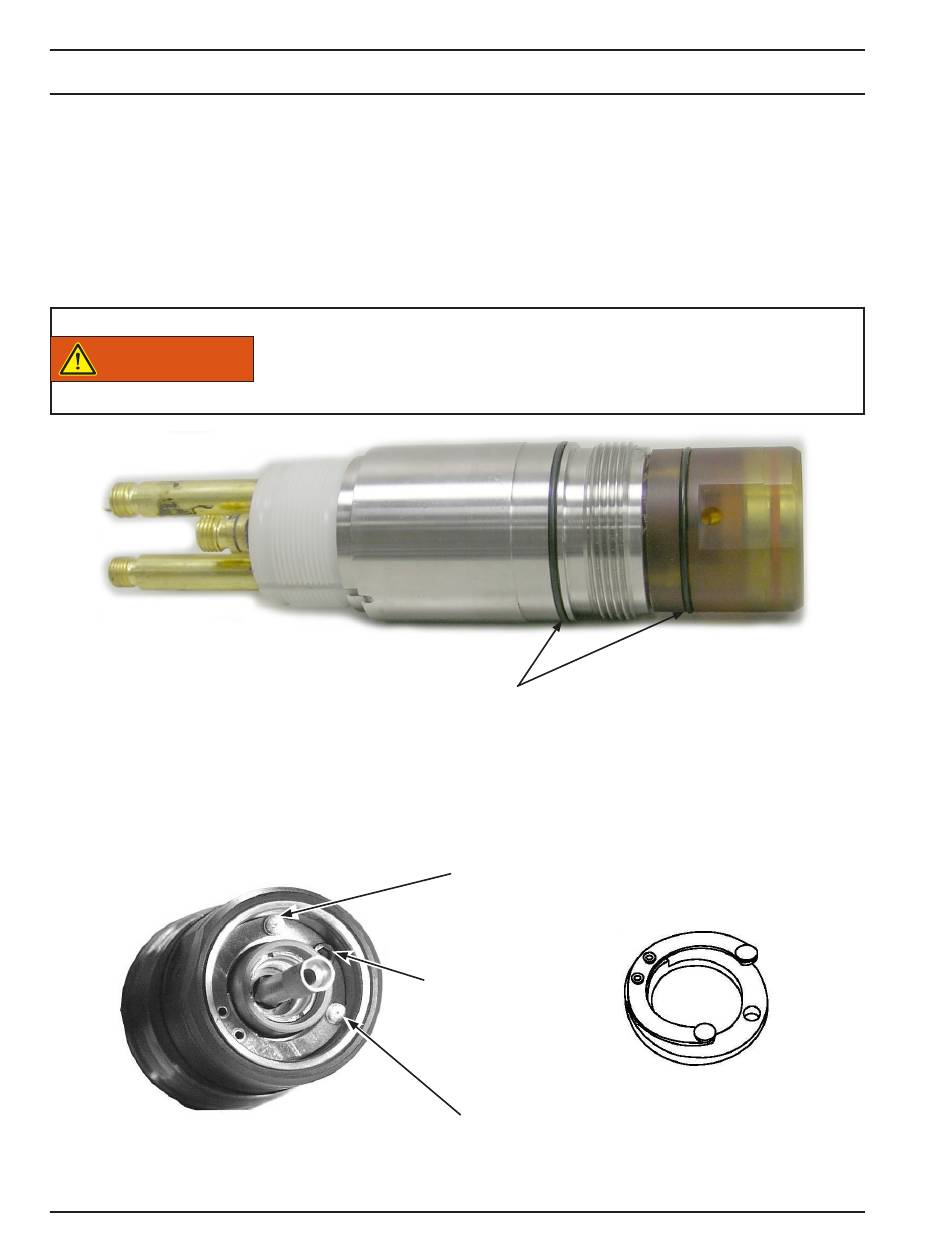

O-Ring locations
Contact Ring Screw
Contact Ring Points
Contact Ring Points
Contact Ring
