Setting and using method

3. Setting the desired temperature

n When setting the desired temperature of the Dry contact For
Economizer
: When operating the indoor unit, set the desired temperature according to the TEMP_SW setting.
When the indoor unit is unlocked, the desired temperature can be reset by other controller.

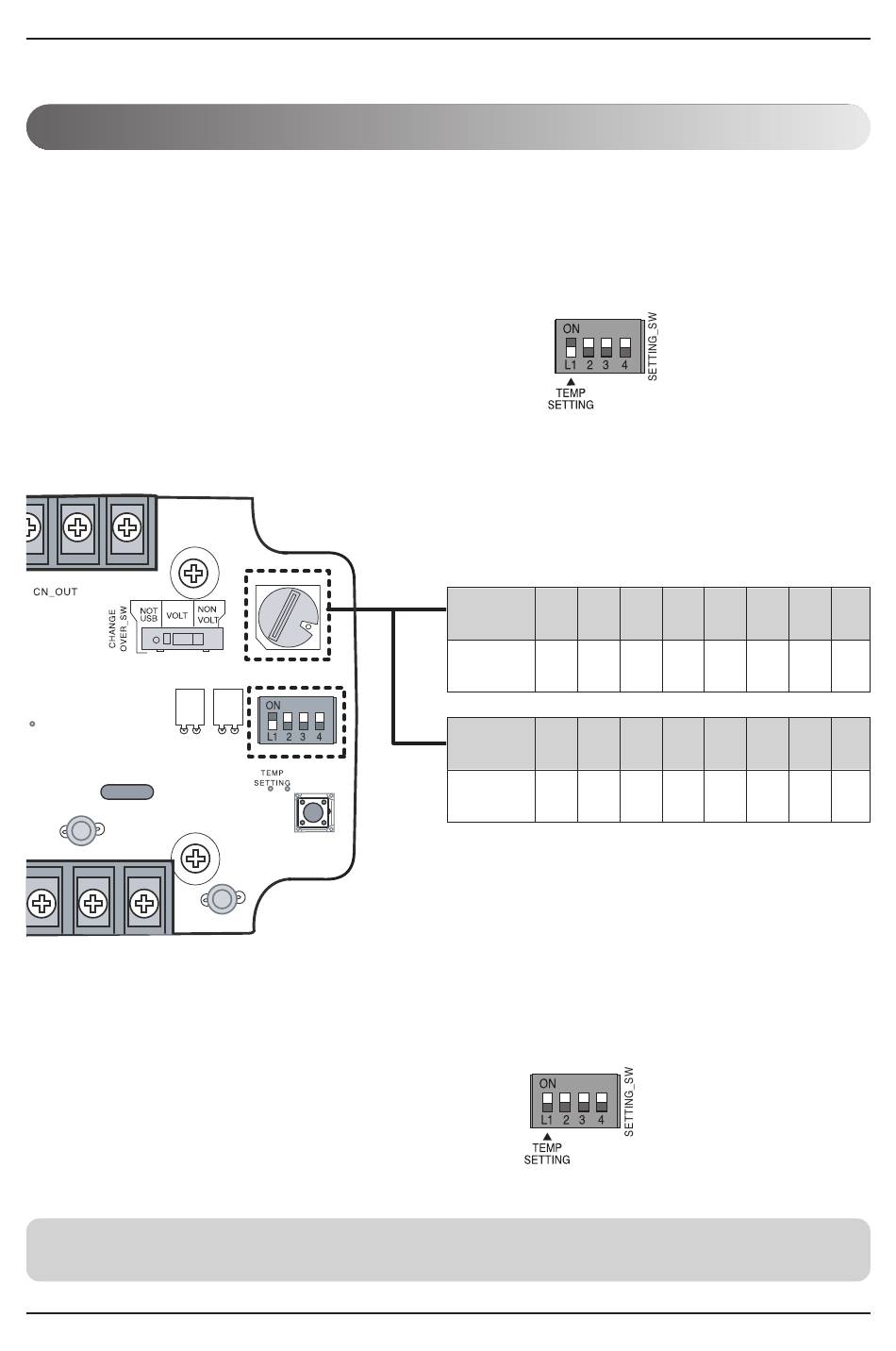

1) Turn on the TEMP_SETTING switch of SETTING_SW.
2) Use the TEMP_SW to set the temperature as shown below.
n When not using the desired temperature setting of Dry
contact For Economizer
1) Turn off the TEMP_SETTING switch of SETTING_SW.
Ú When operating the indoor unit initially with Dry contact For Economizer, set the desired temperature
to 18℃(64℉).
12 Dry contact For Economizer
Desired temperature setting table
TEMP SW
0 1
setting
Temperature
18(64) 19(66) 20(68) 21(70) 22(72) 23(74) 24(76) 25(77)
setting °C(°F)
TEMP SW
8 9
setting
Temperature
26(78) 27(80) 28(82) 29(84) 30(86) 30(86) 30(86) 30(86)
setting °C(°F)
2 3 4 5 6
A B C D E
7
F
