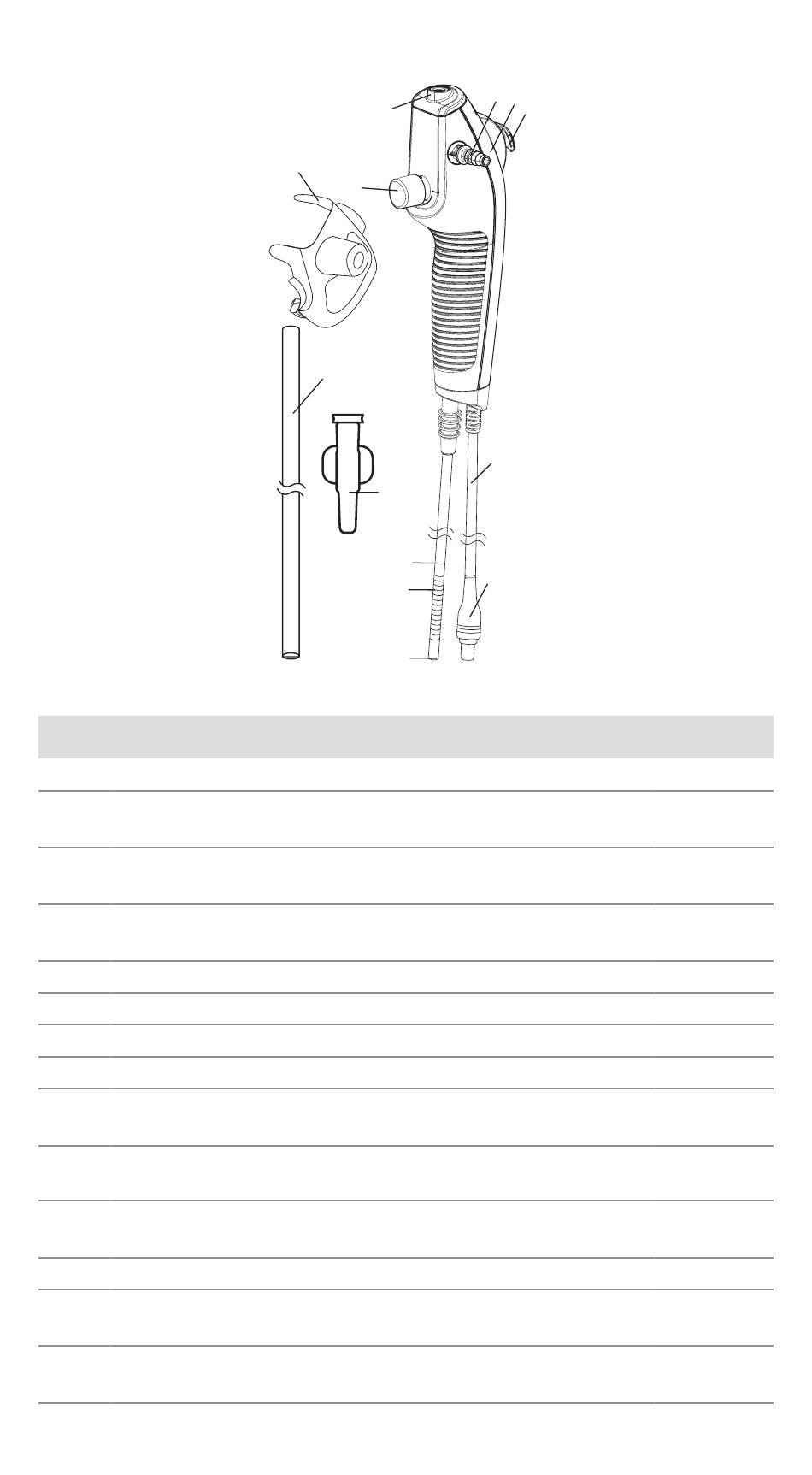

2.2. Endoscope Parts
No. Part
1 Handle
2 Control lever
3 Working
channel port
- Working channel
4 Suction connector
5 Suction button
6 Insertion cord
7 Bending section
8 Distal end
6-7-8 Insertion portion
9 Connector on the
endoscope cable
10 Endoscope cable
11 Handle protection
12 Protection pipe
6
3
11
5
12
13
6
7
8
Function
Suitable for left and right hand
Moves the distal tip up or down in
a single plane
Allows for instillation of fluids and insertion
of endoscopic accessories
Can be used for instillation of fluids, suction
and insertion of endoscopic accessories
Allows for connection of suction tubing
Activates suction when pressed down
Flexible airway insertion cord
Manoeuvrable part
Contains the camera, light source (two
LEDs), as well as the working channel exit
The ensemble of insertion cord, bending
section and distal end
Connects to blue socket on the monitor
Transmits the image signal to the monitor
Protects the suction connector during
transport and storage. Remove before use.
Protects the insertion cord during transport
and storage. Remove before use.
4 1 2
10
9
Material
MABS
POM
MABS +
Silicone
PU
MABS
MABS
PU
PU
Epoxy
See above
PVC
PVC
PP
PP
