ASSEMBLY

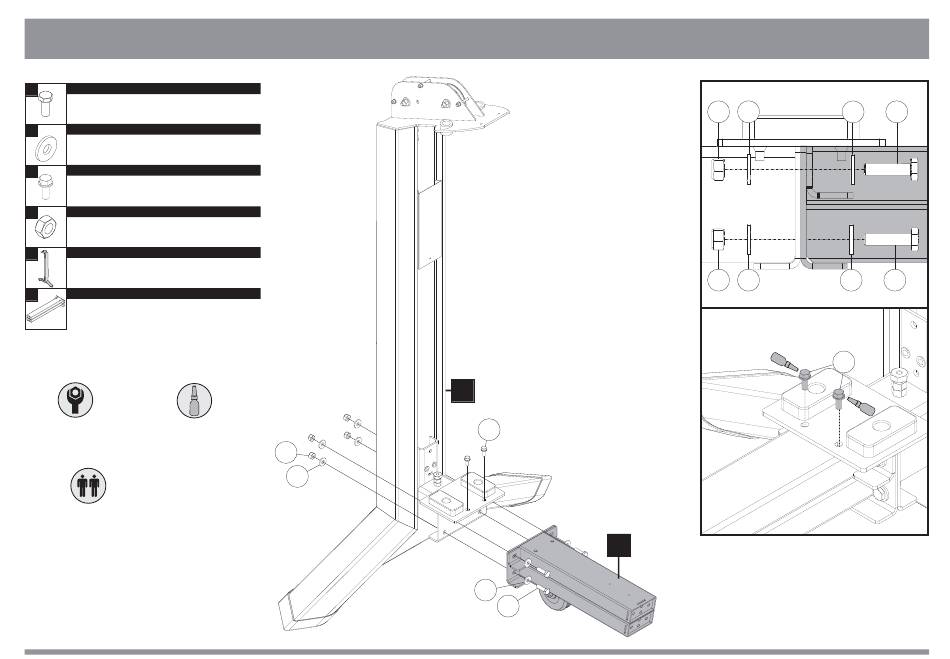

STEP 1 - MOUNTING OF THE CONNECTOR BAR
1
NAME
Hex Head Screw
M10X35
2
NAME
Flat Washer
M10
3
NAME
Head Screw Hex Flanged
M8X20
4
NAME
Insert Hex Nut
M10
A
NAME
Tower
B
NAME
Linking bar
1 - Mount the connecting rod (B) on the
tower (A)
Tools
Thread Lock Adhesive
Fixed Wrench 17 mm
Medium Torque
Fixed Wrench
13 mm
Pfor this assembly,
we recommend it be
done by two people
Qty
4x
Qty
8x
Qty
2x
Qty
4x
Qty
Qty
4
2
A
3
B
2
1
15
4
2
2
1
4
2
2
1
3
