SECTION 4—MAINTENANCE
Check ALL fasteners periodically to ensure that mechanical connections and
attaching hardware are tightened securely - otherwise injury or damage may occur.
DO NOT continue to use this product if problems are discovered. Corrective
maintenance can be performed at or arranged through your equipment supplier.
Maintenance MUST be performed ONLY by qualified personnel.

Replacing Upholstery

NOTE: For this procedure, refer to FIGURE 4.1.
1. Remove the back cushion from the back
frame. Refer to Installing/Removing
the Propel Back Cushion on page 13.
2. Unzip the upholstery on the back of the
cushion.
3. Remove the foam from the upholstery.
4. Install the foam into new upholstery.
5. Zip the new upholstery.
6. Install the cushion to the back frame.
Refer to Installing/Removing the
Propel Back Cushion on page 13.

Replacing Cushion

NOTE: For this procedure, refer to
FIGURE 4.1.
1. Remove the back cushion from the back
frame. Refer to Installing/Removing
the Propel Back Cushion on page 13.
2. Unzip the upholstery on the back of the
cushion.
3. Remove the foam from the upholstery.
4. Install the new cushion into the cover.
5. Zip the cover.
6. Install the back cushion to the back
frame. Refer to Installing/Removing
the Propel Back Cushion on page 13.
Part No 1143199
WARNING
Upholstery
Foam

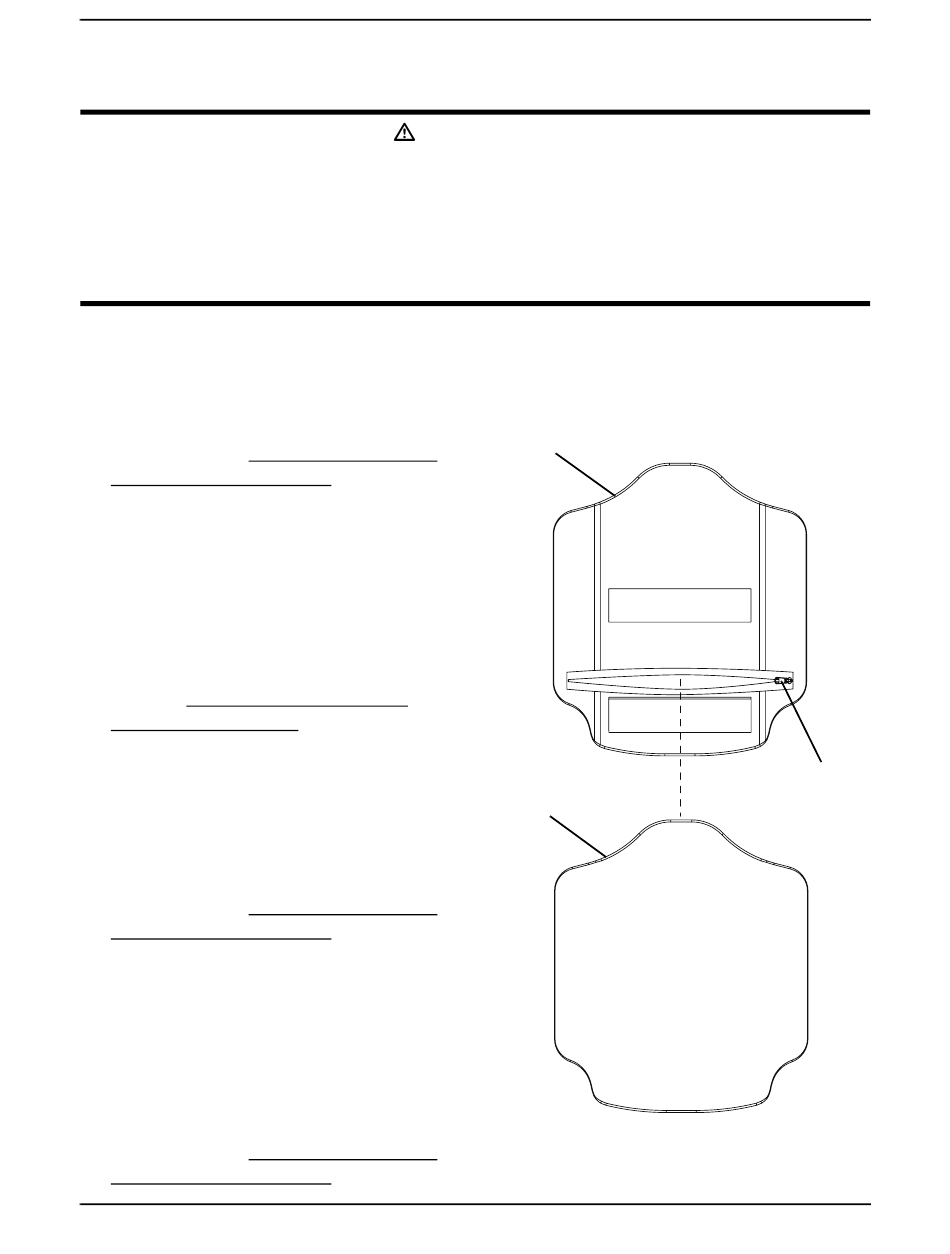

FIGURE 4.1 Replacing Upholstery -
