ASSEMBLY INSTRUCTIONS
NOTE: The drawings on pages 7 - 9 are applicable for both mounting options, 4a and 4b.

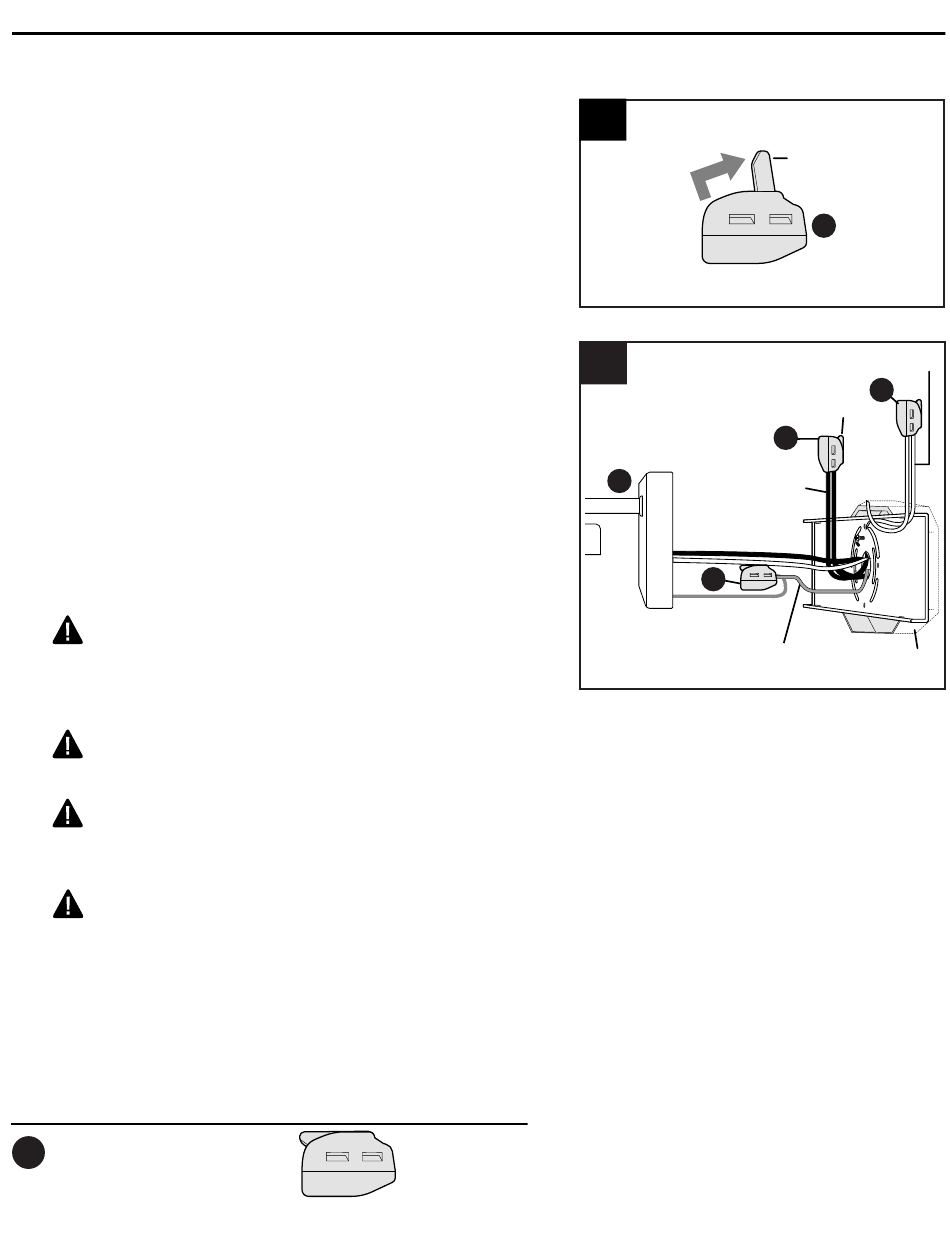

5a. IMPORTANT: Each wire connection below must be
made by firmly raising the levers on each lever wire
connector (AA), as shown in Fig. 5a. Then, ONE
wire is inserted into each opening of the lever wire
connector (AA). [Once a wire is inserted, that lever
may be returned to its original position.]
Unwrap BARE fixture wire from BLACK and WHITE
5b.
fixture wires.
Prepare wires by stripping 3/4 in. of insulation from
wire ends using wire strippers (not included). Insert
BARE/GREEN ground wire from outlet box and
BARE ground wire from fixture (A) into openings in
lever wire connector (AA). Insert WHITE wire from
fixture (A) and WHITE wire from outlet box into
openings in lever wire connector (AA). Insert BLACK
wire from fixture (A) and BLACK wire from outlet box
into openings in lever wire connector (AA).
WARNING: In order for wire connections to be
secure, the levers on all lever wire connectors (AA)
must be completely returned to their original
position.
WARNING: Never connect ground wire to
WHITE or BLACK power supply wires.
WARNING: GENTLY pull on wires in each lever
wire connector (AA) to confirm the lock is engaged
and that wires are secure.
WARNING: To reduce the risk of fire, electrical
shock or personal injury, lever wire connectors (AA)
are designed to accept only one 12-gauge house
wire and one lead wire from the light fixture. If your
house wire is larger than 12-gauge or there is more
than one house wire to connect to the corresponding
fixture lead wires, consult an electrician for the
proper size lever wire connectors to use.
Hardware Used
Lever Wire Connector
AA
5a
5b
A
x 3
7
Lever
AA
AA
LEVER
AA
BLACK
AA
BARE
/GREEN
WHITE
Outlet
Box
