PRODUCT SPECIFICATIONS
Blade Arbor .............................................................. 5/8 in.
Blade Diameter ......................................................8-1/4 in.
Blade Tilt ................................................................. 0˚ - 45˚
Input .......................................................................18 V DC
MITER
GAUGE
FRONT
RAIL
RIP
SCALE
BEVEL
LOCKING LEVER
SWITCH
ASSEMBLY
HEIGHT/BEVEL
ADJUSTING
HANDWHEEL
BEVEL
INDICATOR

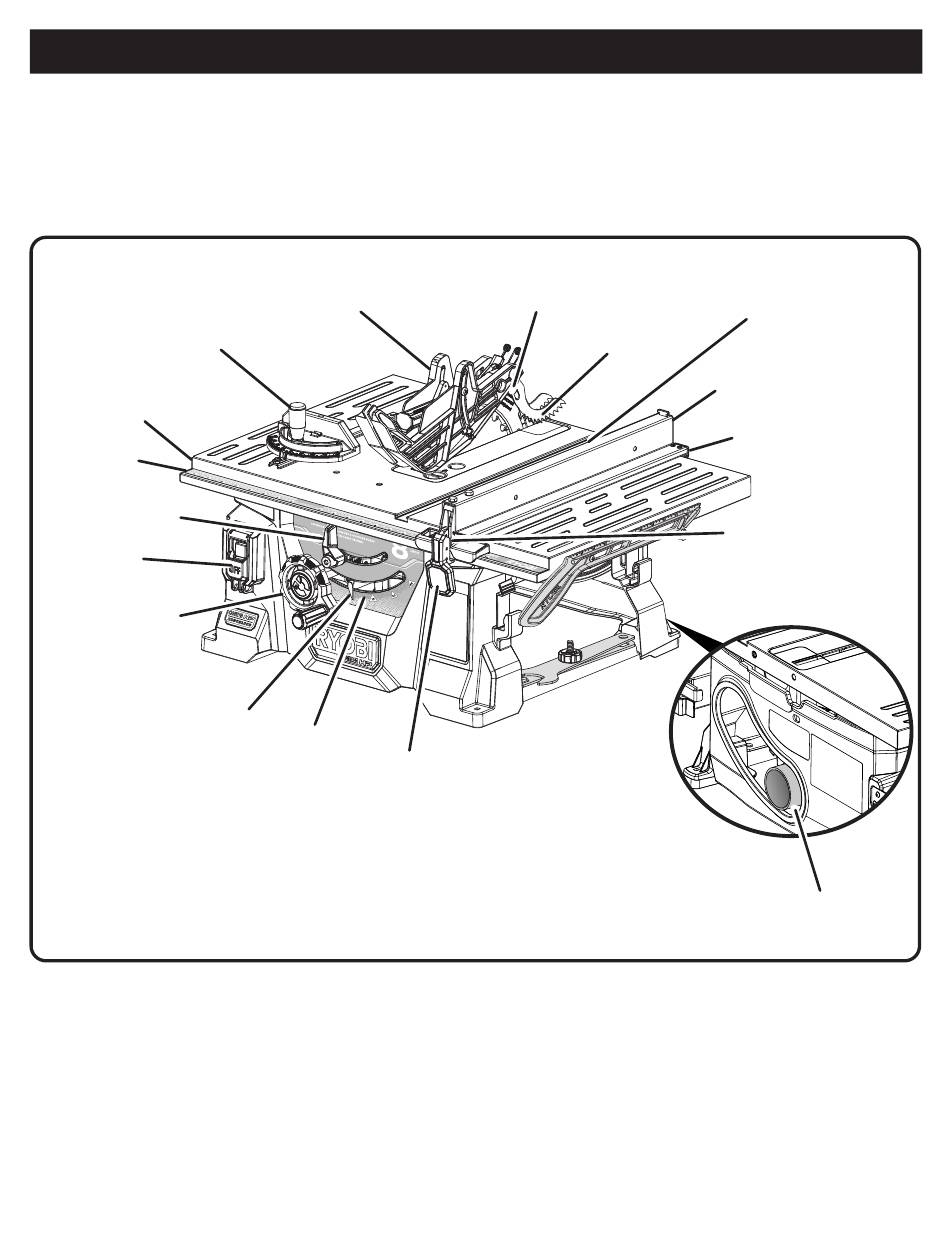

KNOW YOUR TABLE SAW
See Figures 2 - 3.
The safe use of this product requires an understanding of
the information on the tool and in this operator's manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
ACCESSORY STORAGE - Convenient storage areas for
the push stick, riving knife, wrenches, blade guard, miter
gauge, and rip fence are located underneath the saw table.
FEATURES
BLADE
GUARD
BEVEL
SCALE
LOCKING
LEVER
9 - English
No Load Speed ..............................up to 4,500/min (RPM)
Cutting Depth at 0˚ ................................................2-1/4 in.
Cutting Depth at 45˚ ..............................................1-3/4 in.
RIVING
KNIFE
ANTI-KICKBACK
PAWLS
ANTI-KICKBACK PAWLS - Kickback is a hazard in which
the workpiece is thrown back toward the operator. The teeth
on the removable anti-kickback pawls point away from the
workpiece. If the workpiece should be pulled back toward
the operator, the teeth dig into the wood to help prevent or
reduce the possibility of kickback. The anti-kickback pawls
may be bypassed.
BEVEL LOCKING LEVER - This lever, placed just under the
saw table surface on the front of the saw, locks the angle
setting of the blade.
MITER GAUGE
GROOVE
RIP
FENCE
LOW
FENCE
RIP SCALE
INDICATOR
DUST
CHUTE
Fig. 2
