Thinklink Connection - optional mobile adapter

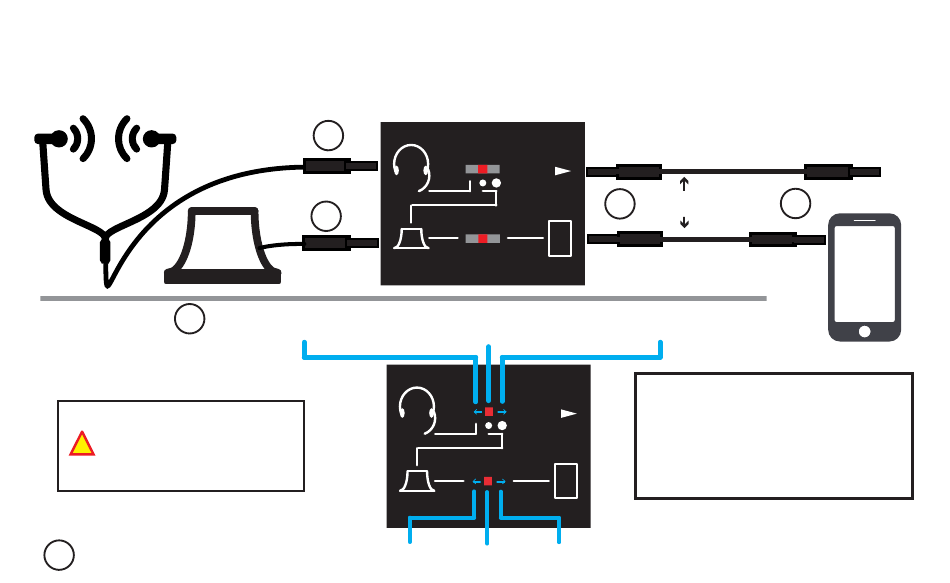

Thinklink connects your Thinklabs One to other devices such as mobile phones/tablets or computers.
Connect to the jacks as shown below, using the cables provided with your One. This is an optional
adapter and your device may include a different adapter or cables.
3
SOURCE switch - Selects which audio source is sent to outputs on right:
Please see Caution
!
section of this Manual
for safety information.
4
MONITOR sound on Headphones from: Stethoscope | Both | Headset jack on Mobile/PC
1
2
Headset Mic | Stethoscope (low level) | Stethoscope (high level)
SOURCE
5
MONITOR
SOURCE
MONITOR
To Mic/Line/Aux
OR 6
•
Use low level to reduce
stethoscope signal level into
mobile/computer.
•
Use high level if stethoscope is
not too loud for mobile/computer.
