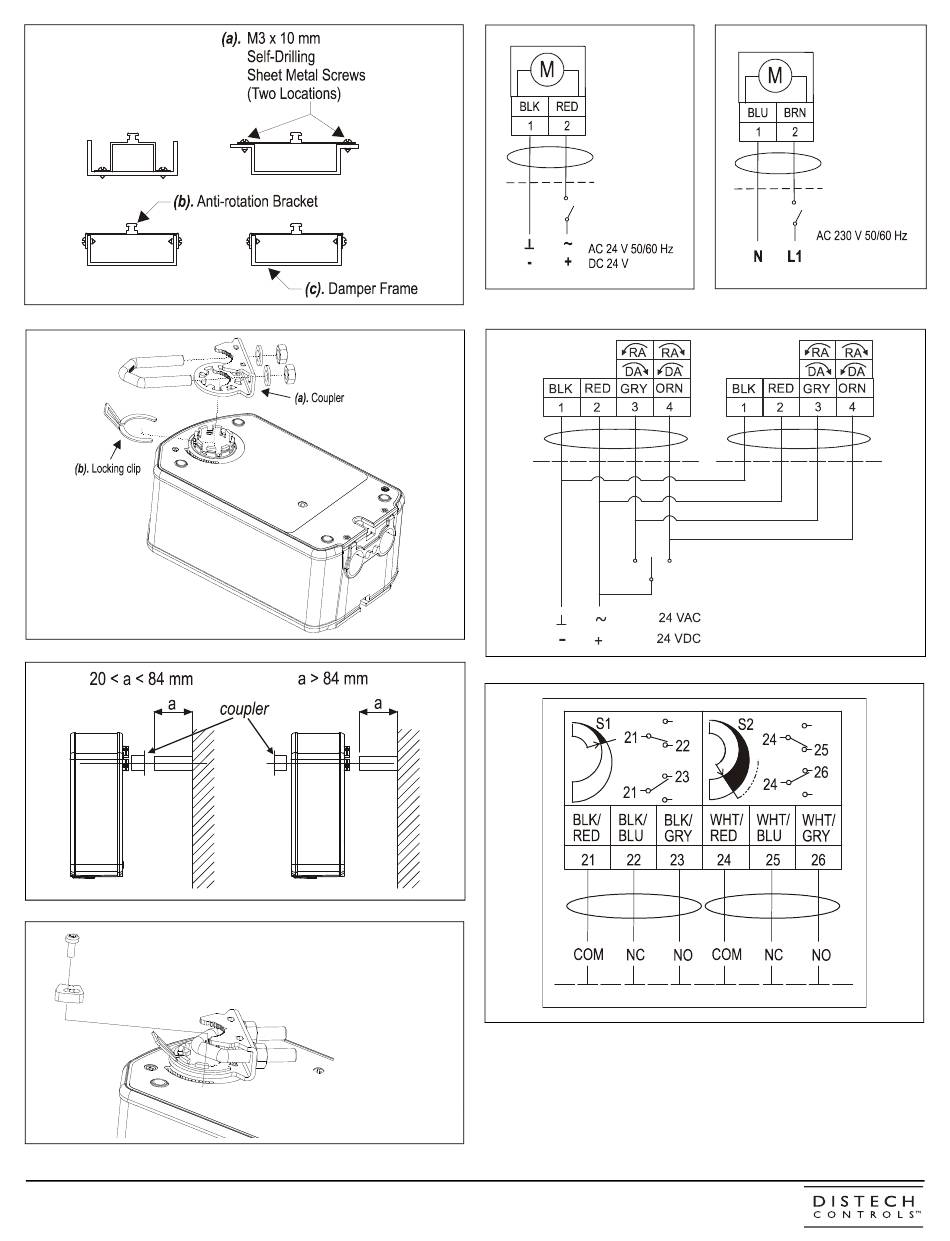

Figure 8: Control Wiring Diagram
Figure 7: Control Wiring Diagram
Figure 3: Fitting the Anti-rotation Bracket on the Damper Frame or Duct
DA-008S230DX / DA-008S230D2
DA-008S024DX / DA-008S024D2
Figure 4: Changing the position of the Coupler
Figure 9: Floating Control, Multiple Actuators with One Transformer
Figure 5: Allowed shaft length
Figure 10: Auxiliary switch wiring diagram (2S Model only)
Figure 6: Angle of rotation limiting
DA-008S230DX / DA-008S230D2 / DA-008S024DX / DA-008S024D2
