Adjusting the planting unit load

B
UN41 0215DH

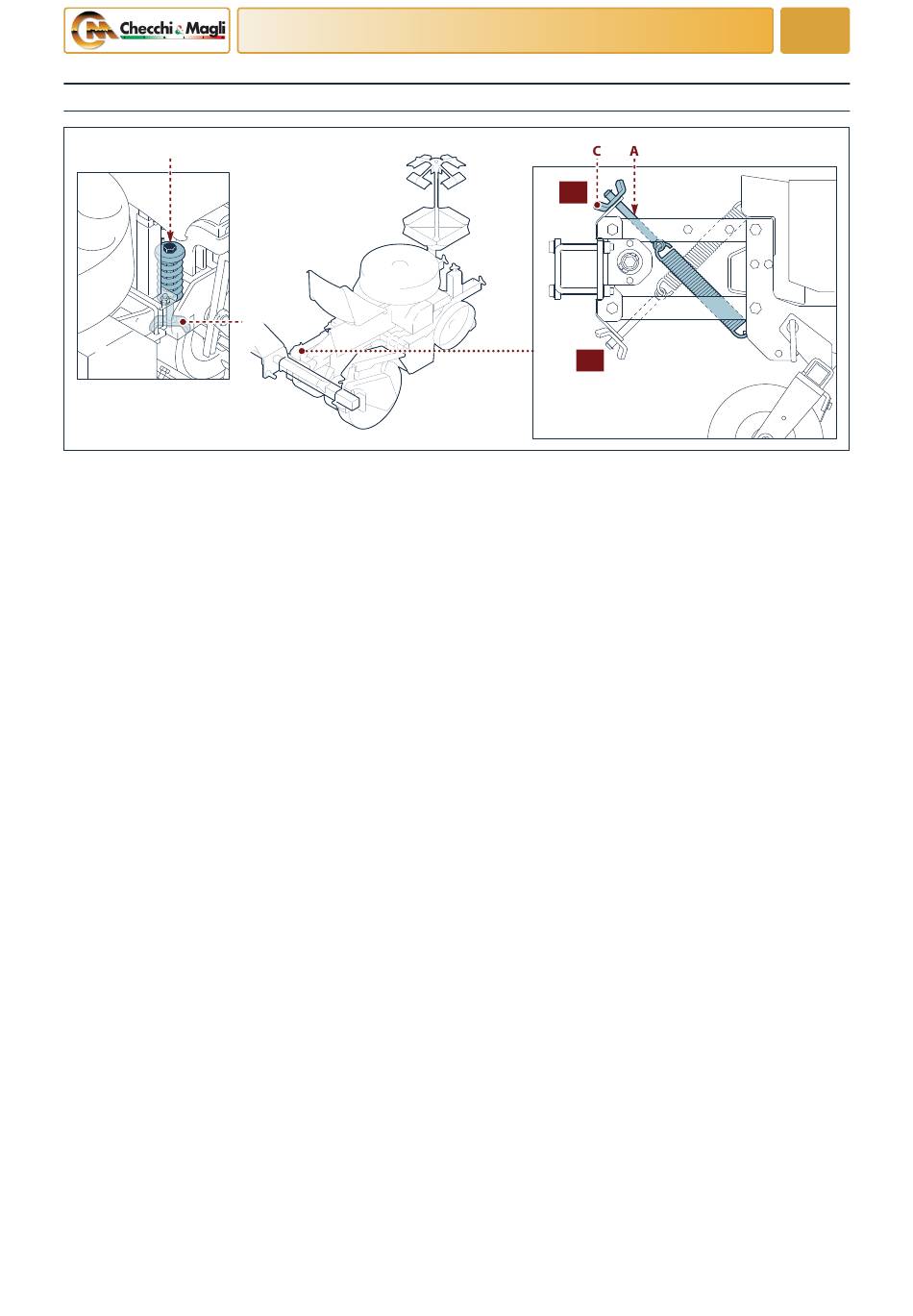

The adjustment unit is usually mounted in position
(A1).
With the unit (A) in position (A1) the weight on the pack-
ing wheels can be reduced.
With the unit (A) in position (A2) the weight on the pack-
ing wheels can be increased.
The unit (B) enables to increase or decrease the weight
applied by the unit (A) to the packing wheels.
The weight (load) to be applied to the packing wheels
is obtained by the combined action of the adjustment
units (A) and (B).
English language
ADJUSTMENT INFORMATION
D
A1
A2
Proceed as outlined below.
1) As regards the position of the adjustment unit (A),
turn the handwheel (C) and the handwheel (D) to
apply the ideal weight to the packing wheels.
